Product Description

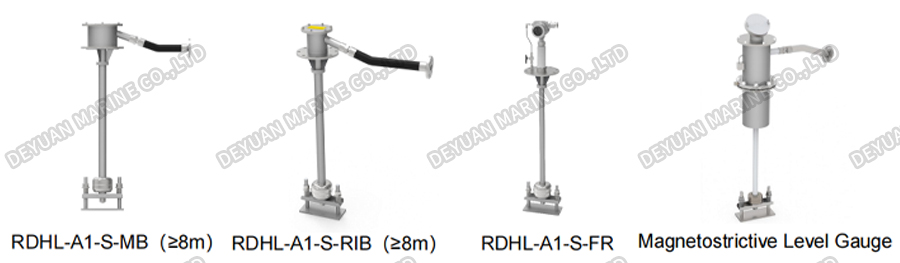

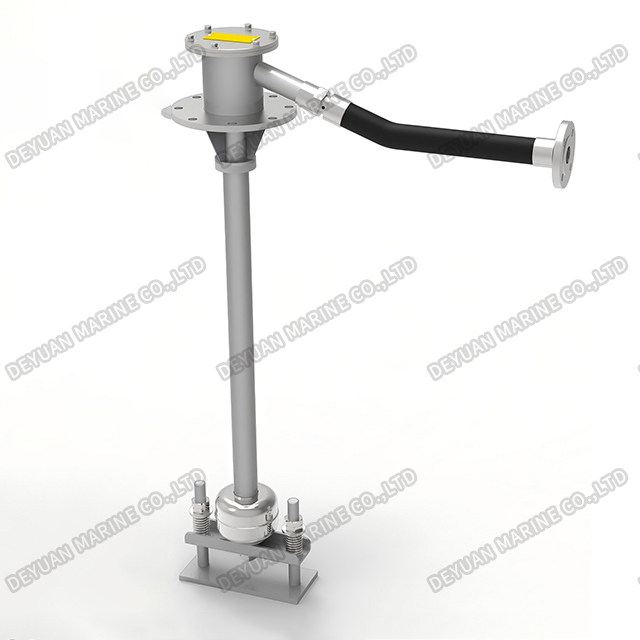

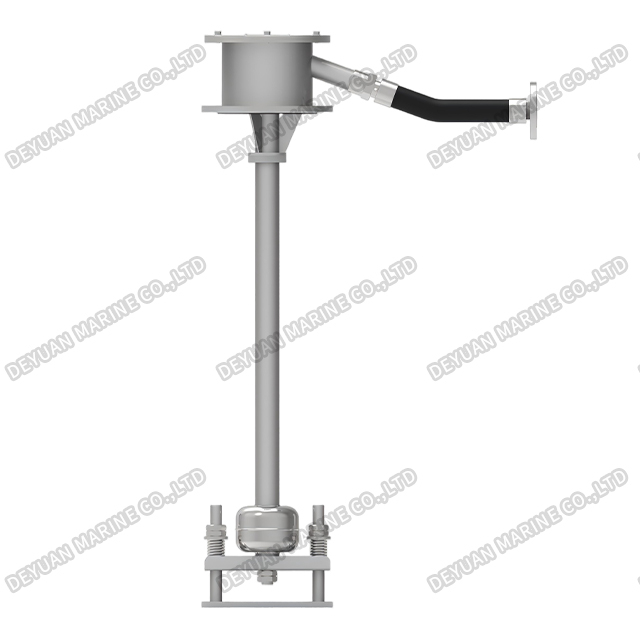

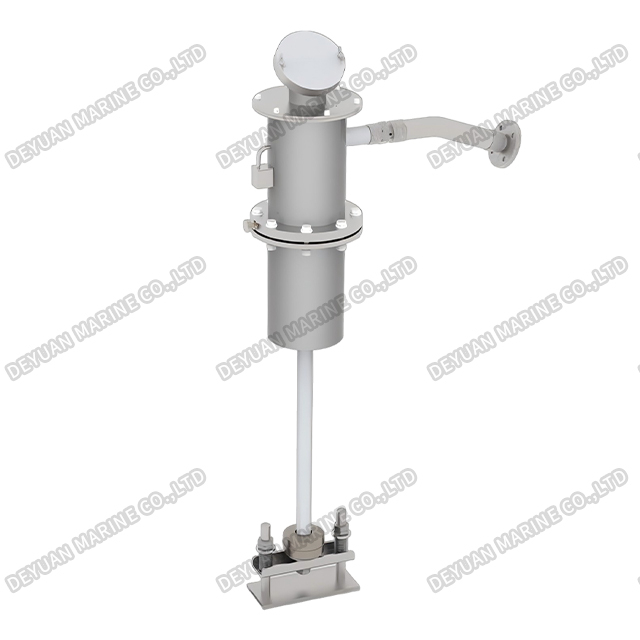

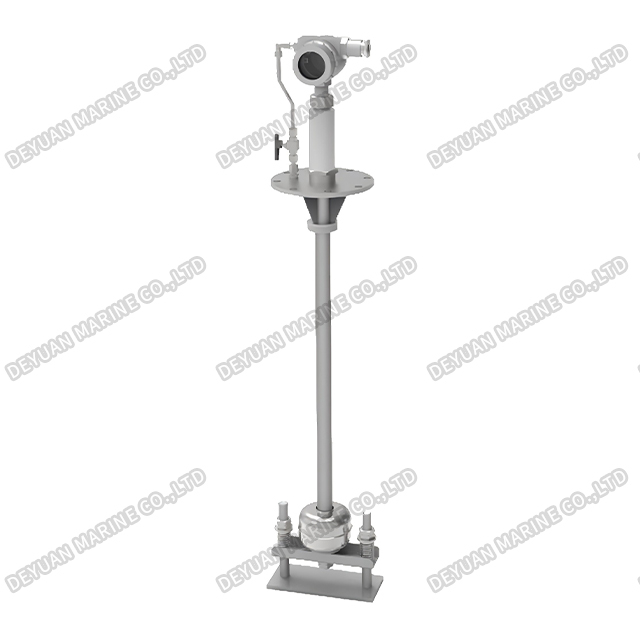

Marine Floater Type Level Transmitter
Product Introduction:
The floater type tank level transmitter can not only be used to measure the liquid level of ballast tanks, fuel tanks and cargo tanks, but also can integrate multi-point temperature and single-point pressure sensors to monitor the temperature and steam pressure in the tanks at the same time. All the information measured by this device can be displayed and alarmed on the computer, monitor and instrument completely.
The float-type liquid level measuring device can be equipped with built-in pressure and multipoint temperature sensors (optional) and can communicate with the upper computer.
Its main feature is easy maintenance, because the sensor of the detector is replaceable, so the maintenance and repair of crude oil tankers, refined oil tankers and chemical tankers become simple and easy. We can directly lift it to replace the floating ball without maintenance personnel drilling into the cargo tank for operation.
Main Technical Specification:
| Power supply | DC24V |
| Reed switch accuracy | ±2cm |
| Mag. accuracy | ±2mm |
| Blind zone | 100mm |
| Range | 0~30m |
| Ambient temperature | -25°C~+80℃ |
| Type approval | CCS, DNV-GL, NK, BV, RINA, ABS |
Characteristic:
*Monitor level, temperature and pressure at same time;
*Output signal:RS485; 4~20mA;
*Simple structure, firm and fully sealed design;
*High temperature, high pressure resistance;
*Anti-liquid fluctuation design;
*High reliability, electromagnetic compatibility design;
