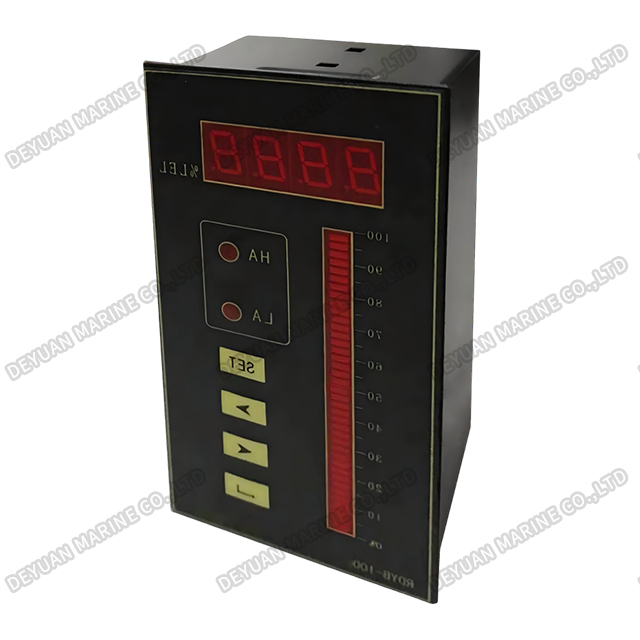

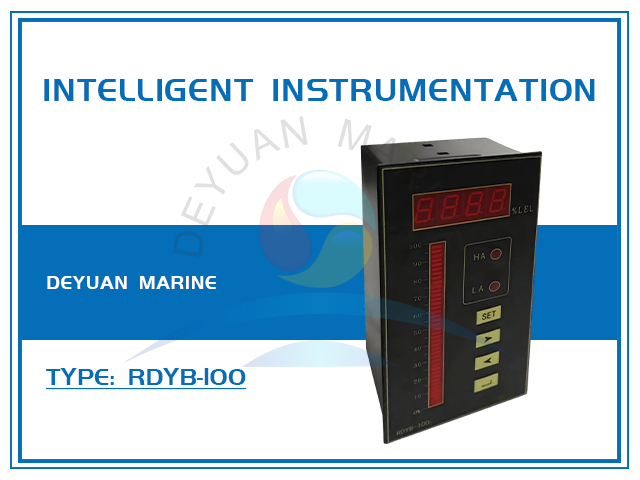

Marine RDYB-100 Intelligent Instrumentation

Marine RDYB-100 Intelligent Instrumentation

Product Introduction:

The RDYB-100 is a single-channel intelligent monitor designed to accept one 4-20mA analogue signal from any transmitter. It provides clear local display and configurable alarm outputs for parameters such as liquid level, pressure, temperature, and flow. Compact, reliable, and marine-grade, the RDYB-100 is ideal for engine rooms, cargo control stations, and bridge repeater panels where critical tank or line parameters require continuous monitoring and alarm notification.

Main Technical Specification:

Characteristic：

*RS485 communication interface, which can easily form various systems;

*Digital display with four-digit LED, and analog display with light column;

*The display table has the characteristics of high precision, high reliability and strong universality; *Classification society approval;

*Digitally adjust the set point, and the measuring range can be set at will;

*Microprocessor as the core, software for signal processing;

*With the functions of internal self-inspection and sensor fault judgment;
