Product Description

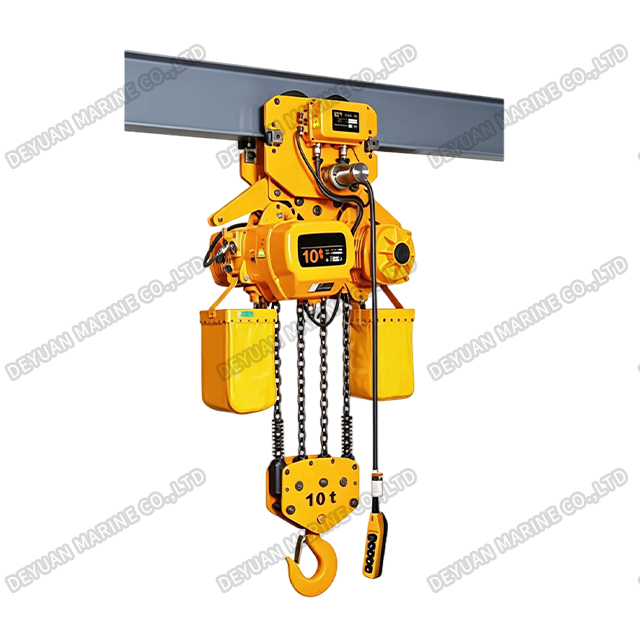

10t Electric Trolley Type Chain Hoist
Product Introduction:
Our 10T Hook Fixed Type Electric Chain Hoist is a powerful and durable lifting solution designed for heavy-duty applications where overhead runway or rail travel is not required. With a fixed suspension hook for simple attachment to a beam, gantry crane, or structural support, this hoist delivers reliable electric lifting for loads up to 10 tons.
Key Features:
1.Capacity – 10 tons, suitable for demanding lifting tasks in shipyards, factories, and warehouses.
2.Electric Trolley – Motorized horizontal movement along I-beams or overhead rails eliminates manual pushing. Travel speed is consistent and controllable via pendant or remote.
3.Electric Chain Hoist – Smooth, reliable vertical lifting with electromagnetic fail-safe brake for secure load holding.
4.Multi-Chain System – Typically configured with triple or quadruple chains to ensure even load distribution and safe operation at 10-ton capacity.
5.Single or Two-Speed Options – Available with single-speed for general use or dual-speed for precise load positioning.
6.Overload Protection – Prevents operation beyond rated capacity, enhancing safety.
7.Compact Design – Low headroom configuration allows installation in space-limited areas.

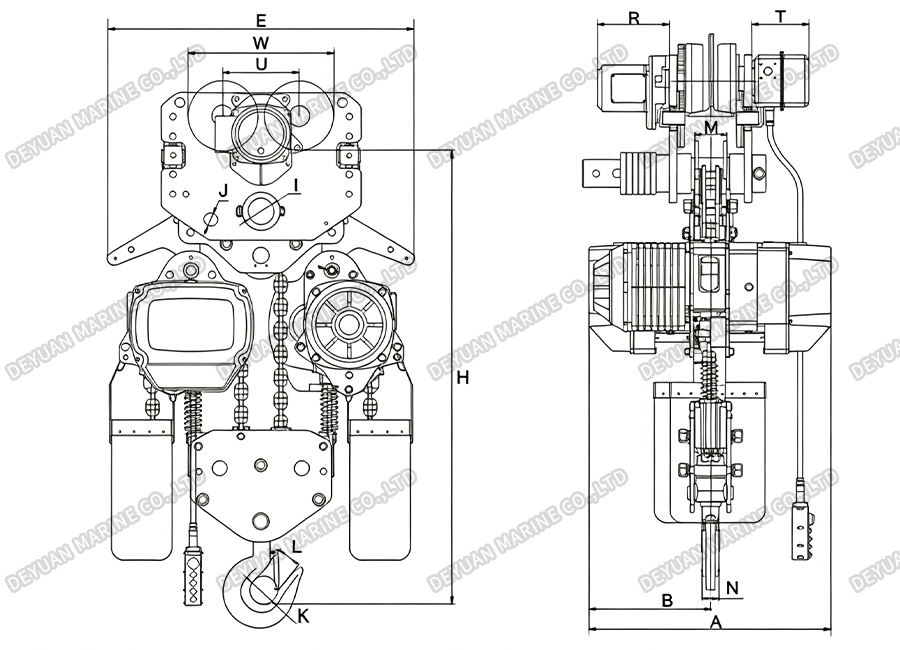

Drawing:
Technical Parameters:
| Type | HSY-10004S | HSY-10004D | |
| Capacity(t) | 10 | ||
| Standard Lifting Height(m) | 3 | ||
| Lifting Speed(m/min) | 2.7 | 2.7/0.9 | |
| Lifting Motor | Power(KW) | 3.0*2 | 3.0*2/1.0*2 |
| Rotation Speed (r/min) | 1440 | 2890/980 | |
| Phases | 3 | ||
| Voltage(V) | 200-440 | ||
| Frequency(Hz) | 50 | ||
| Operating Motor | Power(KW) | 0.75 | |
| Rotation Speed(r/min) | 1440 | ||
| Operating Speed(m/min) | 11/21 | ||
| Phases | 3 | ||
| Voltage(V) | 200-440 | ||
| Frequency(Hz) | 50 | ||
| Chain Turns | 4 | ||
| Chain Specification | φ11.2 | ||
| I-Beam(mm) | 150-220 | ||
| Test Load(t) | 12.50 | ||
| Weight Added with 1m Higher | 11.0 | ||
Size Specification:
| Type | HSY-10004S | HSY-10004D |
| H | 1190 | |
| A | 630 | 685 |
| B | 315 | 352 |
| E | 890 | |
| I | φ70 | |
| J | φ36 | |
| K | 85 | |
| L | 80 | |
| M | 85 | |
| N | 55 | |
| W | 366 | |
| U | 191 | |
| R | 142 | |
| T | 231 | |
Advantages:
*No manual effort required for horizontal movement
*Increased productivity for frequent lifting cycles
*Precise load positioning with motorized travel
*Reduced operator fatigue and improved safety
*Low maintenance with durable chain system
Typical Applications:
*Ship hatch cover handling and positioning
*Heavy machinery assembly and maintenance
*Shipyard and offshore equipment lifting
*Steel fabrication and heavy manufacturing
*Large warehouse and logistics centers
