Product Description
500Kg-10Ton Low Headroom Type Electric Chain Hoist
Product Introduction:
The Low Headroom Type Electric Chain Hoist is a compact and efficient material handling solution specifically designed for workplaces with limited vertical space. Unlike standard electric chain hoists, this model features an optimized hook-to-hook distance and a streamlined body structure, allowing it to operate effectively in low-ceiling environments such as basements, ship decks, warehouses with low overhead clearance, and under existing crane beams.
Key Features:
1.Minimized Headroom Design
The hoist's motor and chain guide are arranged in parallel with the load chain, significantly reducing the required space above the suspension point. This enables maximum lifting height even where overhead clearance is restricted.
2.Durable Electric Motor
Equipped with a high-performance, heavy-duty electric motor with thermal overload protection, ensuring reliable operation and extended service life.
3.Precision Load Chain
Uses case-hardened, corrosion-resistant alloy steel load chain for smooth, safe, and precise lifting. The chain is wear-resistant and designed for long-term use.
4.Fail-Safe Braking System
Includes an automatic electromagnetic brake that engages instantly when power is cut, preventing load free-fall and enhancing operational safety.
5.User-Friendly Control
Comes with a low-voltage pendant control station for easy and safe operation. Optional radio remote control is available for increased convenience.
6.Compact & Lightweight Construction
The low headroom profile also contributes to a lighter overall weight, making installation and maintenance easier compared to conventional hoists.

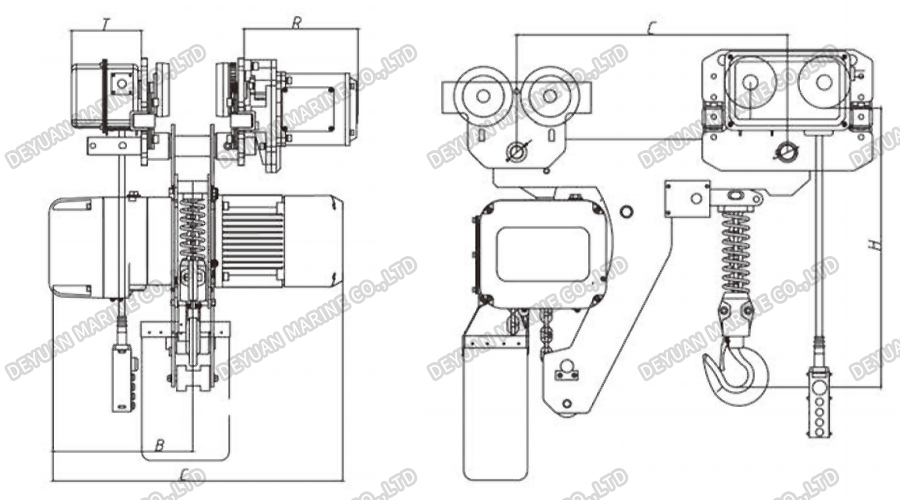

Drawing:
Technical Parameters:
| Capacity(Ton) | Model | Lifting speed (m/min) | Motor power (kw) | Rotational speed (r/min) | Insulation class | Power Supply | Control voltage | NO.of chain | Spec.of Load Chain |
| 0.5 | SK-005E01SL | 8.6 | 0.9 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 1 | Φ6.3 |
| 1 | SK-010E01SL | 7.3 | 1.5 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 1 | Φ7.1 |
| 1.5 | SK-015E01SL | 9.2 | 3.0 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 1 | Φ10.0 |
| 2 | SK-020E01SL | 7.4 | 3.0 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 1 | Φ10.0 |
| 2 | SK-020E02SL | 3.7 | 1.5 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 2 | Φ7.1 |
| 2.5 | SK-025E01SL | 6 | 3.0 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 1 | Φ11.2 |
| 3 | SK-030E01SL | 6 | 3.0 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 1 | Φ11.2 |
| 3 | SK-030E02SL | 3.7 | 3.0 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 2 | Φ10.0 |
| 5 | SK-050E02SL | 3 | 3.0 | 1440r/min | F | 3-phase 220-690V | 24V/36V/48V | 2 | Φ11.2 |
Typical Applications:
*Factories with low overhead crane runways
*Marine and offshore environments (e.g., engine rooms, decks)
*Basement workshops and underground facilities
*Temporary lifting setups under fixed structures
*Assembly lines with height constraints
