Product Description

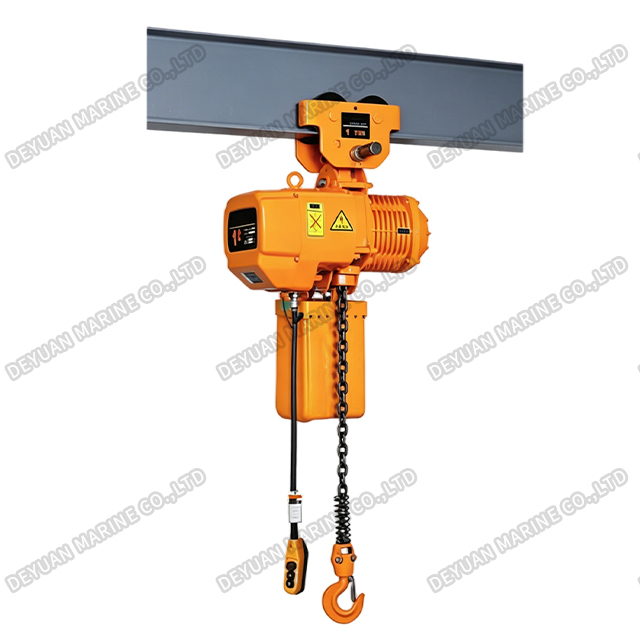

500kg–2t Single Speed Manual Trolley Chain Hoist
Product Introduction:
Our 500kg–2t Single Speed Manual Trolley Chain Hoist is a cost-effective and reliable lifting solution for light to medium duty applications. It combines electric lifting with manual horizontal travel, offering simplicity and affordability where full motorized movement is not required.
Key Features:
1.Capacity Range – Available from 500kg to 2 tons, covering diverse workshop and warehouse needs.
2.Single Speed Lifting – Fixed lifting speed provides consistent, controlled vertical movement for standard operations.
3.Manual Trolley – The hoist travels along an I-beam or overhead rail by simply pushing or pulling the load or hoist body. No electrical wiring for travel is needed.
4.Chain Hoist Mechanism – Robust chain lifting system ensures smooth operation and long service life.
5.Compact Design – Ideal for low headroom installations and tight spaces.

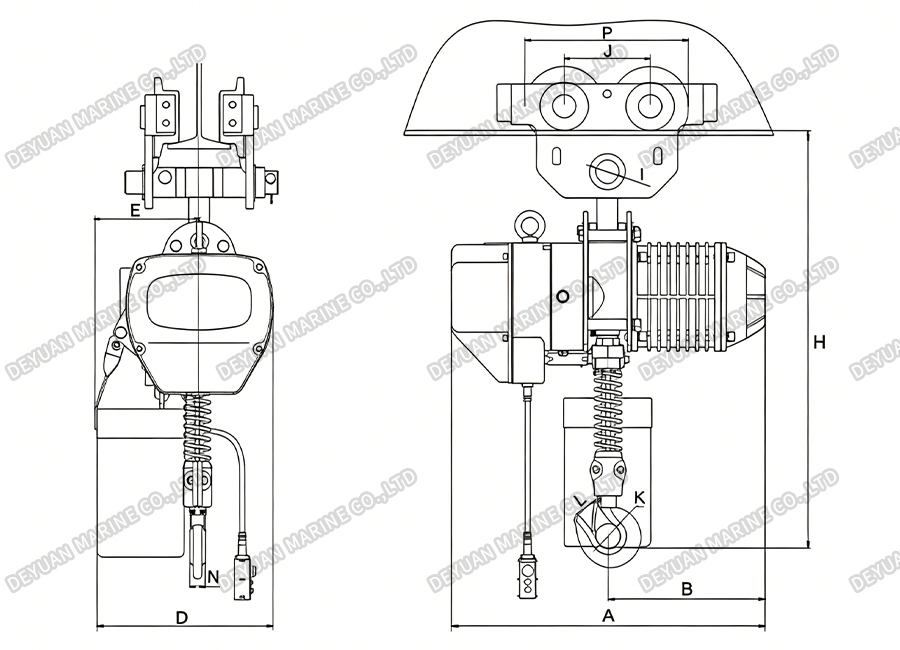

Drawing:
Technical Parameters:
| Type | HSY-05001S | HSY-01001S | HSY-01501S | HSY-02001S | HSY-02002S | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2 | |
| Standard Lifting Height(m) | 3 | |||||
| Lifting Speed(m/min) | 6.8 | 6.6 | 8.8 | 6.6 | 3.3 | |
| Lifting Motor | Power(KW) | 0.75 | 1.5 | 3.0 | 3.0 | 1.5 |
| Rotation Speed (r/min) | 1440 | |||||
| Phases | 3 | |||||
| Voltage(V) | 200-440 | |||||
| Frequency(Hz) | 50 | |||||
| Chain Turns | 1 | |||||
| Chain Specification | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | |
| Test Load(t) | 0.625 | 1.25 | 1.875 | 2.5 | 2.5 | |
| I-Beam(mm) | 68-130 | 68-130 | 82-153 | 82-153 | 82-153 | |
| Weight Added with 1m Higher | 0.81 | 1.1 | 2.3 | 2.3 | 2.2 | |
Size Specification:
| Type | HSY-05001S | HSY-01001S | HSY-01501S | HSY-02001S | HSY-02002S |
| H | 580 | 635 | 764 | 764 | 800 |
| A | 460 | 520 | 615 | 615 | 520 |
| B | 230 | 260 | 295 | 295 | 260 |
| D | 280 | 300 | 430 | 430 | 300 |
| F | 160 | 176 | 265 | 265 | 236 |
| K | φ35 | φ40 | φ47 | φ47 | φ47 |
| L | 28 | 31 | 38 | 38 | 38 |
| N | 17 | 22 | 30 | 30 | 30 |
| I | φ26 | φ31 | φ31 | φ31 | φ31 |
| J | 115 | 115 | 138 | 138 | 138 |
| P | 221 | 221 | 265 | 265 | 265 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
