Product Description

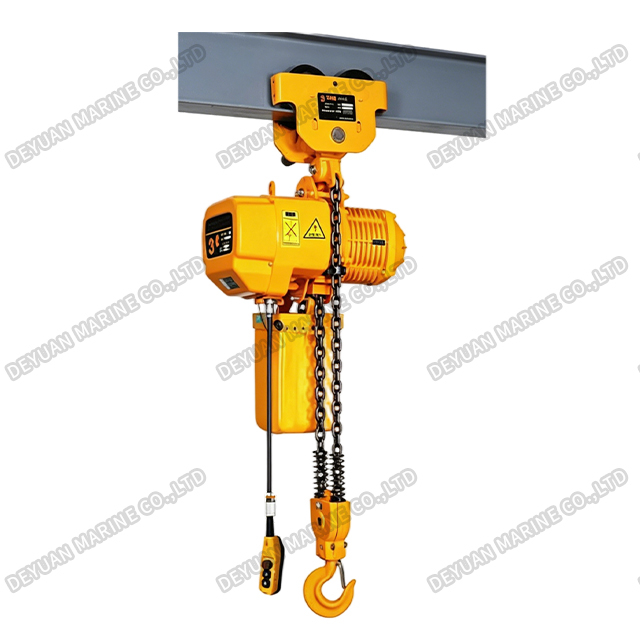

2.5–5t Manual Trolley Chain Hoist
Product Introduction:
Our 2.5–5t Manual Trolley Chain Hoist is a heavy-duty lifting solution designed for medium to large capacity applications where electric lifting is required but motorized travel is not essential. It offers an excellent balance of power, reliability, and cost-effectiveness.
Key Features:
1.Shell:Light aluminum alloy shell shall be adopted, which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
2.Inverse phase sequence protecting device:It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.
3.Limit switch:The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
4.24V/36V device:It is used to prohibit the emergencies from occurring in case of the leakage in the switch.
5.Side magnetic braking device:This device shall realize the instant brake in case of the power dump.
6.Chain bag:It shall be light, handsome and durable.
7.Chain:The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain.
Technical Parameters:
| Type | HSY-02501S | HSY-03001S | HSY-03002S | HSY-03003S | HSY-05002S | |
| Capacity(t) | 2.5 | 3 | 3 | 3 | 5 | |
| Standard Lifting Height(m) | 3 | |||||
| Lifting Speed(m/min) | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 | |
| Lifting Motor | Power(KW) | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| Rotation Speed (r/min) | 1440 | |||||
| Phases | 3 | |||||
| Voltage(V) | 200-440 | |||||
| Frequency(Hz) | 50 | |||||
| Chain Turns | 1 | 1 | 2 | 3 | 5 | |
| Chain Specification | φ11.2 | φ11.2 | φ11.2 | φ7.1 | φ11.2 | |
| Test Load(t) | 3.125 | 3.75 | 3.75 | 3.75 | 3.75 | |
| I-Beam(mm) | 82-153 | 82-153 | 82-153 | 82-153 | 100-178 | |
| Weight Added with 1m Higher | 2.8 | 2.8 | 4.7 | 3.4 | 5.6 | |
Size Specification:
| Type | HSY-02501S | HSY-03001S | HSY-03002S | HSY-03003S | HSY-05002S |
| H | 854 | 854 | 960 | 968 | 1007 |
| A | 615 | 615 | 615 | 520 | 615 |
| B | 295 | 295 | 295 | 260 | 295 |
| D | 430 | 430 | 430 | 350 | 430 |
| F | 265 | 265 | 320 | 205 | 325 |
| K | φ58 | φ58 | φ58 | φ58 | φ60 |
| L | 47 | 47 | 47 | 47 | 48 |
| N | 36 | 36 | 36 | 36 | 43 |
| I | φ36 | φ36 | φ36 | φ36 | φ43 |
| J | 157 | 157 | 157 | 157 | 178 |
| P | 277 | 277 | 277 | 277 | 332 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
