Product Description

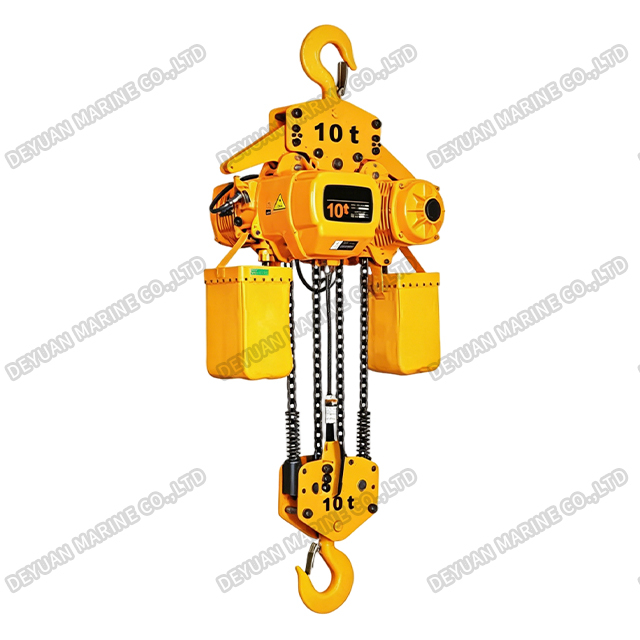

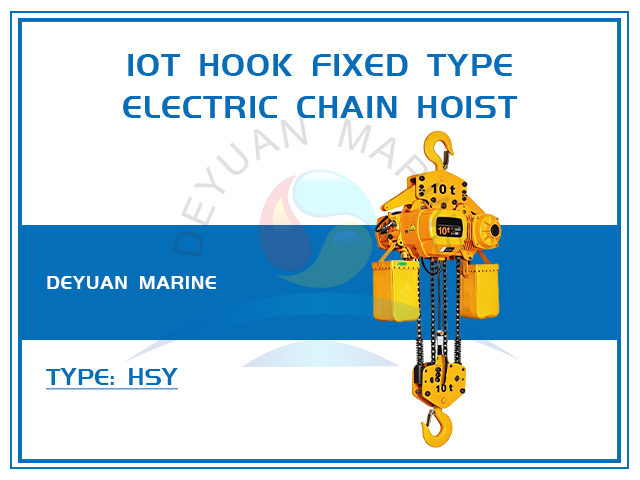

10T Hook Fixed Type Electric Chain Hoist
Product Introduction:
Our 10T Hook Fixed Type Electric Chain Hoist is a powerful and durable lifting solution designed for heavy-duty applications where overhead runway or rail travel is not required. With a fixed suspension hook for simple attachment to a beam, gantry crane, or structural support, this hoist delivers reliable electric lifting for loads up to 10 tons.
Key Features:
1.Capacity – 10 tons, ideal for heavy loads in shipyards, factories, and construction sites.
2.Treble Chain System – Three load-bearing chains provide excellent load distribution, enhanced safety, and smooth lifting at higher capacities.
3.Electric Trolley – Motorized horizontal travel along I-beams or overhead rails eliminates manual pushing, reducing operator fatigue and improving productivity.
4.Single or Dual Speed Options – Available with single or two-speed lifting for precise load positioning.
5.Fail-Safe Brake – Integrated electromagnetic brake ensures secure load holding in case of power failure.
6.Heavy-Duty Construction – Robust steel housing and corrosion-resistant coating options for marine and outdoor use.

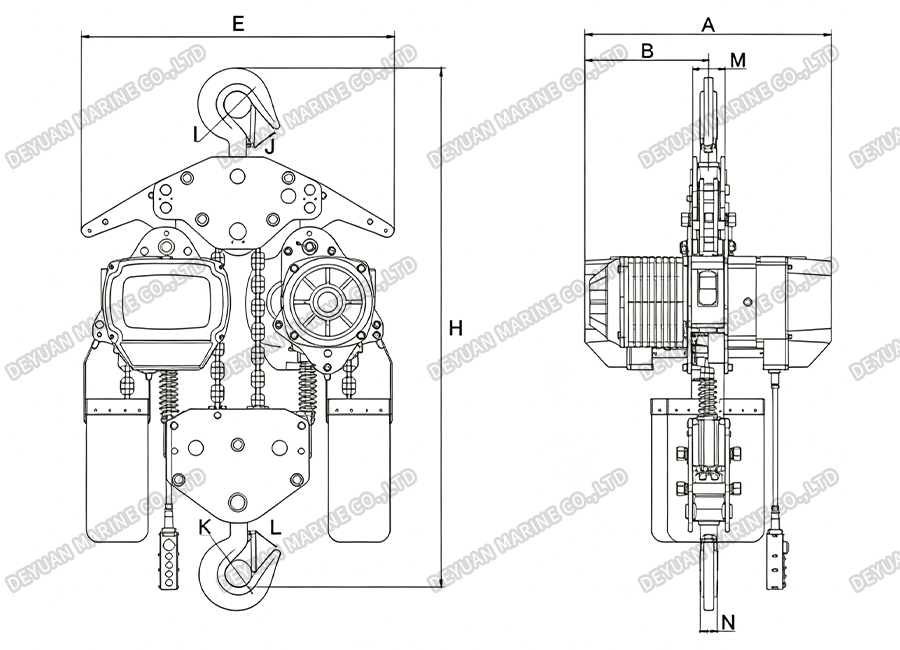

Drawing:
Technical Parameters:
| Type | HSY-10004S | HSY-10004D | |
| Capacity(t) | 10 | ||
| Standard Lifting Height(m) | 3 | ||
| Lifting Speed(m/min) | 2.7 | 2.7/0.9 | |
| Lifting Motor | Power(KW) | 3.0*2 | 3.0*2/1.0*2 |
| Rotation Speed (r/min) | 1440 | 2890/980 | |
| Phases | 3 | ||
| Voltage(V) | 200-440 | ||
| Frequency(Hz) | 50 | ||
| Chain Turns | 4 | ||
| Chain Specification | φ11.2 | ||
| Test Load(t) | 12.50 | ||
| Weight(kg) | 300 | 380 | |
| Weight Added with 1m Higher | 8.4 | ||
Size Specification:
| Type | HSY-10004S | HSY-10004D |
| H | 1400 | |
| A | 630 | 685 |
| B | 315 | 352 |
| E | 890 | |
| I | φ85 | |
| J | 80 | |
| K | φ85 | |
| L | 80 | |
| M | 104 | |
| N | 55 | |
Advantages:
*Simple installation – no rail or trolley needed
*Lower cost compared to trolley-mounted hoists
*Ideal for fixed lifting points or single-station operations
*Compact and portable for use with gantry cranes or A-frames
*Rugged construction for long service life
