Product Description

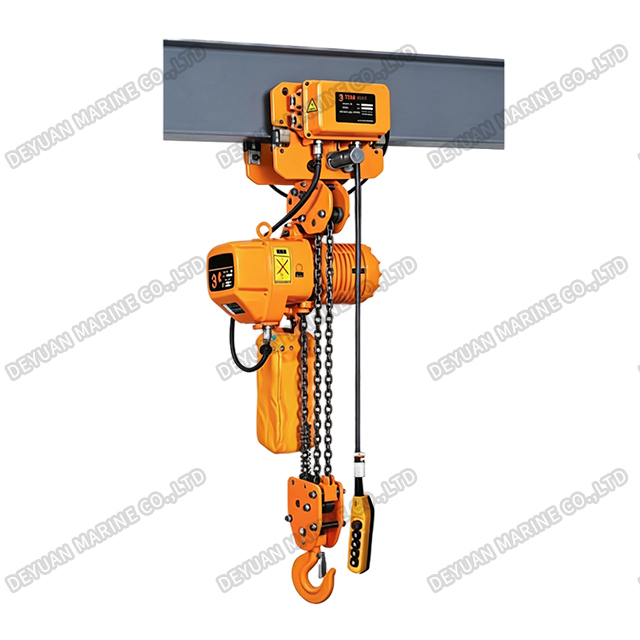

3T Electric Trolley Type Chain Hoist (Treble Chain)
Product Introduction:
Our Electric Trolley Type Chain Hoist (Treble Chain) is designed for heavy-duty lifting in industrial and marine environments, including ship hatch cover handling, workshop crane systems, and offshore applications.
Featuring a three-chain lifting mechanism, this hoist provides higher load capacity and improved safety compared to single or double chain models. The electric trolley allows smooth horizontal movement along an I-beam or overhead rail, while the electric chain hoist handles vertical lifting with precision and control.
Key Advantages:
*Treble chain design – Distributes load evenly across three chains, enabling stable lifting of 10–30 tons.
*Electric trolley travel – Reduces manual effort, improves positioning accuracy.
*Compact & robust – Suitable for low-headroom installations.
*Fail-safe brake – Ensures secure load holding.
*Marine-grade options – Corrosion-resistant coatings available for shipyard use.

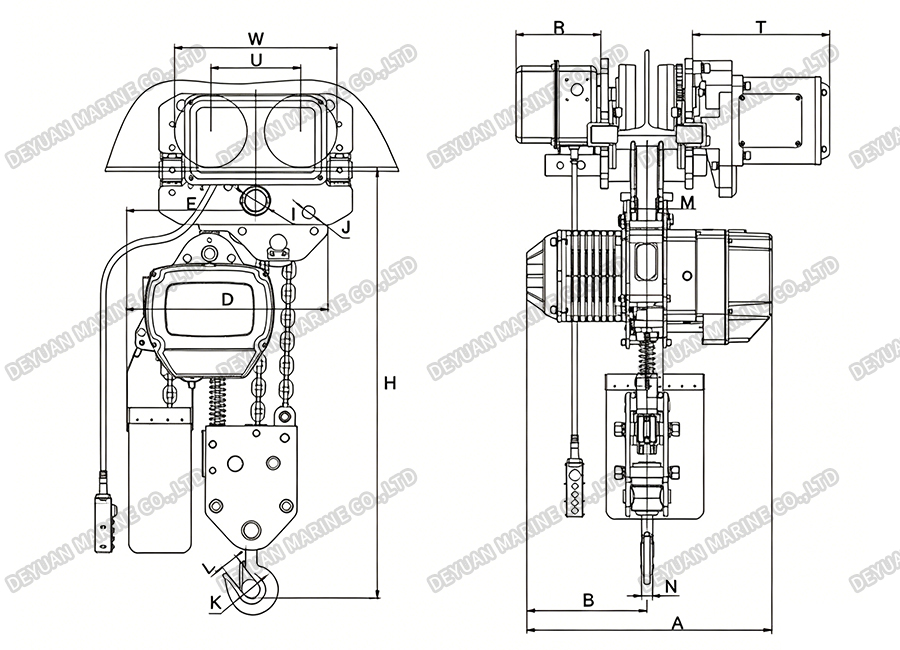

Drawing:
Technical Parameters:
| Type | HSY-03003S | HSY-03003D | |
| Capacity(t) | 3 | ||
| Standard Lifting Height(m) | 3 | ||
| Lifting Speed(m/min) | 2.2 | 2.4/0.8 | |
| Lifting Motor | Power(KW) | 1.5 | 1.8/0.6 |
| Rotation Speed (r/min) | 1440 | 2890/980 | |
| Phases | 3 | ||
| Voltage(V) | 200-440 | ||
| Frequency(Hz) | 50 | ||
| Operating Motor | Power(KW) | 0.75 | |
| Rotation Speed(r/min) | 1440 | ||
| Operating Speed(m/min) | 11/21 | ||
| Phases | 3 | ||
| Voltage(V) | 200-440 | ||
| Frequency(Hz) | 50 | ||
| Chain Turns | 3 | ||
| Chain Specification | φ7.1 | ||
| Test Load(t) | 3.75 | ||
| Weight(kg) | 85 | 102 | |
| I-Beam(mm) | 100-178 | ||
| Weight Added with 1m Higher | 3.5 | ||
Size Specification:
| Type | HSY-03003S | HSY-03003D |
| H | 940 | 940 |
| A | 520 | 582 |
| B | 260 | 280 |
| D | 350 | 350 |
| E | 205 | 205 |
| I | φ43 | φ43 |
| K | φ58 | φ58 |
| L | 47 | 47 |
| N | 36 | 36 |
| W | 265 | 265 |
| U | 140 | 140 |
| R | 142 | 142 |
| T | 231 | 231 |
Typical Applications:
*Moving heavy ship hatch covers
*Loading/unloading in cargo holds
*Heavy equipment assembly & maintenance
