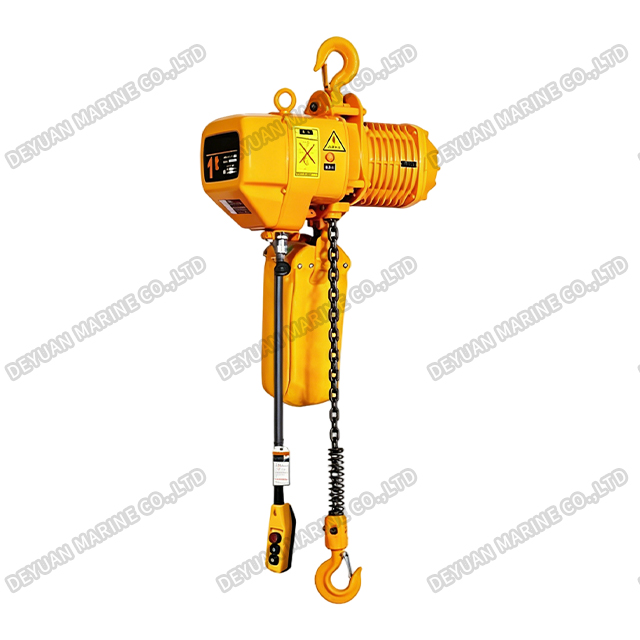

500KG-3T Hook Fixed Type Electric Chain Hoist (Single Chain)
Product Introduction:
The Hook Fixed Type Electric Chain Hoist (Single Chain) is a reliable and cost-effective lifting solution designed for stationary overhead applications. Unlike trolley-mounted hoists, this model features a fixed suspension hook that attaches directly to a sturdy overhead structure such as an I-beam, gantry frame, or jib crane. Once installed, the hoist remains at a fixed position and does not travel horizontally. This makes it ideal for dedicated lifting stations where loads are consistently handled in one spot.
Key Features:
1.Shell:Light aluminum alloy shell shall be adopted, which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
2.Inverse phase sequence protecting device:It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.
3.Limit switch:The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
4. 24V/36V device:It is used to prohibit the emergencies from occurring in case of the leakage in the switch.
5.Side magnetic braking device:This device shall realize the instant brake in case of the power dump.
6.Chain bag:It shall be light, handsome and durable.
7.Chain:The chain shall adopt the imported FEC80 ultra heat-treated alloy steel chain.

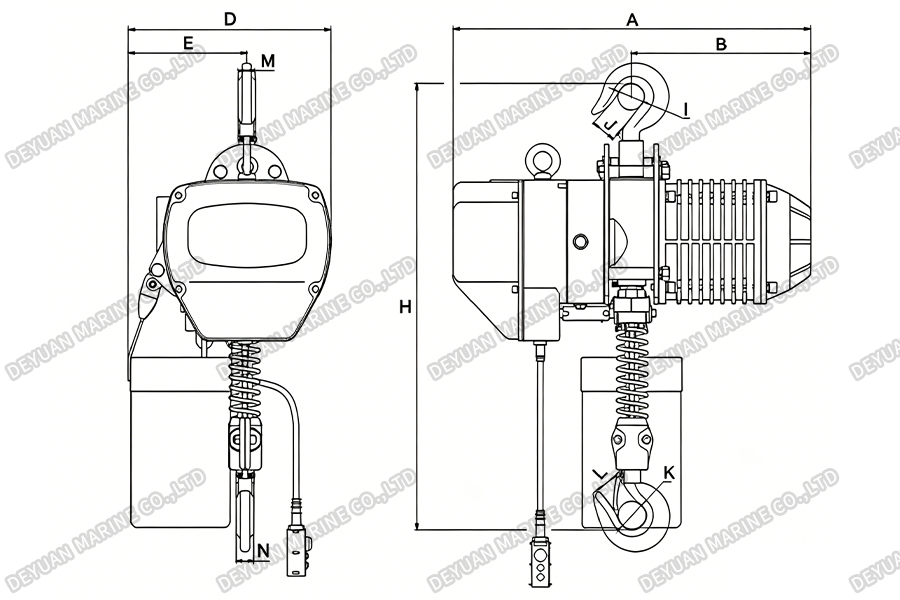

Drawing:
Technical Parameters(Single Speed):
| Type | HSY-00501S | HSY-01001S | HSY-01501S | HSY-02001S | HSY-02501S | HSY-03001S | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | |
| Standard Lifting Height(m) | 3 | ||||||
| Lifting Speed(m/min) | 6.8 | 6.6 | 8.8 | 6.6 | 5.4 | 5.4 | |
| Lifting Motor | Power(KW) | 0.75 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation Speed (r/min) | 1440 | ||||||
| Phases | 3 | ||||||
| Voltage(V) | 200-440 | ||||||
| Frequency(Hz) | 50 | ||||||
| Chain Turns | 1 | ||||||
| Chain Specification | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ11.2 | φ11.2 | |
| Test Load(t) | 0.625 | 1.25 | 1.875 | 2.5 | 3.125 | 3.75 | |
| Weight(kg) | 47 | 61 | 108 | 115 | 116 | 122 | |
| Weight Added with 1m Higher | 0.81 | 1.1 | 2.3 | 2.3 | 2.8 | 2.8 | |
Size Specification(Single Speed):
| Type | HSY-00501S | HSY-01001S | HSY-01501S | HSY-02001S | HSY-02501S | HSY-03001S |
| H | 550 | 650 | 800 | 800 | 845 | 845 |
| A | 460 | 520 | 615 | 615 | 615 | 615 |
| B | 230 | 260 | 295 | 295 | 295 | 295 |
| D | 280 | 300 | 430 | 430 | 430 | 430 |
| E | 160 | 176 | 265 | 265 | 265 | 265 |
| I | φ35 | φ40 | φ47 | φ47 | φ58 | φ58 |
| J | 25 | 31 | 40 | 40 | 47 | 47 |
| K | φ35 | φ40 | φ47 | φ47 | φ58 | φ58 |
| L | 25 | 31 | 38 | 38 | 47 | 47 |
| M | 17 | 22 | 30 | 30 | 36 | 36 |
| N | 17 | 22 | 30 | 30 | 36 | 36 |
Technical Parameters(Double Speed):
| Type | HSY-00501D | HSY-01001D | HSY-01501D | HSY-02001D | HSY-02501D | HSY-03001D | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | |
| Standard Lifting Height(m) | 3 | ||||||
| Lifting Speed(m/min) | 6.9/2.3 | 6.9/2.3 | 8.9/2.9 | 6.8/2.3 | 5.4/1.8 | 5.4/1.8 | |
| Lifting Motor | Power(KW) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Rotation Speed (r/min) | 2890/980 | ||||||
| Phases | 3 | ||||||
| Voltage(V) | 200-440 | ||||||
| Frequency(Hz) | 50 | ||||||
| Chain Turns | 1 | ||||||
| Chain Specification | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ11.2 | φ11.2 | |
| Test Load(t) | 0.625 | 1.25 | 1.875 | 2.5 | 3.125 | 3.75 | |
| Weight(kg) | 54 | 74 | 144 | 150 | 148 | 159 | |
| Weight Added with 1m Higher | 0.81 | 1.1 | 2.3 | 2.3 | 2.8 | 2.8 | |
Size Specification(Double Speed):
| Type | HSY-00501D | HSY-01001D | HSY-01501D | HSY-02001D | HSY-02501D | HSY-03001D |
| H | 550 | 650 | 800 | 800 | 845 | 845 |
| A | 545 | 582 | 670 | 670 | 670 | 670 |
| B | 260 | 280 | 313 | 313 | 313 | 313 |
| D | 280 | 300 | 430 | 430 | 430 | 430 |
| E | 160 | 176 | 265 | 265 | 265 | 265 |
| I | φ35 | φ40 | φ47 | φ47 | φ58 | φ58 |
| J | 28 | 31 | 40 | 40 | 47 | 47 |
| K | φ35 | φ40 | φ47 | φ47 | φ58 | φ58 |
| L | 25 | 31 | 38 | 38 | 47 | 47 |
| M | 17 | 22 | 30 | 30 | 36 | 36 |
| N | 17 | 22 | 30 | 30 | 36 | 36 |
