Product Description

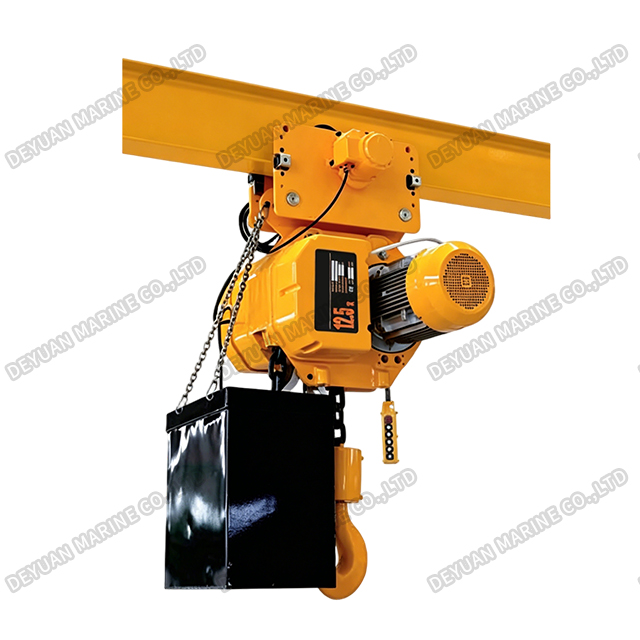

6Ton-50Ton Hyper Series Electric Chain Hoist
Product Introduction:
The 6Ton-50Ton Hyper Series Electric Chain Hoist is a high-performance lifting solution designed for heavy-duty industrial applications. Covering a wide capacity range from 6 tons to 50 tons, the Hyper Series represents the pinnacle of electric chain hoist technology, offering superior power, efficiency, and reliability.
Key Features:
1.Wide Capacity Range: Available from 6 tons to 50 tons, suitable for medium to extreme heavy lifting tasks
2.Hyper Series Advantage: Engineered with advanced motor technology, high-strength alloy steel chain, and precision gearing for exceptional performance
3.High Lifting Speed: Optimized gear train and motor design provide faster lifting speeds compared to standard hoists, improving productivity
4.Compact & Powerful: High power-to-weight ratio allows for powerful lifting in a compact footprint, ideal for space-constrained installations
5.Superior Safety: Built-in overload protection, dual braking system (electromagnetic and mechanical), and emergency stop function. Safety factor of 5:1 or higher
6.Durable Construction: Heavy-duty housing with corrosion-resistant coating, sealed gearbox, and wear-resistant chain for long service life in harsh environments
7.Smooth Operation: Variable frequency drive (VFD) ready for precise load positioning and reduced load swing
8.Flexible Control Options: Pendant control, remote control, or smart control panel available for various operational needs

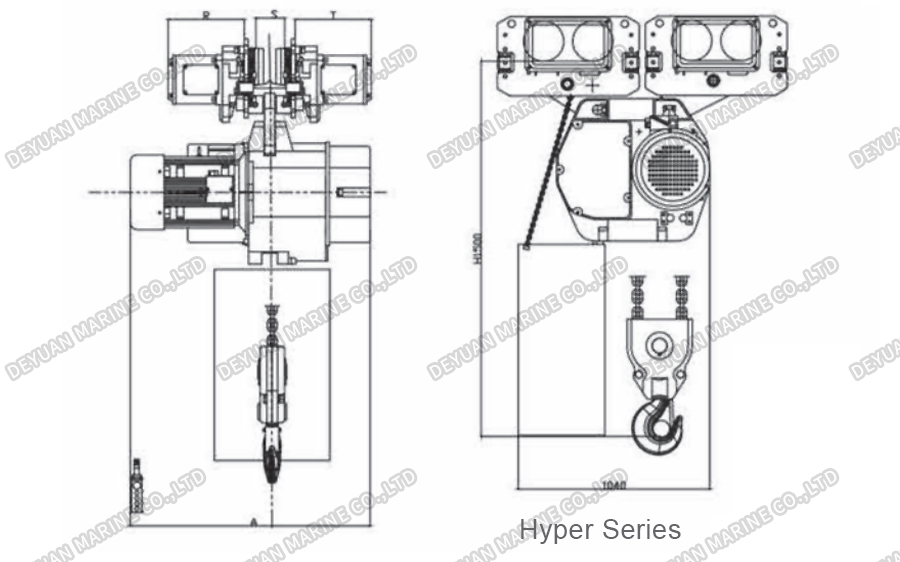

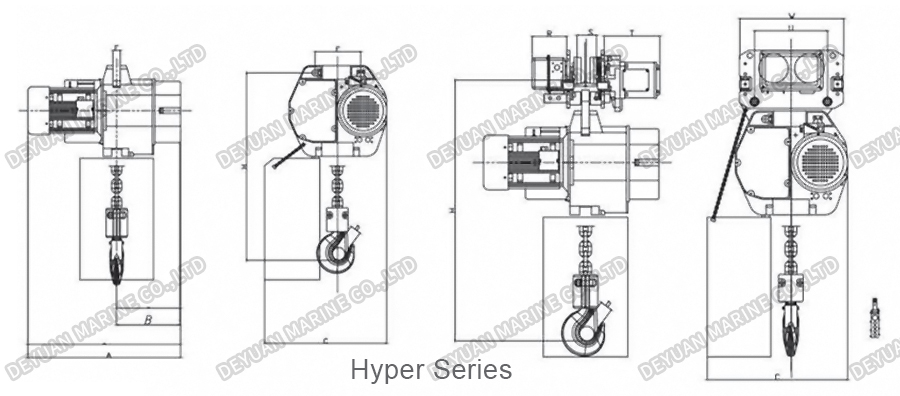

Drawing:
Technical Parameters:
| Hyper Series | ||||||||||||||||||||||||
| Ltngweght (t) | Model | Speed Type | Liting speed (m/min) | Lifting electic power (kw) | Chain specfication | Chain retum | Hoist Dimensions | Electric Trolley | Hoist N.W (kg) | Electric Trolley N.W (kg) | Weight added with 1m Higher | |||||||||||||
| H | A | B | C | D | E | F | Model | Power (KW) | Operation (m/min) | I-Beam S | H2 | R | T | W | ||||||||||
| 5 | SK-050H01 | S D | 3 6/1.5 | 10/2.5 | 22 | 1 | 1205 | 1040 | 460 | 1040 | 70 | 315 | 45 | ET-125 | 0.75 | 10 or 20 o r20/5 | 110-294 | 1500 | 142 | 231 | 660 | 447 | 280 | 10 |
| 8 | SK-080H01 | S D | 3 6/1.5 | 10/2.5 | 22 | 1 | 1205 | 1040 | 460 | 1040 | 70 | 315 | 45 | ET-125 | 0.75 | 10 or 20 o r20/5 | 110-294 | 1500 | 142 | 231 | 660 | 447 | 280 | 10 |
| 10 | SK-100H01 | S D | 3 6/1.5 | 16/4 | 22 | 1 | 1205 | 1040 | 460 | 1040 | 70 | 315 | 45 | ET-250 | 0.75*2 | 10 or 20 o r20/5 | 110-294 | 1600 | 142 | 231 | 1350 | 500 | 280 | 20 |
| 12.5 | SK-125H01 | S D | 3 6/1.5 | 16/4 | 22 | 1 | 1205 | 1040 | 460 | 1040 | 70 | 315 | 45 | ET-125 | 0.75 | 10 or 20 o r20/5 | 110-294 | 1500 | 142 | 231 | 660 | 447 | 280 | 10 |
| 20 | SK-200H02 | S D | 1.5 1.5/0.4 | 16/4 | 22 | 2 | 1500 | 1040 | 360 | 1040 | 80 | 315 | 45 | ET-250 | 0.75*2 | 10 or 20 o r20/5 | 110-294 | 1600 | 142 | 231 | 1350 | 500 | 280 | 20 |
| 25 | SK-250H02 | S D | 1.5 1.5/0.4 | 16/4 | 22 | 2 | 1500 | 1040 | 360 | 1040 | 80 | 315 | 45 | ET-250 | 0.75*2 | 10 or 20 o r20/5 | 110-294 | 1600 | 142 | 231 | 1350 | 500 | 280 | 20 |
