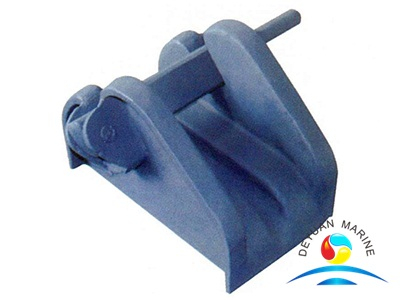

Small Size Cast Steel Bar Type Anchor Chain Cable Stopper with Epoxy Coating

Brand:Deyuan Marine
Product Name:Bar Type Anchor Chain Cable Stopper
Material:Cast Steel, Cast Iron.
Surface treatment: Epoxy Coating
Certificate:CCS ,EC,ABS ,BV etc
Payment:T/T,L/C ,Paypal
Delivery time:10-30 days
Guarantee:12 months
Origin :China

Product Description

Small Size Cast Steel Bar Type Anchor Chain Cable Stopper with Epoxy Coating

We produce the Marine Anchor Chain Cable Stopper by Cast Steel and Cast Iron with high quality and professional production team .After the strict testing and approved by the international classification societies.

Small Size Cast Steel Bar Type Anchor Chain Cable Stopper have different size according to your need .Normal anchor chain diameter is 17mm-36mm .Cast Steel Bar Type Anchor Chain Cable Stopper withstand 80% of anchor chain minimum breaking Load.

The guarantee of Epoxy Coating Cast Steel Bar Type Anchor Chain Cable Stopper is 12 months .We can deliver the Epoxy Coating Bar Type Anchor Chain Cable Stopper by sea .

If you have any other details of Marine Cast Steel Bar Type Anchor Chain Cable Stopper please contact us .Below is the data sheet of Good Price Cast Steel Bar Type Anchor Chain Stopper.

No.     19      22      25      28      32      36
Nominal DIA of  anchor chain(mm)   17  19    20  22    23  25    26  28    29  32    34  36
A     190      216      241      270      305      342
B     270      310      345      385      435      490
C     200      226      256      280      320      154
D     134      153      175      193      220      246
Weight
(kg)
    17      24      33      44      68      92
