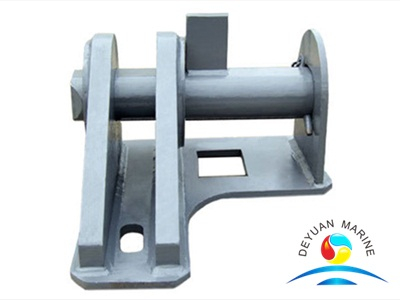

54MM Emergency Towing Bracket Deck Mounted with BV Certificate

Type: Anchor Chain Locker Eye Ring
Brand: Deyuan Marine
Material: Steel
SWL: 450kn to 4000kn
Function: To be welded on deck for towing
Service life: 10-15 years
Payment Terms: T/T, L/C, Western Union, Paypal

Product Description

54MM Emergency Towing Bracket Deck Mounted with BV Certificate


Nominal Dia.
(mm)
Dimension(mm) Mass
(kgs)
SWL
(kN)
BBL
(kN)
L3 L2 L1 B1 E S B2 D1 D3 R
54 450 500 450 180 75 255 250 75 170 100 55 1000 2000
64 510 580 500 205 85 280 270 85 190 110 125 1500 3000
76 625 700 600 260 105 320 340 100 230 135 200 2000 4000


Smit Towing Bracket/Emergency Towing Bracket Deck Mounted type is usually used as component part in an emergency towing system, can also be used in their own right for chain connections on a vessel or barge.

Overview:
The brackets can also be used solely for a chain connection on a ship/barge or rig.
Manufactured from high grade alloy steel our Smit Brackets work to 100/200/300/400te loadings and suit chain sizes from 16mm up to 120mm.
The Smit Bracket is a simple yet ultimately, effective design which utlises a sliding pin which locks the mooring chain into place.
With a wide range available, our towing brackets suit the majority fo marine applications including most sized and anchors and mooring chains.
All our brackets are designed to be compatible with the breaking load of the chain being deployed.
Units can be supplied in accordance with classifications societies including Lloyds, ABS, BV or DNV.

Key Features:
For emergency towing systems and chain connections
Deck mounted
Simple & effective design
Suit chains up to 120mm
To be welded on deck for towing
Material: Structural steel
Surface treatment: sandblasting to S2.5 + one layer of shop primer, customized surface treatment available.
Certificate: BV, ABS, LR, DNV
3.1 Certificate acc. to EN10204:2004 on request
3.2 Certificate acc. to EN10204:2004 on request
