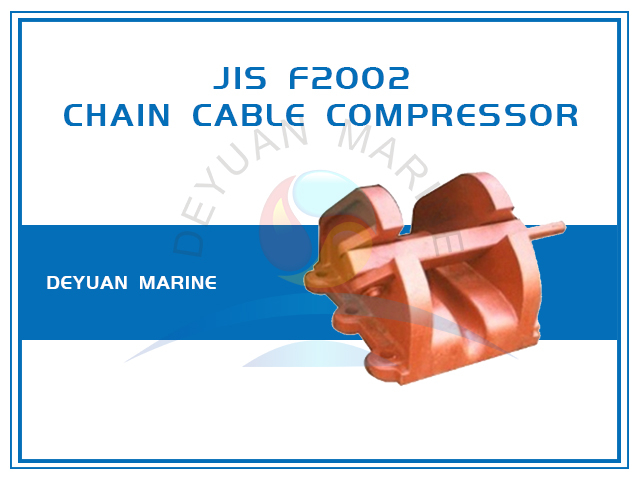

JIS F2002 Bar Type Chain Cable Stopper

Place of Origin: China
Brand: DEYUAN MARINE
Product: Chain Cable Stopper
Type: Bar Type
Standard: JIS F2002
Installation: Bolt mounting
Material: Cast Iron
Surface: with anti-corrosion protective finish
Availability:

Product Description

JIS F2002 Bar Type Chain Cable Stopper

Chain Cable Stopper in stock product description

Introduction of JIS F2002 Bar Type Chain Cable Stopper

Chain Cable Stopper is a device that designed as per the standard of JIS F2002, and used to hold the anchor while the ship is underway and guides the chain during anchoring manoeuvres. During anchoring, the chain stopper withstands the forces from the anchor, so the anchor winch is protected.

Our JIS F2002 chain stopper is a bar type chain cable stopper, the bar can be opened in right or left hand side.

And it was made from cast iron steel, a variety of size was designed for all chain sizes.

DEYUAN MARINE supplies a full range of Chain Cable Stopper to meet mooring applicatoins.

  •  JIS F2002-1976 cast iron bar type chain stopper

  • JIS F2015-1987 cast steel bar type chain stopper

  • JIS F2023-1976 cast steel bar type chain stopper

  • JIS F2033 roller bar type chain stopper for Grade 3 chain cable

  • CB*286-84 cast lever chain stopper

  • GB/T 3844-2000 marine roller lever chain stopper

  • GB/T178-96 screw type chain stopper

  • OCIMF Type single point mooring chain stopper

If you're insterested in any of chain cable stopper, please feel free to contact DEYUAN MARINE, we're always standby, looking forward to your specific inquiry.


Chain Cable Stopper manufacturers technical parameters

JIS F2002 Bar Type Chain Cable Stopper

Nominal Size Cable Dia.
(mm)
Dimension(mm) Mass
(kgs)
B H L h B2
19 17-19 195 190 270 32 32 22
22 20-22 215 216 310 37 38 31
25 23-25 240 241 345 43 43 44
28 26-28 265 270 385 48 49 58
32 30-32 305 305 435 54 55 89
36 34-36 340 342 490 61 61 122
40 38-40 370 378 540 68 65 160
44 42-44 405 412 590 75 72 208
48 46-48 440 450 640 82 78 272
52 50-52 470 491 695 88 85 338
56 54-56 495 522 745 95 92 414
60 58-60 530 564 795 102 98 505
64 62-64 565 600 850 109 104 618
68 66-68 590 635 900 116 110 737
