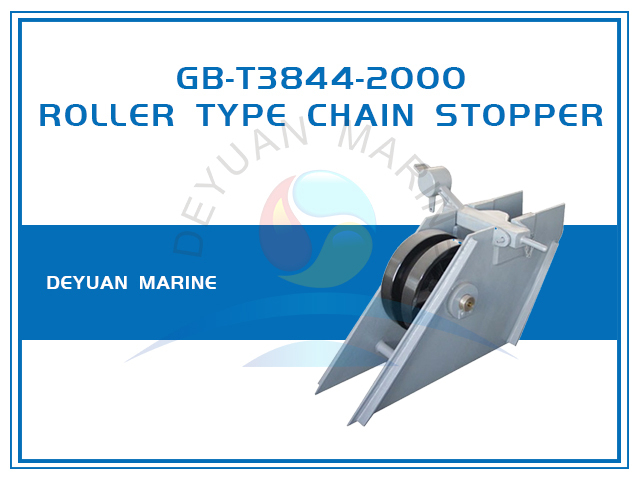

GB/T3844-2000 Roller Level Type Chain Stopper

Place of Origin: China
Brand: DEYUAN MARINE
Product: Chain Stopper
Type: Roller level Type
Standard: GB/T3844-2000
Material: Cast Steel
Surface: with anti-corrosion protective finish
Availability:

Product Description

GB/T3844-2000 Roller Level Type Chain Stopper

Roller Level Chain Stopper suppliers product description

Introduction of GB/T3844-2000 Roller Level Type Chain Stopper

CB/T3822 Chain Stopper is a kind of  roller level type chain stopper, with durable, high quality stable performance design. A full range of sizes were designed to meet different marine applications.

Chain cable stopper is a device which is secured to the ship's structure separate from the cable lifter,for the purpose of securing a chain cable against the tention from the anchor. The stopper also serves as a guide for the chain cable during operation.

Marine chain stoppers for marine mooring and emergency towing system applications are available with or without a plinth.

DEYUAN MARINE supplies a full range of Chain Cable Stopper with different Class approval certificate

  •  JIS F2002-1976 Cast Iron Dog Type Chain Cable Compressor

  • JIS F2015-1987 cast steel bar type Cable stopper

  • JIS F2023-1976 cast steel bar type ship chain stopper

  • JIS F2033 roller bar type Anchor chain stopper

  • CB*286-84 cast lever chain stopper

  • GB/T 3844-2000 marine roller lever chain stopper

  • GB/T178-96 screw type chain stopper

  • OCIMF Type 200T Bow Chain Stopper

  • OCIMF Type 250T Bow Chain Stopper

  • OCIMF Type 350T Bow Chain Stopper

Should any of chain cable stopper be interested of you, please donot hesitate to  contact DEYUAN MARINE at any time.

GBT3844-2000 Chain Stopper technical parameters

 GB/T3844-2000 Roller Level Type Chain Stopper

Nominal Size Anchor chain Dia. L L1 D h1 h2 B Weight
(kg)
44  42-44  1000   370   484   392   281   380   274
48  46- 48  1050  420   528   414   306   446   351
52  50 -52
1100
 440
 572
 440
 330
 510
 451
56  54- 56  1150   450   600   480   354   556   536
60  58 -60  1200   470   620   490   378   610   651
64  62- 64  1250   500   640   520   400   666   753
68  66- 68  1300   550   680   540   420   732   939
73  70 -73  1350   570   730   580   460   800  1178
78  76- 78  400   610   780   630   490   865  1422
84  81- 84  1460   650   840   670   530   940  1758
90  87- 90  1540   710   900   720   570  1030   2171
95  92- 95  600  740   950  760   610  1080   2567
102  97 -102
1680
 790
1020
 800
 650
1150
 2755
107 105 -107
1750
 840
1070
 860
 690
1210  3840
114 111-  114  1820  880  1140   910   740  1270   4302
122 117 -122  1880   930  1220   980   790  1340   5326
132 124- 132  1960  1000  1320  1060   860  1440   6244

Ship roller level chain stopper
