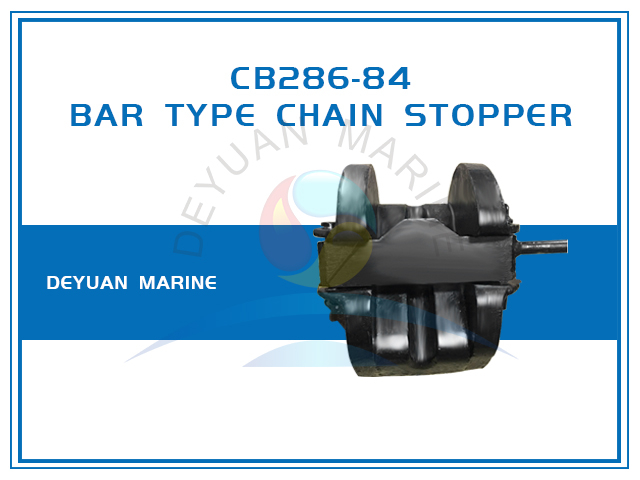

CB286-84 Bar Type Chain Stopper

Place of Origin: China
Brand: DEYUAN MARINE
Product: Chain Stopper
Type: Bar Type
Standard: CB286-84
Material: Cast Steel
Surface: with anti-corrosion protective finish

Product Description

Cast Steel  CB286-84  Bar Type Chain Stopper

Bar Type mooring chain stopper suppliers product description

Introduction of CB286-84  Bar Type Chain Stopper

CB286-84 Chain Stopper is a device designed to hold the anchor while the ship is underway and guides the chain during anchoring manoeuvres, chain stopper can fix the anchor chain and prevent it slip out.

The stopper also serves as a guide for the chain cable during operation, a comprehensive range sizes of chain cable stopper was designed to be installed on any type of vessels, both newbuilds as well as retrofits on existing vessels.

Neither bar type chain stoppers nor roller type chain stoppers, they can be certified by different Class Societies like CCS, ABS, LR, BV, DNV, NK etc.

Apart from bar type, roller type stopper, OCIMF Type for marine mooring and emergency towing system applications are available  too.


DEYUAN MARINE supplies a full range of Chain Cable Stopper with different Class approval certificate

  •  JIS F2002-1976 Cast Iron Dog Type Chain Cable Compressor

  • JIS F2015-1987 cast steel bar type Cable stopper

  • JIS F2023-1976 cast steel bar type ship chain stopper

  • JIS F2033 roller bar type Anchor chain stopper

  • CB*286-84 cast lever chain stopper

  • GB/T 3844-2000 marine roller lever chain stopper

  • GB/T178-96 screw type chain stopper

  • OCIMF Type 200T Bow Chain Stopper

  • OCIMF Type 250T Bow Chain Stopper

  • OCIMF Type 350T Bow Chain Stopper

Should any of chain cable stopper be interested of you, please donot hesitate to  contact DEYUAN MARINE at any time.

Bar type cable stopper manufacturers technical parameters

CB286-84  Chain Stopper

Nominal Dia.
of Chain(mm)
Dimension(mm) Welding angle(f) Weight
(kg)
B H L
12.5- 14  142      162    235    5      20
16  -17.5   170      190    270    6      25
19 - 20.5   193      216    310    6      30
 22 - 24   219      241    345    7      37
26  -28  214      270    385    7      46
30  - 32  274      305    435    9      56
34  - 36  304      342    490    9      69
38 - 40  336      378    540    10      85
42  - 44   366      412    590    10      108
46  - 48  397      450    640    12      139
50 -  52  428      491    695    12      173
54  -56  457      528    745    13      210
58 -   60   488      564    795    13      255
62  -  64  517      600    850    14      305
66   - 68  547     635   900    14      363

Customized Chain Stopper
