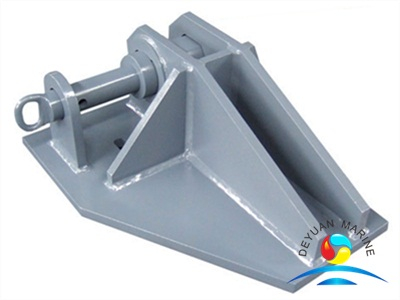

Marine OCIMF Type Towing Bracket To Be Welded on Deck for Towing

Type: OCIMF Type Towing Bracket
Brand: Deyuan Marine
Material: Steel
SWL: 450kn to 4000kn
Function: To be welded on deck for towing
Service life: 10-15 years
Payment Terms: T/T, L/C, Western Union, Paypal

Product Description

Marine OCIMF Type Towing Bracket To Be Welded on Deck for Towing


- Smith towing bracket; OCIMF Type Towing Bracket
- Excellent quality and competitive price .
- Durable, long lifetime.
- Standard or custom made.


Nominal Dia.
(mm)
Dimensions(mm) Mass
(kgs)
SWL
(kN)
MBL
(kN)
A B C D E F G H K R
54 500 555 20 300 259 140 78 118 80 110 118 1000 2000
64 600 625 28 360 300 175 88 122 100 135 184 1500 3000
76 720 800 30 430 360 200 112 170 110 160 312 2000 4000
102 940 1000 40 560 470 260 144 216 140 210 886 3200 6400
114 1100 1180 50 628 548 290 162 250 170 235 1184 3800 7600


Smit Towing Bracket/Emergency Towing Bracket Deck Mounted type is usually used as component part in an emergency towing system, can also be used in their own right for chain connections on a vessel or barge.

Overview:
The brackets can also be used solely for a chain connection on a ship/barge or rig.
Manufactured from high grade alloy steel our Smit Brackets work to 100/200/300/400te loadings and suit chain sizes from 16mm up to 120mm.
The Smit Bracket is a simple yet ultimately, effective design which utlises a sliding pin which locks the mooring chain into place.
With a wide range available, our towing brackets suit the majority fo marine applications including most sized and anchors and mooring chains.
All our brackets are designed to be compatible with the breaking load of the chain being deployed.
Units can be supplied in accordance with classifications societies including Lloyds, ABS, BV or DNV.

Key Features:
For emergency towing systems and chain connections
Deck mounted
Simple & effective design
Suit chains up to 120mm
To be welded on deck for towing
Material: Structural steel
Surface treatment: sandblasting to S2.5 + one layer of shop primer, customized surface treatment available.
Certificate: BV, ABS, LR, DNV
3.1 Certificate acc. to EN10204:2004 on request
3.2 Certificate acc. to EN10204:2004 on request
