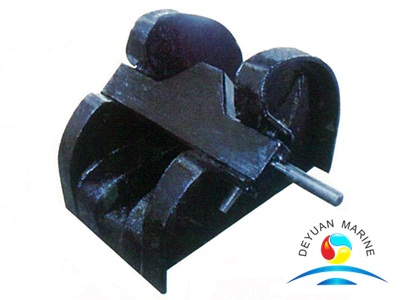

Ship Mooring Cast Steel Lever Type Anchor Chain Stoppers CB*286-84

Brand:Deyuan Marine
Material:Cast Steel
Anchor chain: 12.5mm to 68mm
Standard:CB*286-84
Weight:20kg to 363kg
Payment term:T/T ,L/C,Paypal ,Western Union etc
Delivery Time:15 days
Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS
Availability:

Product Description

Ship Mooring Cast Steel Lever Type Anchor Chain Stoppers CB*286-84


Mooring CB*286-84 chain stoppers is cast steel lever chain stopper , it is commonly used to control the movements of anchor chain and reduce the load of windlass. Anchor Chain Stoppers is workable to grade1,grade 2 and grade 3 anchor chain whose diameter ranges from 12.5mm to 68mm. This cast steel   chain stopper is strictly produced according to the shipbuilding standard CB*286-84.They are approved by ABS , NK , BV, CCS,GL,LR,DNV or other classification societies.


Mooring Chain stopper is a simple pawl set in a bow roller or on deck , Ship Chain Stopper is a device between anchor windlass and hawsepipe, It can fix the anchor chain prevent it roll out. .When the vessel mooring ,Cast lever chain stopper transport the pull strength of anchor and chain to vessel, can reduce the working load and tension for helping to prevent damage to your anchor windlass. When sailing it stand the anchor weight and inertial force.


CB*286-84 Anchor Chain Stoppers Feature:

1.Model Type: Ship Cast Steel Lever Type Anchor Chain Stopper

2.Shipbuilding Standard: CB*286-84

3.Material: cast steel , Cast Iron

4.Nominal Anchor Chain Diameter: 12.5~68mm;

5.Special requirement is available

6.Nominal Weight: 20~363kg

7.Color: red,black,grey or any others for customer’s choice;

8.No cracks, air hole, scar or any defects to influence chain stopper’s strength;

9.Lubricated friction surface and bitumen paint;

10.Qualified quality certificate and the certificates of ABS,CCS,BV,LR,NK etc.;

11.Withstand 80% of Chain Cable's breaking load


We can design and produce the Ship Mooring Chain Stopper according to the drawings and technical requirements you request. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.


Deyuan Marine consists of skilled technical personnel, dedicated salesperson, as well as a highly experienced management. Together we are united in our mission to ensure our clients experience only the best of quality products and after sale services.


Cast Lever Chain Stoppers CB*286-84 Data Sheet:

Nominal DIA of anchor chain
(mm)
12.5  14  16  17.5  19  20.5   22  24  26    28 30   32 34   36 38  40  42   44  46   48 50   52 54  56 58    60  62    64 66    68
B 142   170   193   219   214   274   304   336   366   397   428   457   488   517      547
H     162      190      216      241      270      305      342      378      412      450      491      528      564      600    635
L   235    270    310    345    385    435    490    540    590    640    695    745    795    850    900
welding angle(f)   5    6    6    7    7    9    9    10    10    12    12    13    13    14      14
Weight
(kg)
    20      25      30      37      46      56      69      85      108      139      173      210      255      305    363


If you want to know more details , kindly contact us .
