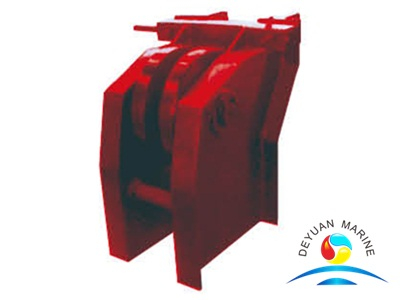

Roller Bar Type Anchor Chain Cable Stopper For Chain Cable

Brand:Deyuan Marine
Material:Casting Steel
Part: Anchor Chain Stopper
Application: Ship
Surface:Gray Zinc Rich Primer
Payment term:T/T ,L/C,Paypal ,Western Union etc
Delivery Time:15 days
Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS
Availability:

Product Description

Roller Bar Type Anchor Chain Cable Stopper For Chain Cable


Roller Bar Chain Cable Stopper is applicable to grade 3 anchor chain cable , material is casting steel , It can withstand 80% of chain cable's breaking load and avoid being permanently deformed. When a ship is sailing or casting anchor, this anchor chain cable stopper is an important device to clamp the anchor chain and help reduce the working load of windlass.


Except roller bar type chain stopper, Deyuan Marine also can supply all other types of chain stoppers such as screw type chain stopper, cast lever chain stopper, pawl type chain stopper, OCIMF type chain stopper and so on.


Anchor Chain Stopper is a simple pawl set in a bow roller or on deck , Chain Cable Stopper is a device between anchor windlass and hawsepipe, It can fix the anchor chain prevent it roll out..When the vessel mooring ,Roller Bar Chain Stopper transport the pull strength of anchor and chain to vessel, can reduce the working load and tension for helping to prevent damage to your anchor windlass. When sailing it stand the anchor weight and inertial force.


Anchor Chain Cable Stopper Detail:

1.Model Type: Roller Bar Type Chain Stopper;

2.Type can supplied: JIS F2033, JIS F2002, JIS F2023, JISF2015,

3.Material: ZG200-400,ZG230-450

4.Applicable to grade 3 chain cable 70~132mm;

5.Weight: 1000~5080kg;

6.Grey epoxy primer, polished,galvanized or bitumen painted;

7.Withstand 80% of chain cable’s minimum breaking load;

8.Competitive price, short delivery, excellent service;

9.Certificate: ABS,CCS,LR,BV,NK etc.;

10.Customized service is available.


Through the past years, we built up good business relationships with our customers all over the world. Our technical staff can make any products according to customer's drawing or sample. Sometimes we can give some suggestions to help our customer to improve the design and make the products work better.


If you are interested in our Chain Stopper For Chain Cable, welcome to send the inquiry or call our sales team directly , we will handle your case quickly and quote for you .


Rollered Bar Type Anchor Chain Cable Stopper For Grade 3 Chain Cable Data Sheet :
Standard: JIS F 2033-1980

No.     73      78      84      90      95      102      107      114      122      132
applicable anchor chain(DIA)   70~73    76~78    81~84    87~90    92~95    97~102    105~107    111~114    117~ 122    127~132
A   730    780    840    900    950    1020    1070    1140    1220    1320
B     715      760      820      890      945      1005      1070      1140      1220      1315
C   700    730    780    840    880    940    990    1040    1100    1170
D   730    780    840    900    950    1020    1070    1140    1220    1320
Weight
(kg)
  1000    1180    1470    1780    2110    2380    2900    3440    4100    5080
