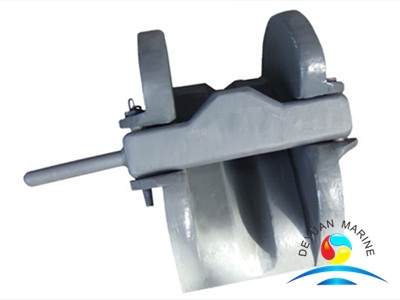

Marine Cast Steel Bar Type Anchor Chain Cable Stoppers JIS F 2015-1987

Brand:Deyuan Marine
Material:Casting Steel
Part: Anchor Chain Stopper
Standard: JIS F 2015-1987
Surface:Gray Zinc Rich Primer
Payment term:T/T ,L/C,Paypal ,Western Union etc
Delivery Time:15 days
Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS

Product Description

Marine Cast Steel Bar Type Anchor Chain Cable Stoppers JIS F 2015-1987

Anchor Chain Cable Stoppers is disposed between the connecting tube and anchor windlass, it is installed in deck and applicable to grade 3 chain cable 70~132mm,marine cast steel anchor for fixing to prevent the chain from slipping out. When at anchor, anchor chain stopper and pull the chain is transmitted to the hull , in order to reduce the load on the windlass to protect the windlass.Withstand the force of gravity and inertia anchor sailing .

JIS F 2015-1987 Chain Cable Stoppers consists of a chain hook, a screw and a short telescopic chains. It is fixed with a shackle on deck when using the anchor chain hook on a horizontal chain link , and then tighten the screws stretching that cho taut chain. Normally , it is associated with spiral chain system supporting the use of a spiral chain stopper auxiliary devices.

Except Marine Bar Type Chain Stoppers, Deyuan Marine also can supply all other types of chain stoppers such as screw type chain stopper, cast lever chain stopper, pawl type chain stopper, OCIMF type chain stopper,Knife-type chain stopper and so on. Per the Knife-type chain stopper is simple structure and rapid operation , but its large size when cumbersome ,generally used only on small and medium sized vessel.

Deyuan Marine is specialized in manufacturing and exporting marine equipment . To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to pre-shipment inspection, we keep an eye on every step t ensure the satisfaction of our customer on quality , Our JIS F 2015-1987 Bar Type Cable Stoppers are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.

Please feel free to contact us if you want to know more information on our Chain Wheel For  Hawse Pipe .

Cast Steel Bar Type Chain Cable Stoppers JIS F 2015-1987 Data Sheet :

Nominal   40    44    48    52    56    60    64    68    73    78
Nominal DIA of anchor chain(mm)  38 40  42 44  46 48   50 52   54 56   58 60   62 64   68 68   70 73   76 78
A     378      412      450      491      528      564      600      635      675      715
B     540      590      640      695      745      795      850      900      960      1020
C   390    424    460    494    530    564    600    636    678    720
D   336    366    397    428    457    488    517    547    582    617
  111    139    176    216    261    319    380    452    561    682
