Product Description

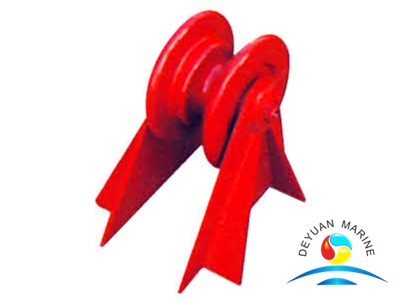

Marine Anchor Chain Wheel For CB/T 290-84 Type Hawse Pipe
Anchor chain wheel are installed between hawse pipe and chain stopper, it is a kind of marine chain roller which is used to avoid the friction between marine anchor chain and hawse pipe. CB/T 290-84 chain wheel for hawse pipe is mainly made of casting steel and carbon fiber steel. Its surface is clean and smooth. There is no any defects such as air hole, crack which may affect chain wheel's strength. The roller is flexible to turn. It is anti-rust as well.
Chain Wheel For Hawse Pipe Feature:
Material: Casting Steel
Standard: CB/T 290-84
Nominal Diameter:14mm~68mm
Weight:8.6kg~663.7kg
Finish:Polished, galvanized or bitumen painted
Application: It main change the cable direction used for guiding ropes in ship mooring and will not breakdown
Warranty: 12 months after delivery
Certificate: CCS,ABS,BV,NK,LR,RINA
Deyuan Marine is specialized in manufacturing and exporting marine equipment . To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to pre-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality , Our Marine Anchor Chain Wheel
are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.
We can also meet your special requirement about the all Marine chain wheel, In order to expand our products into more Market,we wish to seek cooperation possibilities with you.I am sure our business dealings will develop quickly and productivity.
Kindly feel free to contact us if you want to know more information on our Chain Wheel For Hawse Pipe .
Chain Wheel For Hawse Pipe CB/T 290-84 Specification :
DIA of anchor chain(mm) | 12.5 14 | 16 17.5 | 19 20.5 | 22 24 | 26 28 | 30 32 | 34 36 | 38 40 | 42 44 | 46 48 | 50 52 | 54 56 | 58 60 | 62 64 | 66 68 |
H | 112 | 138 | 154 | 176 | 198 | 226 | 248 | 274 | 296 | 324 | 346 | 372 | 394 | 422 | 444 |
L | 176 | 214 | 234 | 254 | 286 | 320 | 350 | 388 | 424 | 454 | 480 | 514 | 542 | 574 | 604 |
L1 | 102 | 130 | 146 | 168 | 192 | 214 | 240 | 266 | 294 | 316 | 338 | 362 | 378 | 402 | 424 |
Weight(kg) | 8.6 | 18 | 26.7 | 39.4 | 58 | 85 | 113.5 | 157.6 | 204 | 257.7 | 310 | 393 | 457.9 | 581.6 | 663.7 |
