Product Description

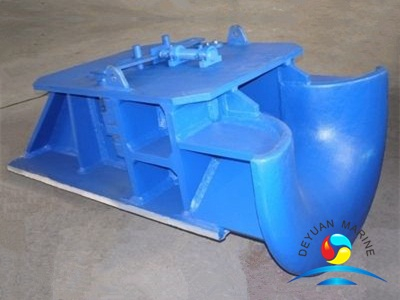

Hot Sell Marine Steel Dual Pawl Type Chain Stopper with CCS certificate
Dual Pawl Type Chain Stopper Horizontal Lead design for breaking strength of anchor chain with 90 degree warp on fairlead surface.Marine Dual Pawl Type Chain Stopper has Self locking of chain and manual operation. Dual pawl design of Marine Steel Dual Pawl Type Chain Stopper can reduce the contact stress in chain.
Deyuan Marine Steel Dual Pawl Type Chain Stopper approved for offshore purpose as request. CCS approved Dual Pawl Type Chain Stoppers have Hydraulic lead type and Vertical Lead type or pneumatic operation as request.
We are not only have Marine Chain Stopper Dual Pawl Type. We also supply screw type cable releaser ,plug type, German standard, dog type ,bar type ,etc.
More information of Horizontal Lead Dual Pawl Type Steel Chain Stopper please contact us directly .Below is the date sheet of Hot Sell Dual Pawl Type Chain Stopper for your reference.
Nominal Dia.of Chain (mm) | Dimensions | ||||||
A | B | C | D | E | F | G | |
76-84 | 2120 | 1200 | 580 | 240 | 1020 | 406 | 520 |
87-92 | 2341 | 1450 | 660 | 260 | 1109 | 424 | 620 |
95-102 | 2848 | 1580 | 700 | 300 | 1250 | 450 | 720 |
105-111 | 2980 | 1640 | 800 | 325 | 1360 | 520 | 792 |
114-120 | 3200 | 1720 | 880 | 416 | 1460 | 610 | 860 |
124-127 | 3600 | 1798 | 980 | 430 | 1580 | 720 | 962 |
