Product Description

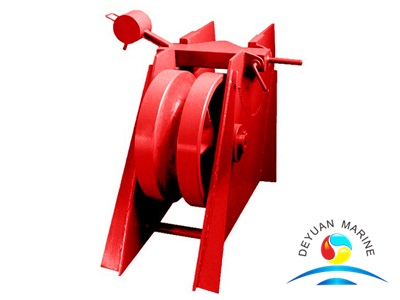

EC approved Cast Steel Marine Roller Lever Chain Stopper CB/T 3844-2000
Marine Roller Lever Chain Stopper is a simple pawl set in the bow roller . Normally install directly on the deck .EC approved Marine Roller Lever Chain Stopper made by cast steel .
The Marine Cast Steel Roller Lever Chain Stopper is used to control and handle the marine anchor chains to protect them slip out when we sail or casts anchor .The EC approved Cast Steel Marine Chain Stopper device between anchor windlass and hawse pipe.
When our vessel mooring in somewhere .The Cast Steel Roller Lever Chain Stopper deliver the strength of marine anchor and chain to the vessel . Cast Steel Marine Roller Lever Chain Stopper can save the working load and protect the anchor windlass .CB/T 3844-2000 Marine Chain Stopper is approved by GL ,ABS ,CCS etc classification societies.
Product feature of EC approved Marine Roller Lever Chain Stopper
1.Good Price of Roller Lever Chain Stopper
2.Professional technical team
3.One stop purchase service
4.Short delivery time
5.With international certificates
6.12 months guarantee
If you have any other requirements of the Offshore Cast Steel Roller Lever Chain Stopper please let us know .
Nominal DIA | DIA of anchor chain(mm) | L | L1 | L2 | L3 | L4 | B | b1 | b2 | b3 | b4 | b5 | b6 | b7 | b8 | D | d1 | d2 | d3 | d4 | h1 | h2 | h3 | t1 | t | Weight (kg) |
44 | 42 44 | 1000 | 370 | 400 | 270 | 80 | 380 | 260 | 250 | 240 | 110 | 10 | 180 | 60 | 140 | 484 | 22 | 69 | 70 | 154 | 392 | 281 | 160 | 32 | 12 | 274 |
48 | 46 48 | 1050 | 420 | 450 | 300 | 85 | 446 | 286 | 250 | 266 | 120 | 190 | 65 | 150 | 528 | 26 | 73 | 74 | 456 | 414 | 306 | 170 | 34 | 13 | 351 | |
52 | 50 52 | 1100 | 440 | 500 | 320 | 90 | 510 | 310 | 250 | 290 | 130 | 200 | 70 | 165 | 572 | 32 | 77 | 78 | 160 | 440 | 330 | 180 | 36 | 14 | 451 | |
56 | 54 56 | 1150 | 450 | 550 | 340 | 92 | 556 | 316 | 250 | 296 | 140 | 210 | 75 | 180 | 600 | 34 | 81 | 84 | 164 | 480 | 354 | 190 | 38 | 15 | 536 | |
60 | 58 60 | 1200 | 470 | 570 | 360 | 95 | 610 | 330 | 280 | 310 | 150 | 220 | 80 | 200 | 620 | 38 | 87 | 92 | 170 | 490 | 378 | 200 | 40 | 16 | 651 | |
64 | 62 64 | 1250 | 500 | 600 | 370 | 100 | 666 | 346 | 280 | 326 | 160 | 230 | 86 | 220 | 640 | 40 | 94 | 95 | 178 | 520 | 400 | 210 | 42 | 17 | 753 | |
68 | 66 68 | 1300 | 550 | 640 | 394 | 105 | 732 | 372 | 280 | 350 | 170 | 11 | 240 | 93 | 230 | 680 | 42 | 101 | 103 | 186 | 540 | 420 | 220 | 45 | 18 | 939 |
73 | 70 73 | 1350 | 570 | 670 | 414 | 110 | 800 | 400 | 280 | 376 | 180 | 12 | 260 | 99 | 240 | 730 | 45 | 109 | 110 | 194 | 580 | 460 | 240 | 48 | 20 | 1178 |
78 | 76 78 | 400 | 610 | 700 | 442 | 115 | 865 | 425 | 280 | 399 | 190 | 13 | 280 | 105 | 250 | 780 | 48 | 116 | 117 | 208 | 630 | 490 | 260 | 50 | 22 | 1422 |
84 | 81 84 | 1460 | 650 | 740 | 475 | 120 | 940 | 454 | 280 | 426 | 200 | 14 | 300 | 112 | 260 | 840 | 50 | 124 | 125 | 220 | 670 | 530 | 280 | 55 | 24 | 1758 |
90 | 87 90 | 1540 | 710 | 780 | 507 | 135 | 1030 | 484 | 280 | 454 | 210 | 15 | 340 | 119 | 270 | 900 | 55 | 132 | 133 | 236 | 720 | 570 | 320 | 60 | 26 | 2171 |
95 | 92 95 | 600 | 740 | 820 | 535 | 140 | 1080 | 508 | 280 | 476 | 220 | 16 | 370 | 126 | 275 | 950 | 58 | 139 | 140 | 248 | 760 | 610 | 345 | 65 | 28 | 2567 |
102 | 97 102 | 1680 | 790 | 870 | 572 | 145 | 1150 | 540 | 280 | 506 | 230 | 17 | 400 | 134 | 290 | 1020 | 60 | 148 | 149 | 264 | 800 | 650 | 375 | 70 | 30 | 2755 |
107 | 105 107 | 1750 | 840 | 900 | 600 | 150 | 1210 | 569 | 280 | 533 | 240 | 18 | 420 | 139 | 295 | 1070 | 63 | 154 | 155 | 274 | 860 | 690 | 395 | 75 | 32 | 3840 |
114 | 111 114 | 1820 | 880 | 940 | 637 | 160 | 1270 | 598 | 280 | 560 | 250 | 19 | 450 | 147 | 305 | 1140 | 68 | 163 | 164 | 290 | 910 | 740 | 425 | 80 | 34 | 4302 |
122 | 117 122 | 1880 | 930 | 101C | 679 | 165 | 1340 | 632 | 280 | 592 | 260 | 20 | 490 | 156 | 325 | 1220 | 70 | 173 | 174 | 308 | 980 | 790 | 465 | 85 | 36 | 5326 |
132 | 124 132 | 1960 | 1000 | 1080 | 730 | 175 | 1440 | 674 | 280 | 632 | 270 | 21 | 510 | 167 | 350 | 1320 | 75 | 185 | 186 | 328 | 1060 | 860 | 490 | 90 | 38 | 6244 |
