Product Description
819 Series Wire Rope Vibration Isolators
Product introduction
The 819 Series Wire Rope Vibration Isolators represent an advanced generation of isolation solutions, engineered for extreme durability and superior multi-directional performance in the most demanding applications. Building upon proven wire rope technology, this series features an optimized design that delivers exceptional shock absorption, vibration damping, and noise reduction for critical equipment.
Core Technology & Design
At the heart of the 819 Series is its robust construction, utilizing high-strength, corrosion-resistant stainless steel wire ropes intricately wound and locked within precision-machined aluminum alloy or stainless steel frames. This patented configuration creates a highly effective non-linear stiffness characteristic, providing soft isolation under normal vibration yet firm resistance against large shock impacts.

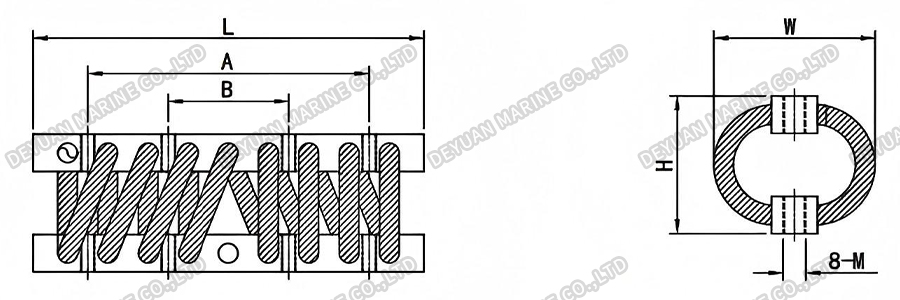

819 series antisymmetric (Clamping)

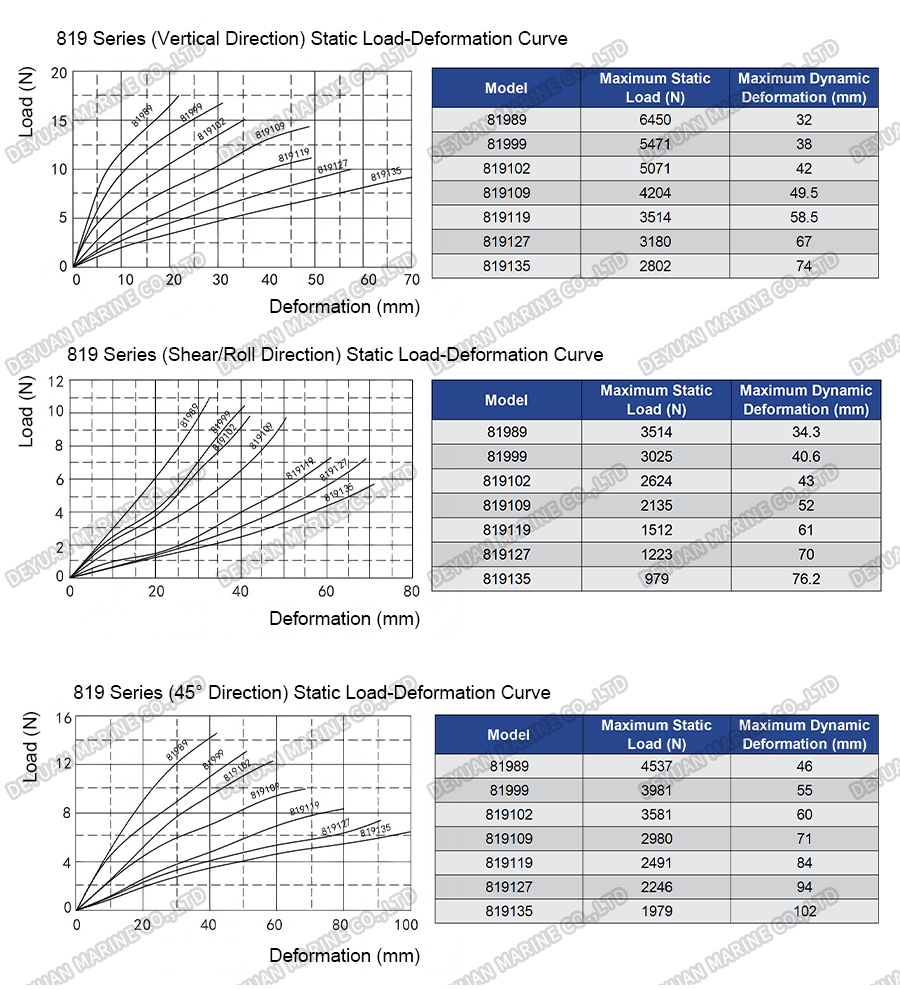

Product Parameters
| Model | External Dimensions (mm) | Threaded Hole | |||||
| L | A | B | H | W | M | ||
| 81989 | 267 | 191 | 82 | 89 | 102 | M10x1.5 | Smooth Hole or Countersunk Hole Available |
| 81999 | 99 | 112 | |||||
| 819102 | 102 | 121 | |||||
| 819109 | 109 | 135 | |||||
| 819119 | 119 | 152 | |||||
| 819127 | 127 | 165 | |||||
| 819135 | 135 | 178 | |||||
Key Features & Benefits
Multi-Axis Isolation
High Damping Capacity
Environmental Resilience
Long Service Life & Maintenance-Free
Customizable Configurations
Installation method
