Product Description

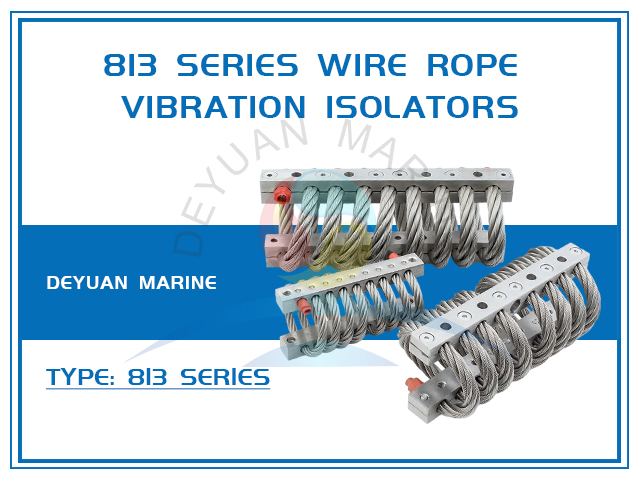

813 Series Wire Rope Vibration Isolators
Product introduction
Specialized design elements of the 813 Series include enhanced cable routing geometry that maximizes energy dissipation through controlled friction between individual wire strands. This intrinsic damping mechanism requires no external fluids or elastomers, guaranteeing consistent performance across extreme temperature ranges from -65°C to +300°C (-85°F to +572°F). The all-metal construction eliminates aging concerns associated with polymer-based isolators and resists degradation from oils, fuels, ozone, and UV exposure.
813 series symmetrical (pressurized)

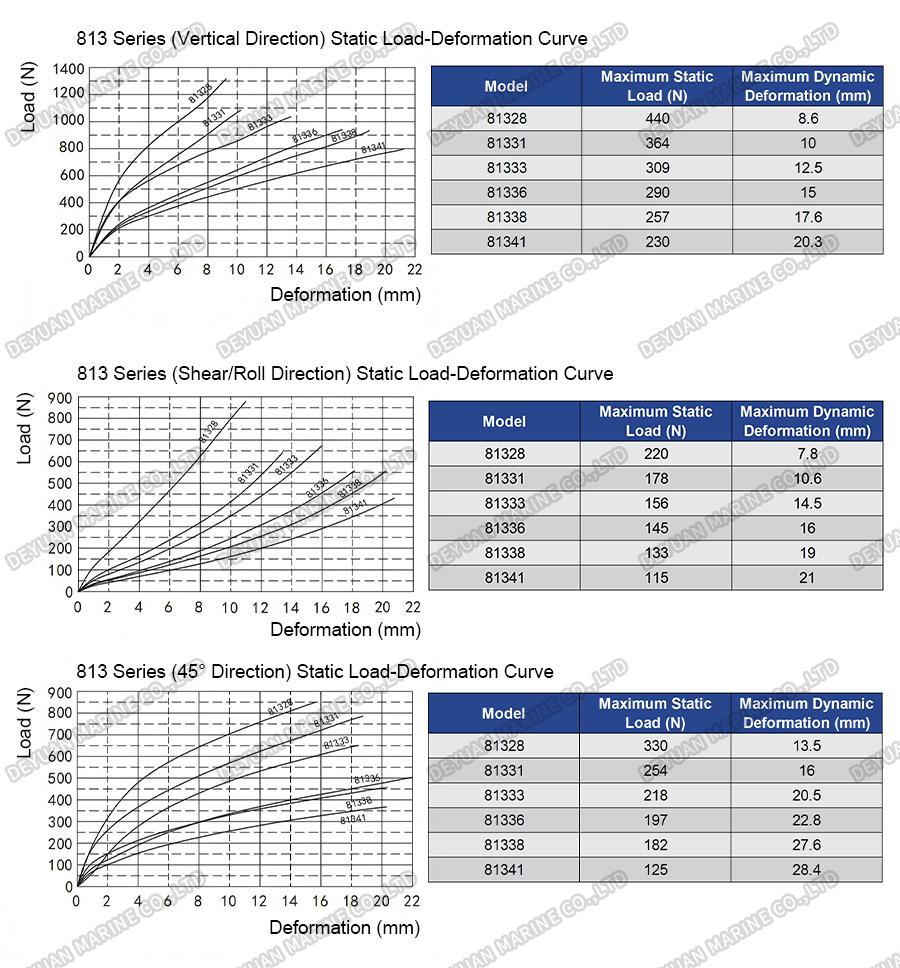

Product Parameters

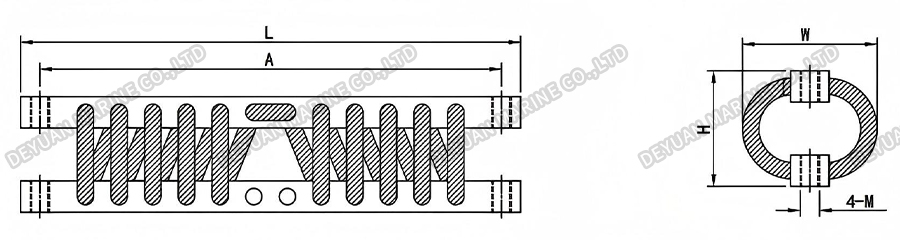

| Model | External Dimensions(mm) | Threaded Hole | ||||
| L | A | H | W | M | ||
| 81328 | 127 | 114 | 28 | 37 | M8x1.25 | Smooth Hole or Countersunk Hole Available |
| 81331 | 31 | 40 | ||||
| 81333 | 33 | 42 | ||||
| 81336 | 36 | 45 | ||||
| 81338 | 38 | 47 | ||||
| 81341 | 41 | 50 | ||||
Applications
Suitable for control systems, transmission protection devices, communication devices, medical equipment, mobile electronic instruments, and other applications requiring vibration isolation, buffering, and energy absorption in ships, military, chemical, and aviation equipment.
Installation method
