Product Description

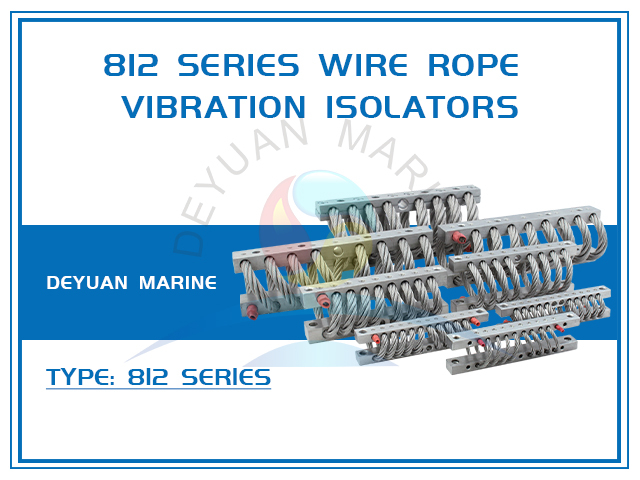

812 Series Wire Rope Vibration Isolators
Product introduction
The 812 Series Wire Rope Isolators represent a premium solution for advanced shock and vibration control in demanding applications. Engineered with precision, these isolators utilize stranded stainless steel wire ropes, securely clamped in a unique configuration between aluminum alloy retainers. This innovative design provides exceptional multi-axis isolation, effectively damping vibrations and absorbing high-impact shocks from all directions.
Their core strength lies in an optimal balance of stiffness and damping, offering superior protection for sensitive equipment. The all-metal construction ensures long-term reliability, corrosion resistance, and stable performance across a wide temperature range, making them ideal for harsh environments. Key benefits include significant attenuation of resonant vibrations, protection against mechanical fatigue, and isolation of delicate instruments from disruptive forces.
812 series symmetrical (pressurized)

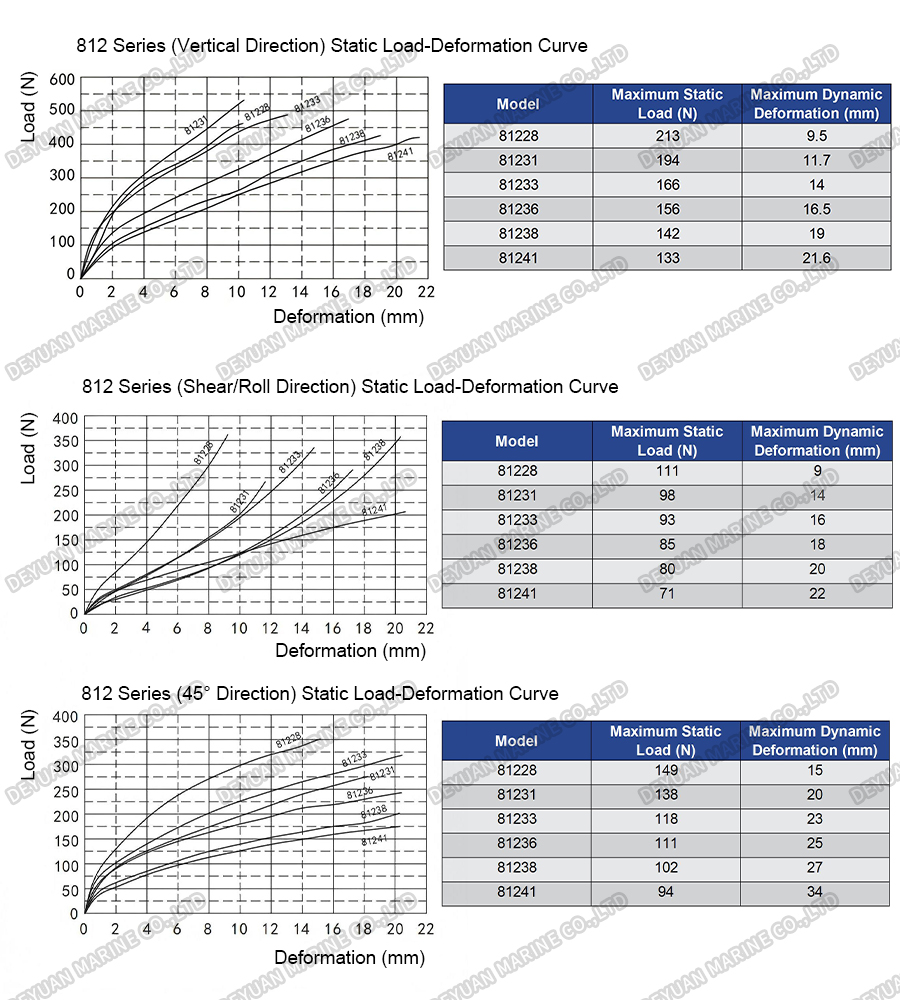

Product Parameters

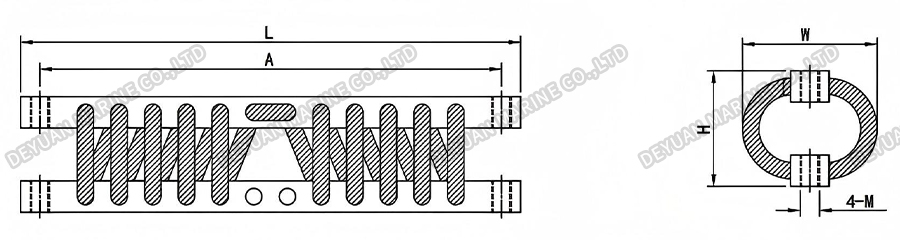

| Model | External Dimensions(mm) | Threaded Hole | ||||
| L | A | H | W | M | ||
| 81228 | 127 | 114 | 28 | 36 | M6x1 | Smooth Hole or Countersunk Hole Available |
| 81231 | 31 | 38 | ||||
| 81233 | 33 | 41 | ||||
| 81236 | 36 | 43 | ||||
| 81238 | 38 | 46 | ||||
| 81241 | 41 | 48 | ||||
Applications
Suitable for control systems, transmission protection devices, communication devices, medical equipment, mobile electronic instruments, and other applications requiring vibration isolation, buffering, and energy absorption in ships, military, chemical, and aviation equipment.
Installation method
