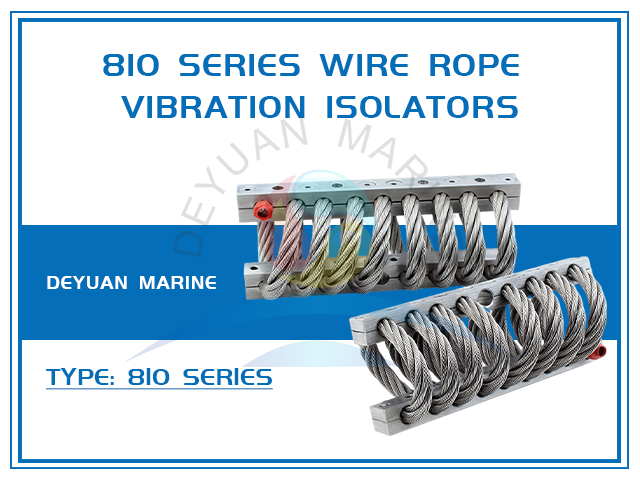

810 Series Wire Rope Vibration Isolators
Product introduction
The 810 Series represents a breakthrough in vibration control technology, engineered to provide superior isolation and damping for a wide range of industrial and commercial applications. This series utilizes advanced wire rope isolator technology, offering unmatched flexibility and durability in harsh operating environments.
810 series anti-symmetric (aluminum sheet pressed)

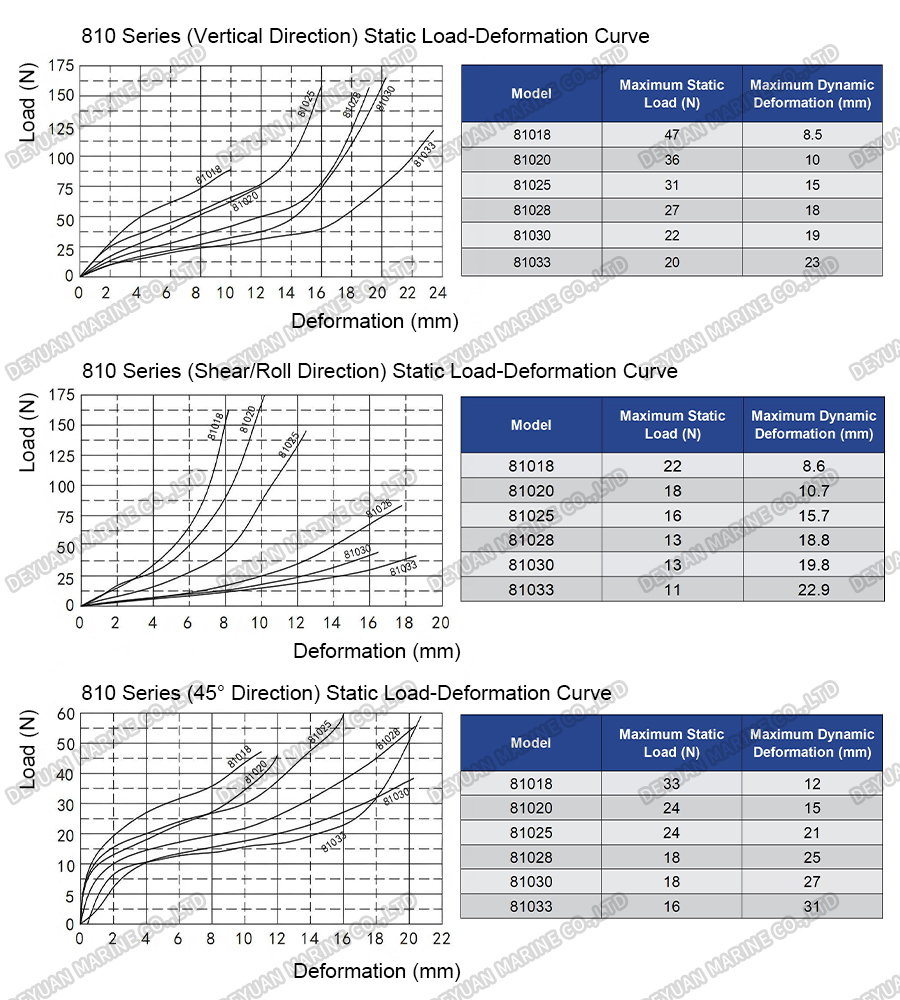

Product Parameters

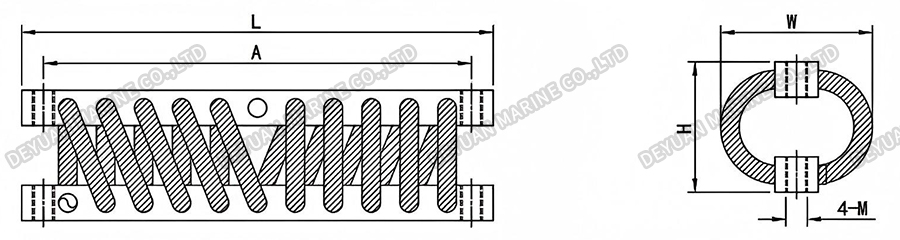

| Model | External Dimensions(mm) | Threaded Hole | ||||
| L | A | H | W | M | ||
| 81018 | 80 | 68 | 18 | 25 | M5×0.8 | Smooth Hole or Countersunk Hole Available |
| 81020 | 20 | 28 | ||||
| 81025 | 25 | 30 | ||||
| 81028 | 28 | 33 | ||||
| 81030 | 30 | 36 | ||||
| 81033 | 33 | 38 | ||||
Applications
Suitable for control systems, transmission protection devices, communication devices, medical equipment, mobile electronic instruments, and other applications requiring vibration isolation, buffering, and energy absorption in ships, military, chemical, and aviation equipment.
Installation method
