Product Description
8112 Series Wire Rope Vibration Isolators
Product introduction
The 8112 Series Wire Rope Vibration Isolators are engineered as premium solutions for demanding industrial applications requiring robust vibration control and shock absorption. This series combines advanced materials science with precision engineering to deliver exceptional performance in protecting sensitive equipment across multiple sectors.
Core Technology and Design Features
1. Advanced Wire Rope Configuration
Multi-strand Architecture: Utilizes high-tensile stainless steel cables arranged in optimized geometric patterns
Energy Dissipation Design: Specialized rope-laying technique maximizes internal friction for superior damping
All-Metal Construction: Eliminates aging concerns associated with elastomeric materials
2. Performance Characteristics
Tri-Axial Isolation: Effective vibration control in vertical, horizontal, and lateral directions
Broad Frequency Range: Optimal performance from 5Hz to 500Hz
Temperature Resilience: Stable operation from -80°C to +300°C
Corrosion Resistance: Suitable for harsh environments including marine and chemical applications
8112 series antisymmetric (Clamping)
Product Parameters

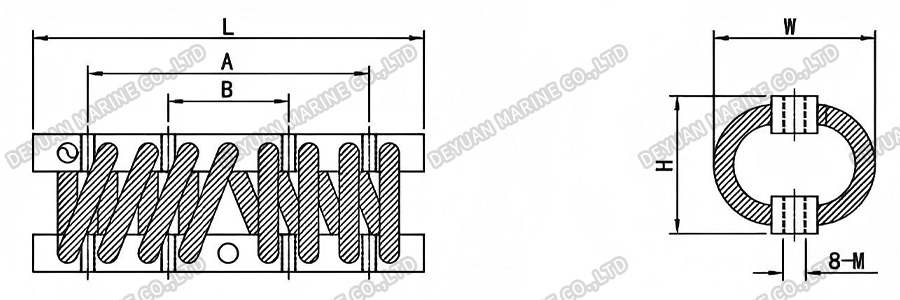

| Model | External Dimensions (mm) | Threaded Hole | |||||
| L | A | B | H | W | M | ||
| 8112178 | 521 | 378 | 162 | 178 | 210 | M18x2.5 | Smooth Hole or Countersunk Hole Available |
| 8112216 | 216 | 248 | |||||
Installation method
