Product Description

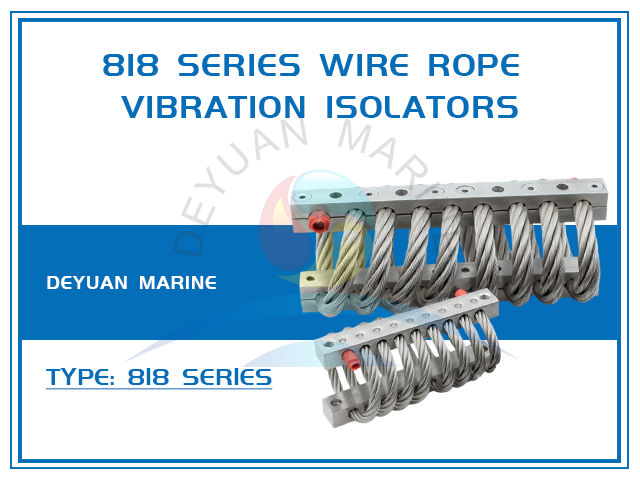

818 Series Wire Rope Vibration Isolators
Product introduction
The Model 818 Wire Rope Vibration Isolator is a high-performance, versatile solution designed for superior shock and vibration control across a wide range of industrial applications. Engineered with durability and reliability at its core, this isolator utilizes a unique configuration of stainless steel wire ropes looped and secured within heavy-duty aluminum alloy frames.
Its primary function is to protect sensitive equipment by effectively isolating and damping harmful vibrations, shocks, and noise. The clever wire rope design provides excellent three-dimensional isolation—effectively absorbing impacts and vibrations from all directions (vertical, horizontal, and lateral). This makes the Model 818 ideal for challenging environments where multi-axis motion is present.

818 series antisymmetric (Clamping)

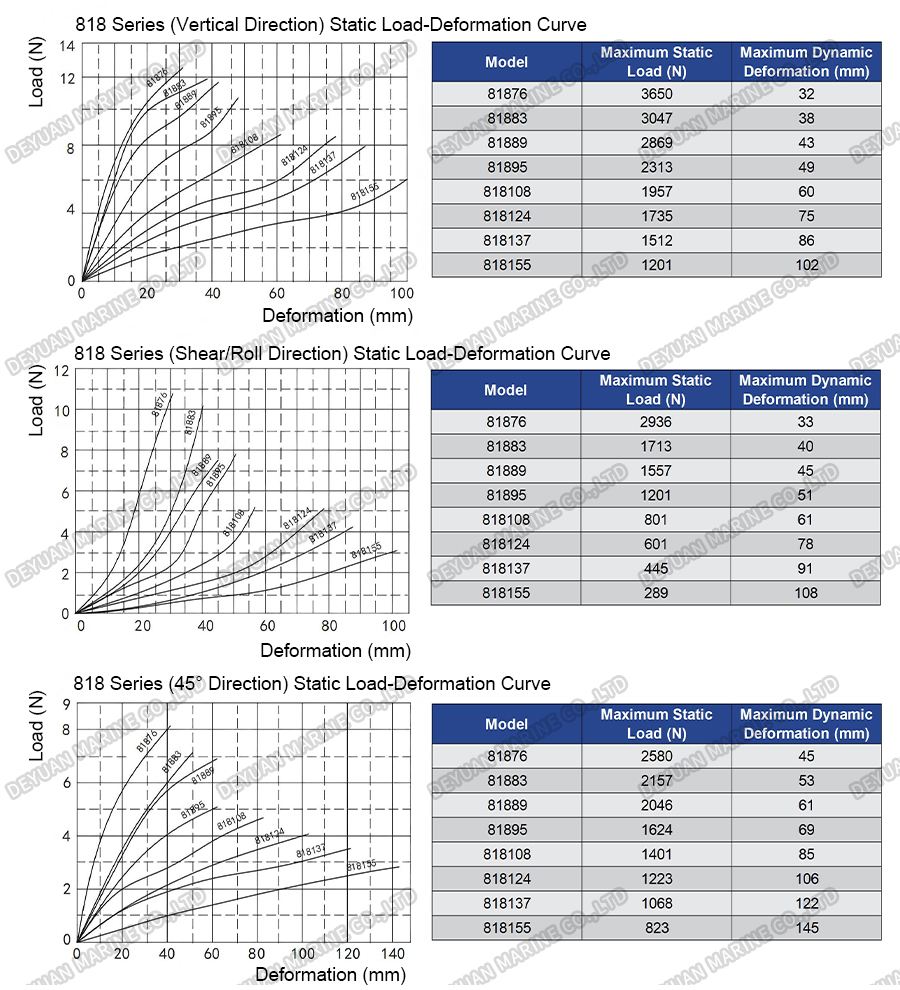

Product Parameters

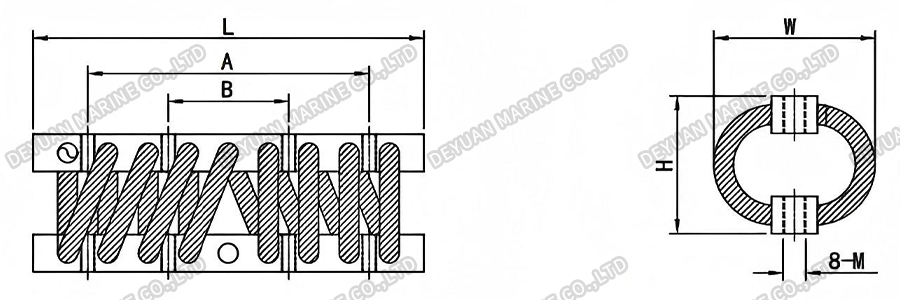

| Model | External Dimensions (mm) | Threaded Hole | |||||
| L | A | B | H | W | M | ||
| 81876 | 216 | 156 | 66.5 | 76 | 92 | M8x1.25 | Smooth Hole or Countersunk Hole Available |
| 81883 | 83 | 102 | |||||
| 81889 | 89 | 105 | |||||
| 81895 | 95 | 121 | |||||
| 818108 | 108 | 133 | |||||
| 818124 | 124 | 144 | |||||
| 818137 | 137 | 156 | |||||
| 818155 | 155 | 180 | |||||

Installation method
