Product Description

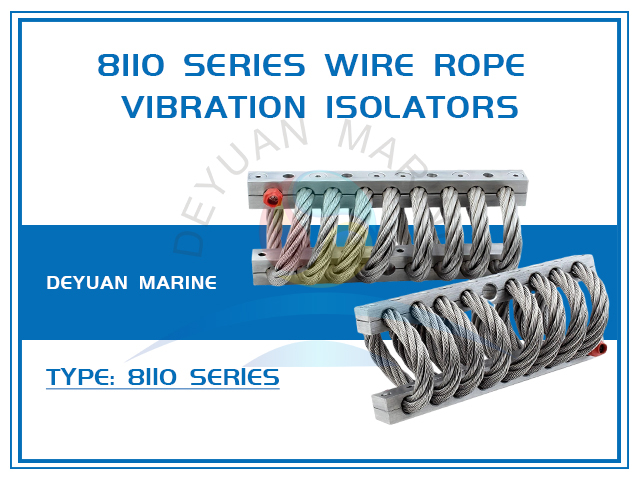

8110 Series Wire Rope Vibration Isolators
Product introduction
The 8110 Series Wire Rope Vibration Isolators are engineered as the definitive high-end solution for protecting mission-critical systems against the most severe shock and vibration environments. Designed for uncompromising reliability, this series incorporates next-generation enhancements to deliver unparalleled isolation performance, structural integrity, and long-term stability.
Advanced Engineering for Extreme Performance
The 8110 Series features an evolved, high-density stainless steel wire rope configuration, precision-machined and permanently locked within a reinforced alloy or marine-grade stainless steel frame. This construction achieves an optimal balance between flexibility for vibration isolation and high ultimate strength for extreme shock loads, providing a predictable and durable performance curve across its entire service life.
8110 series antisymmetric (Clamping)

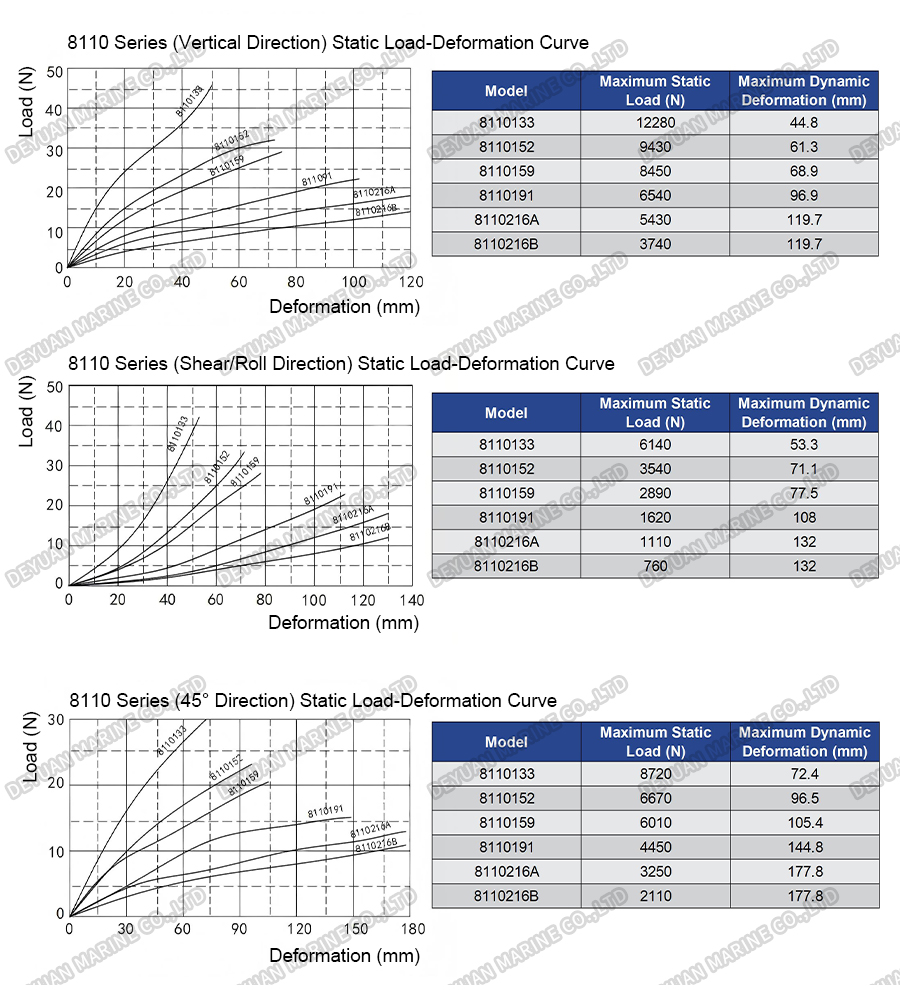

Product Parameters

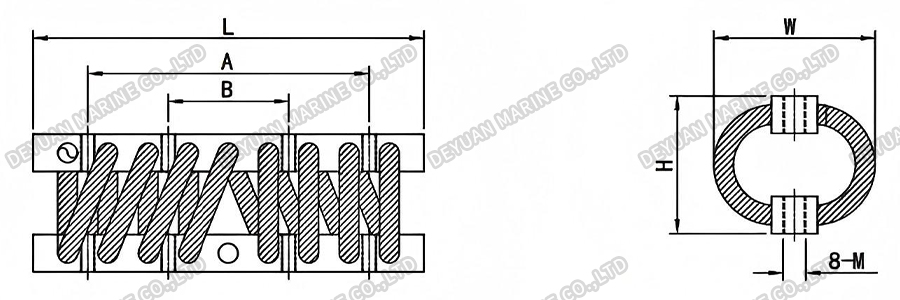

| Model | External Dimensions (mm) | Threaded Hole | |||||
| L | A | B | H | W | M | ||
| 8110133 | 368 | 267 | 114 | 133 | 140 | M12x1.75 | Smooth Hole or Countersunk Hole Available |
| 8110152 | 152 | 165 | |||||
| 8110159 | 159 | 178 | |||||
| 8110191 | 191 | 210 | |||||
| 8110216A | 216 | 235 | |||||
| 8110216B | 216 | 286 | |||||
Key Features & Advantages
Superior Attenuation Across All Axes
Ultra-High Damping & Resonance Control
Enhanced Environmental Ruggedness
Extended Fatigue Life
Precision-Engineered Load Ranges
Installation method
