Product Description

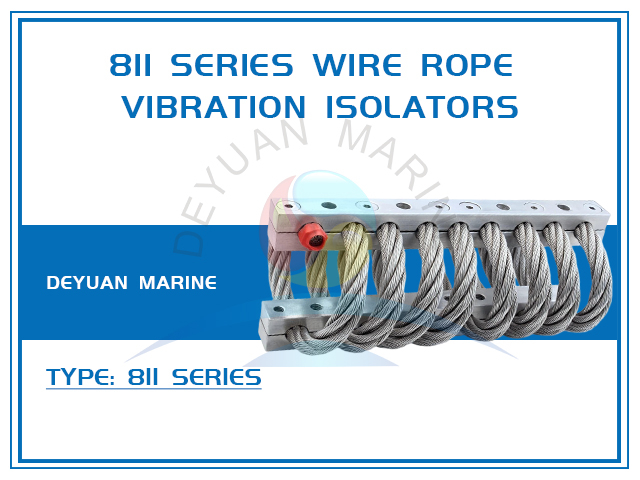

811 Series Wire Rope Vibration Isolators
Product introduction
The 811 Series represents the next evolution in precision vibration control technology, engineered to provide exceptional multi-axis isolation for sensitive equipment and demanding industrial applications. Building upon proven wire rope isolator principles, the 811 Series incorporates advanced design refinements for enhanced performance and adaptability.
811 series symmetrical (pressurized)

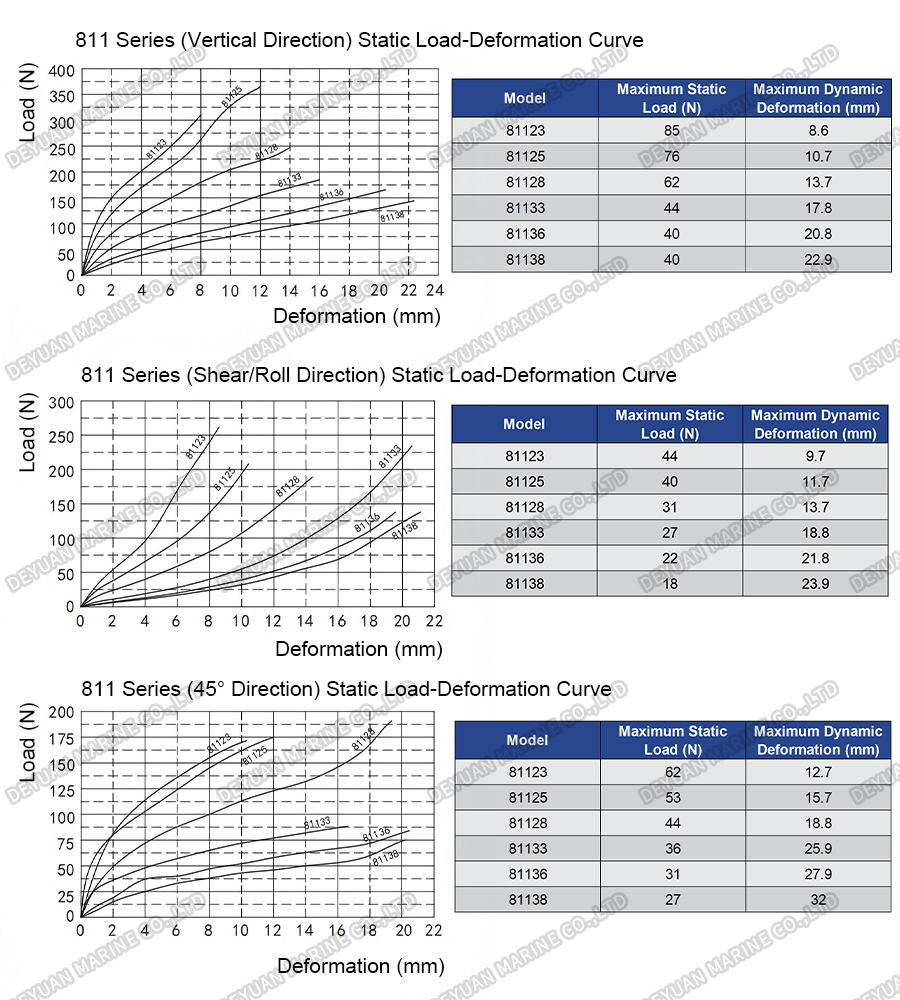

Product Parameters

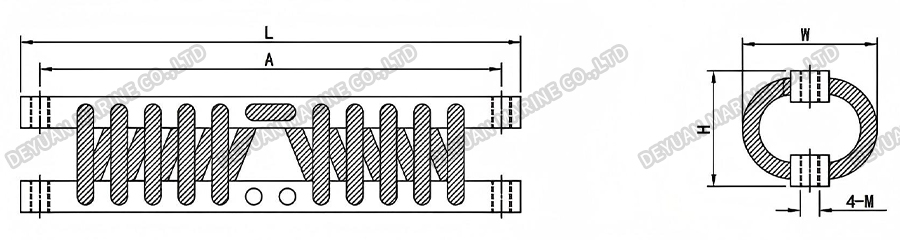

| Model | External Dimensions (mm) | Threaded Hole | ||||
| L | A | H | W | M | ||
| 81123 | 112 | 100 | 23 | 28 | M6x1 | Smooth Hole or Countersunk Hole Available |
| 81125 | 25 | 31 | ||||
| 81128 | 28 | 33 | ||||
| 81133 | 33 | 38 | ||||
| 81136 | 36 | 41 | ||||
| 81138 | 38 | 43 | ||||
Applications
Suitable for control systems, transmission protection devices, communication devices, medical equipment, mobile electronic instruments, and other applications requiring vibration isolation, buffering, and energy absorption in ships, military, chemical, and aviation equipment.
Installation method
