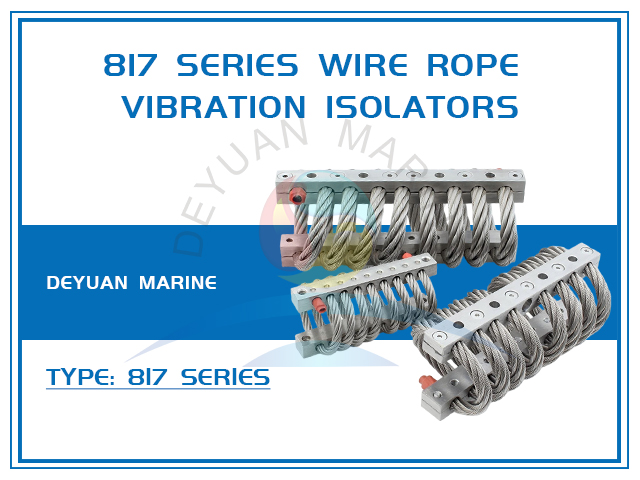

817 Series Wire Rope Vibration Isolators
Product introduction
The 817 Series Wire Rope Vibration Isolator represents a premium, heavy-duty solution engineered for applications demanding exceptional shock absorption, vibration isolation, and long-term reliability in extreme environments. Its advanced design, featuring high-strength stainless steel wire ropes in a precision-engineered geometric configuration within robust alloy or steel frames, provides superior multi-axis damping for the most sensitive and mission-critical equipment.
This all-metal isolator is specifically developed to outperform conventional elastomeric mounts by offering consistent performance across a vast temperature range and immunity to environmental degradation. The 817 Series is the definitive choice for industries where equipment protection directly impacts operational safety, system integrity, and cost of ownership.
817 series antisymmetric (suppression)

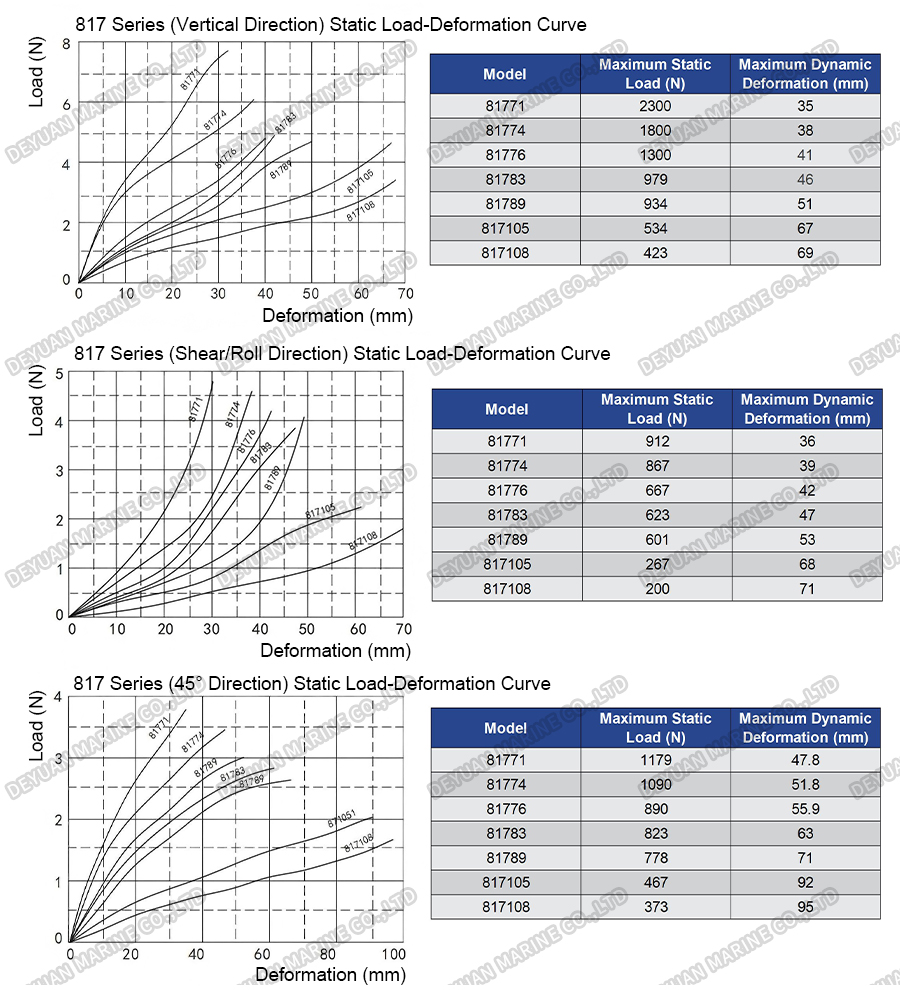

Product Parameters:

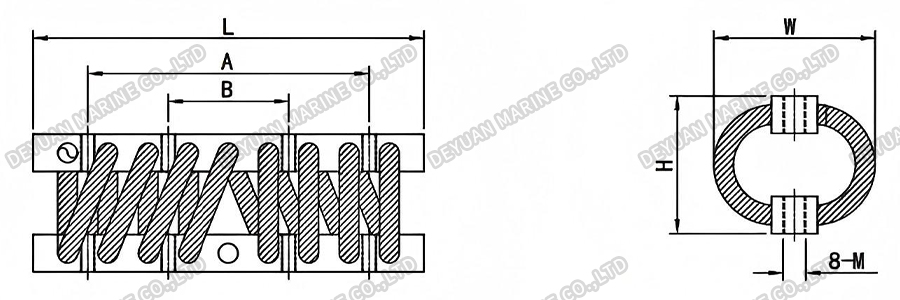

| Model | External Dimensions (mm) | Threaded Hole | |||||
| L | A | B | H | W | M | ||
| 81771 | 216 | 166 | 71 | 71 | 84 | M8x1.25 | Smooth Hole or Countersunk Hole Available |
| 81774 | 74 | 89 | |||||
| 81776 | 76 | 105 | |||||
| 81783 | 83 | 108 | |||||
| 81789 | 89 | 108 | |||||
| 817105 | 105 | 121 | |||||
| 817108 | 108 | 140 | |||||
Key Engineering Features & Benefits
*Optimized for High-Energy Shock & Broadband Vibration
*Unmatched Environmental Durability
*True Three-Directional Isolation
*High Load Capacity with Precision Damping
*Enhanced Stability & Fatigue Resistance
*Easy Installation & Integration
Installation method:
