Product Description

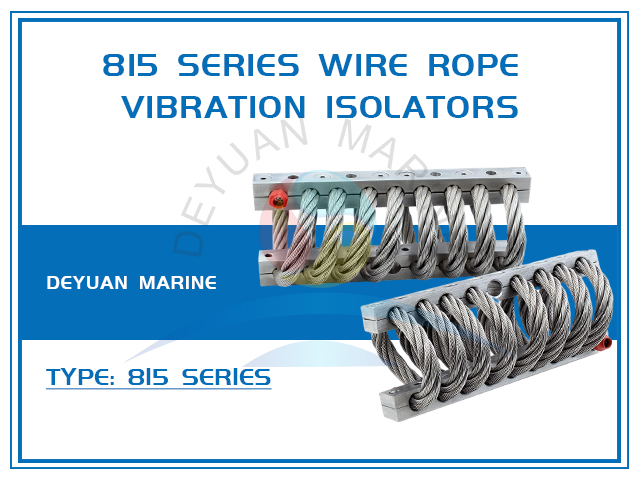

815 Series Wire Rope Vibration Isolators
Product introduction
The 815 Series Wire Rope Vibration Isolator is an advanced, high-performance solution engineered to protect sensitive equipment and structures from the damaging effects of shock, vibration, and noise. Utilizing a unique design of stainless steel wire ropes arranged in a helical configuration within durable alloy frames, it delivers exceptional isolation performance across a wide frequency range.
Crafted for resilience, its all-metal construction ensures outstanding environmental resistance, performing reliably in extreme temperatures, corrosive atmospheres, and demanding conditions where elastomeric isolators would degrade. The 815 Series excels in multi-directional isolation, effectively dampening vibrations from all three axes—vertical, horizontal, and lateral.
815 series antisymmetric (suppression)

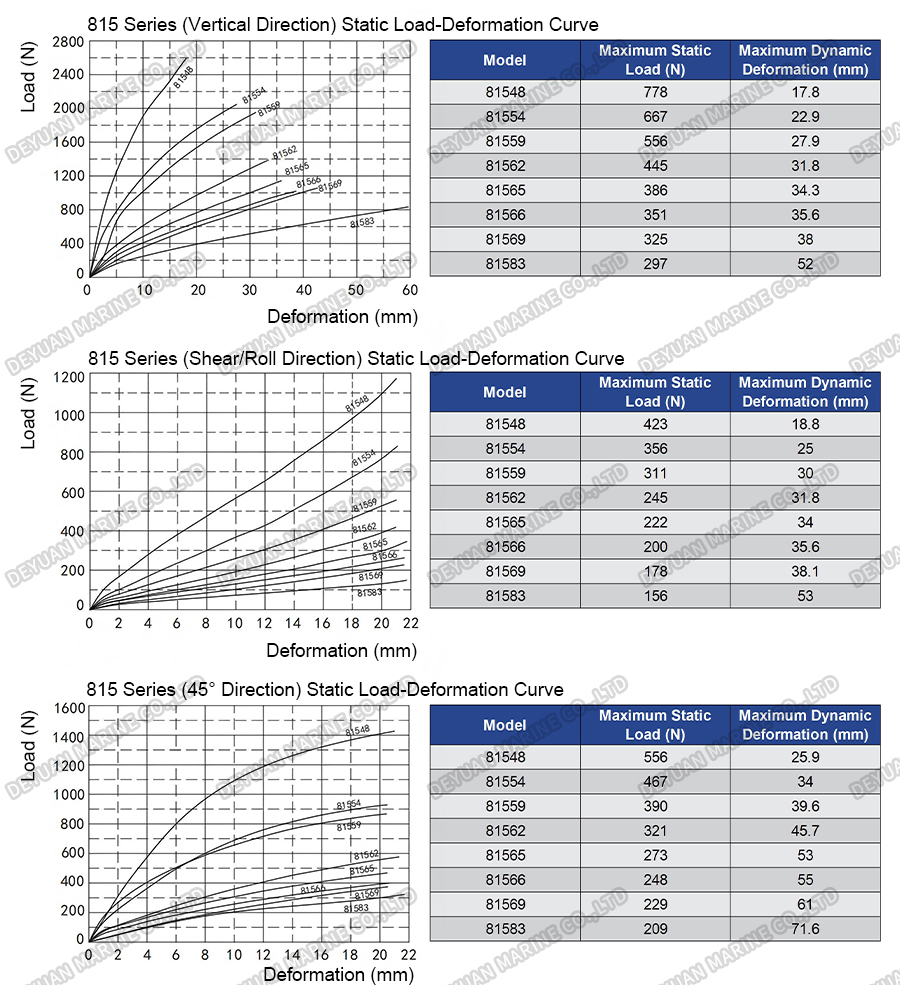

Product Parameters

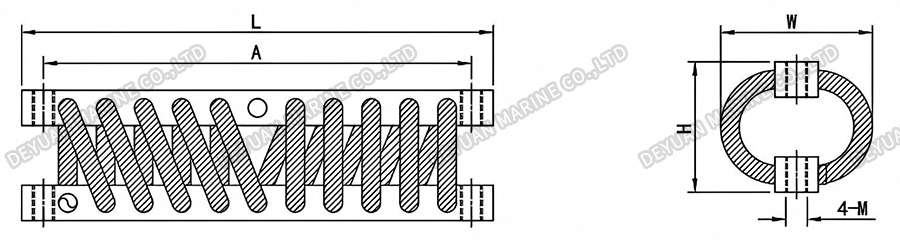

| Model | External Dimensions (mm) | Threaded Hole | ||||
| L | A | H | W | M | ||
| 81548 | 146 | 131 | 48 | 56 | M8x1.25 | Smooth Hole or Countersunk Hole Available |
| 81554 | 54 | 64 | ||||
| 81559 | 59 | 71 | ||||
| 81562 | 62 | 80 | ||||
| 81565 | 65 | 89 | ||||
| 81566 | 66 | 95 | ||||
| 81569 | 69 | 100 | ||||
| 81583 | 83 | 108 | ||||
Key Features & Benefits
Superior Shock & Vibration Damping
Environmental Robustness
Multi-Directional Isolation
High Load Capacity & Stability
Easy Installation
Installation method
