Product Description

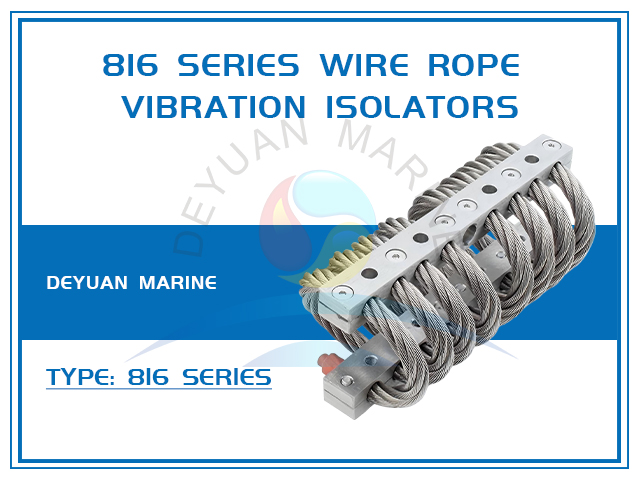

816 Series Wire Rope Vibration Isolators
Product introduction
The 816 Series Wire Rope Vibration Isolator is an engineered, heavy-duty isolation solution designed to protect critical equipment and structural components from severe shock, high-impact loads, and persistent broadband vibrations. Featuring a robust construction of precision-stranded stainless steel wire ropes secured within reinforced alloy or steel mounting bases, it delivers superior damping performance and long-term reliability in the most demanding environments.
Unlike conventional elastomeric mounts, the 816 Series utilizes a multi-rope helical configuration that provides exceptional energy dissipation and three-axis isolation in a compact, all-metal package. This design ensures consistent performance under extreme operational conditions, making it the ideal choice for military, aerospace, industrial, and marine applications where failure is not an option.
816 series antisymmetric (suppression)

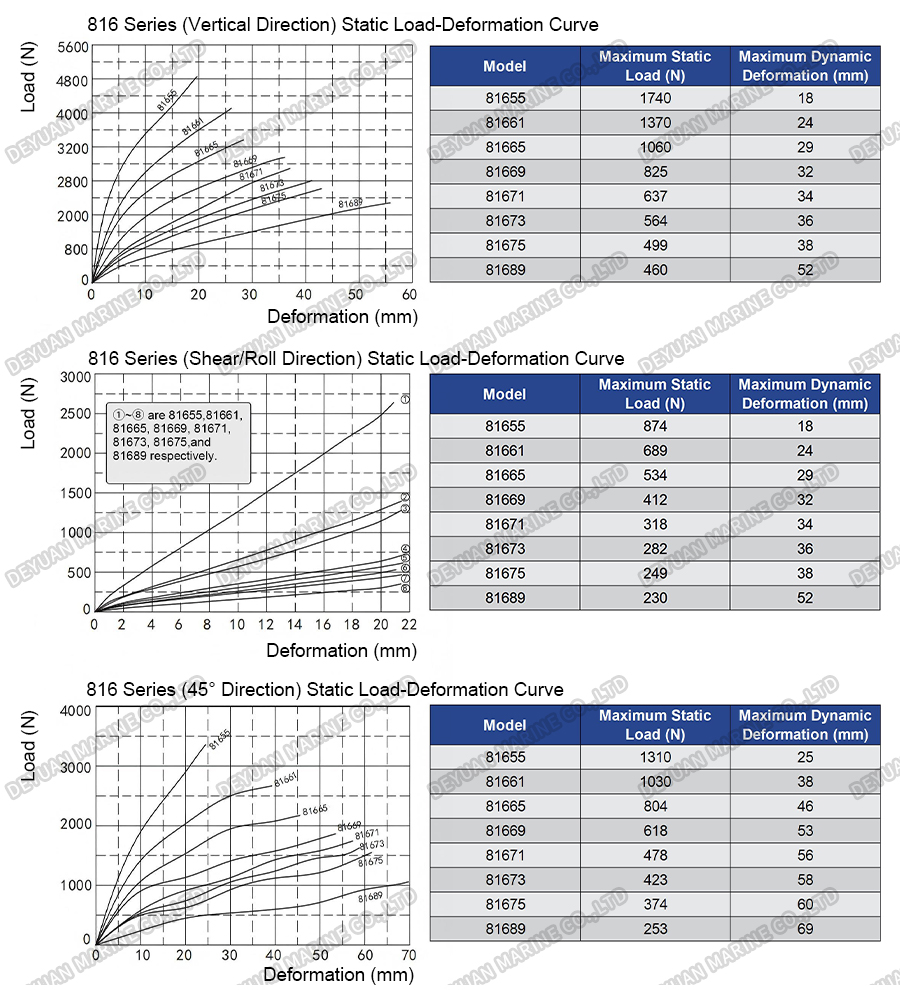

Product Parameters:
| Model | External Dimensions (mm) | Threaded Hole | ||||
| L | A | H | W | M | ||
| 81655 | 146 | 131 | 55 | 60 | M8x1.25 | Smooth Hole or Countersunk Hole Available |
| 81661 | 61 | 67 | ||||
| 81665 | 65 | 74 | ||||
| 81669 | 69 | 83 | ||||
| 81671 | 71 | 92 | ||||
| 81673 | 73 | 99 | ||||
| 81675 | 75 | 104 | ||||
| 81689 | 89 | 111 | ||||
Core Features & Advantages:
*Heavy-Duty Shock & Vibration Attenuation
*All-Metal, Maintenance-Free Construction
*Exceptional Environmental Resilience
*True Multi-Axis Isolation
*High Static Load Capacity & Stability
*Easy Integration
Installation method:
