Product Description
814 Series Wire Rope Vibration Isolators
Product introduction
The 814 Series Wire Rope Isolators are engineered for precision vibration isolation in applications demanding superior dynamic stability and low-frequency attenuation. Designed to protect sensitive equipment from environmental vibrations and minor shock events, this series focuses on providing smooth, controlled isolation where operational accuracy is paramount.

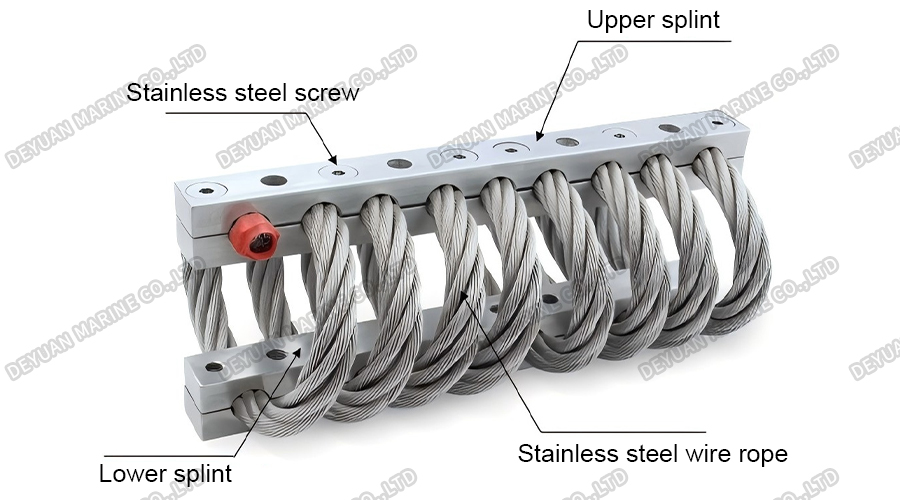

Constructed with a high-density configuration of stainless steel wire ropes secured between precision-machined retainers, the 814 Series offers anisotropic stiffness—delivering firm support in the vertical axis while allowing compliant, multi-directional absorption of lateral and horizontal vibrations. This design effectively decouples equipment from structural-borne vibrations and airborne disturbances, minimizing resonant amplification and ensuring consistent performance.
814 series symmetrical (pressurized)

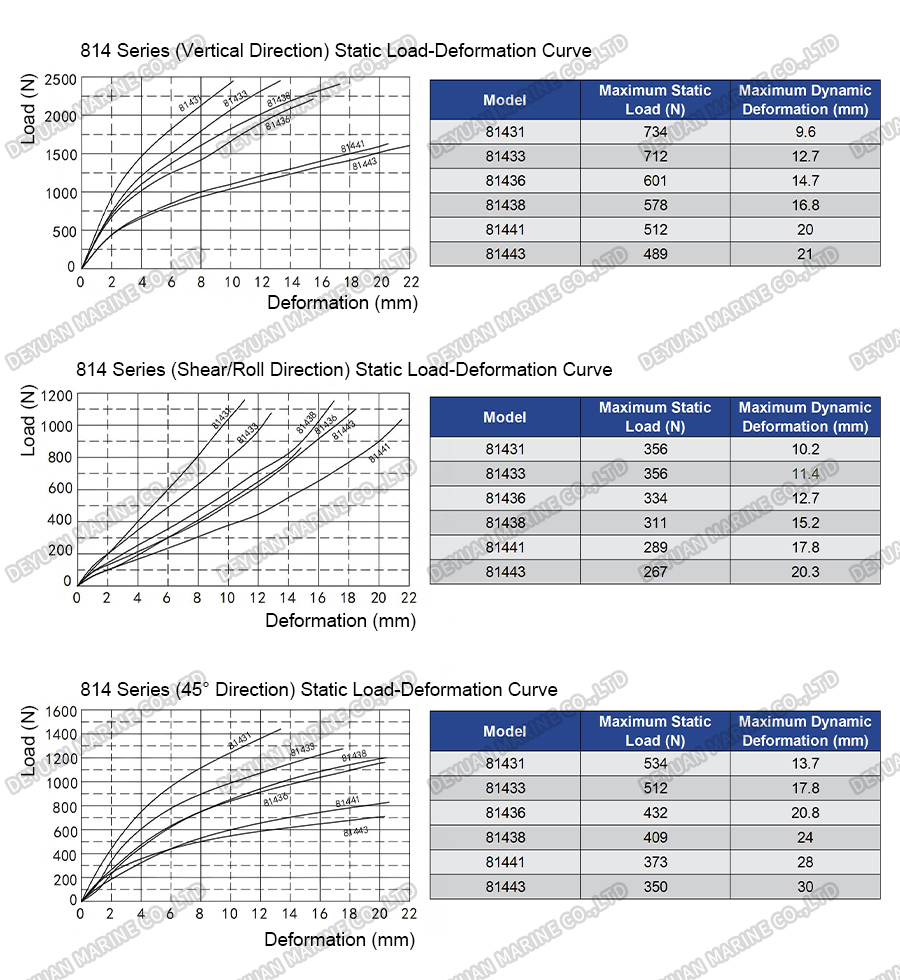

Product Parameters

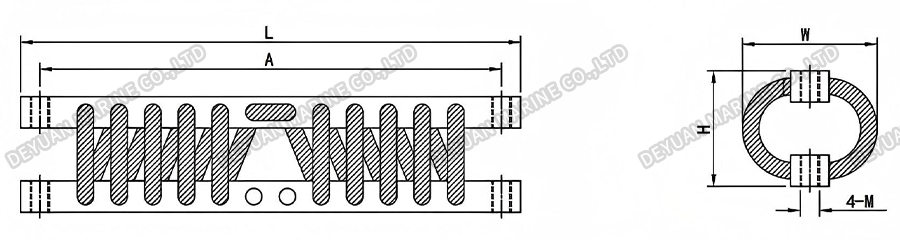

| Model | External Dimensions (mm) | Threaded Hole | ||||
| L | A | H | W | M | ||
| 81431 | 127 | 114 | 31 | 36 | M8x1.25 | Smooth Hole or Countersunk Hole Available |
| 81433 | 33 | 38 | ||||
| 81436 | 36 | 41 | ||||
| 81438 | 38 | 43 | ||||
| 81441 | 41 | 46 | ||||
| 81443 | 43 | 48 | ||||
Applications
Suitable for control systems, transmission protection devices, communication devices, medical equipment, mobile electronic instruments, and other applications requiring vibration isolation, buffering, and energy absorption in ships, military, chemical, and aviation equipment.

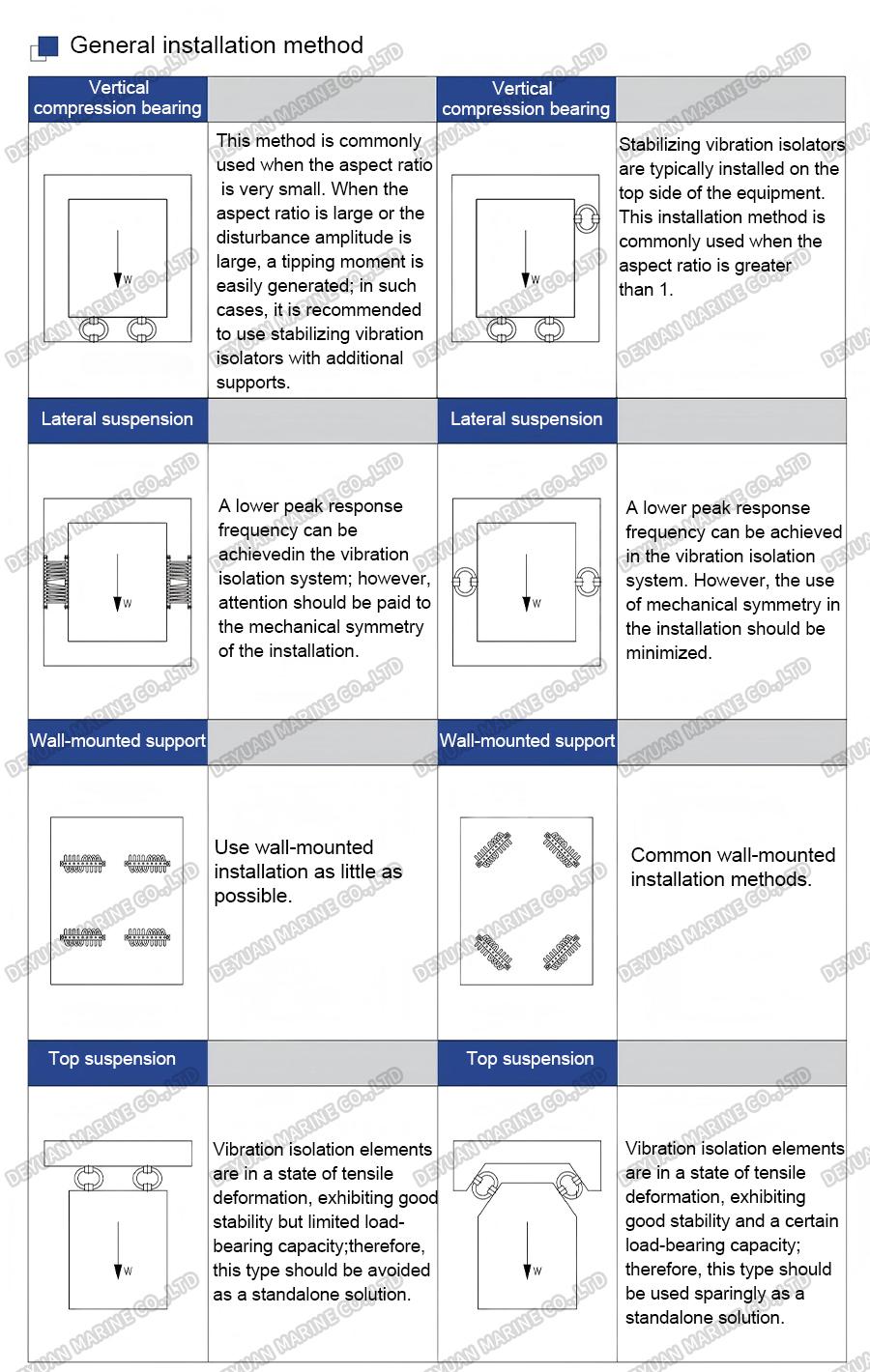

Installation method
