6×K19S Class Compacted Strand Wire Rope

Brand: DEYUAN MARINE
Type: 6×K19S
Core Type: FC/IWRC
Diameter: 12 - 68mm
Material: High-carbon steel
Treatment: Bright, Galvanised
Warranty: 1 year
Standard: YB/T5359-2020
Certificates: CCS, ABS, LR, NK, BV, RS
Availability:
Inquire Add to Basket

Product Description

6×K19S Class Compacted Strand Wire Rope


Product Introduction:

6XK19S Compacted is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). Stainless Steel Wire Ropes' construction has proved particularly popular for applications where the additional resistance to wear and abrasion provided by the larger outer wires is superior to the other 6XK19S constructions.

Deyuan marine offer compacted steel wire rope with different construction, like 6XK19S+IWR. 6XK19S+FC, 6XK31WS+IWR, 6XK31WS+FC etc , wire rope diameter range from 12mm to 68mm, the material of our wire rope is  high carbon steel,which can  meet with the standard of AISI, ASTM, BS, DIN, GB, JIS.


Available export packing of 6xK19S+IWRC Compacted Steel Wire Rope is 500m/reel, 1000m/reel, 2000m/reel, etc, or as per yr special request. If any inquiry, donot hesitate to contact us.


Compacted Steel Wire Rope Parameter (can be Galvanised):

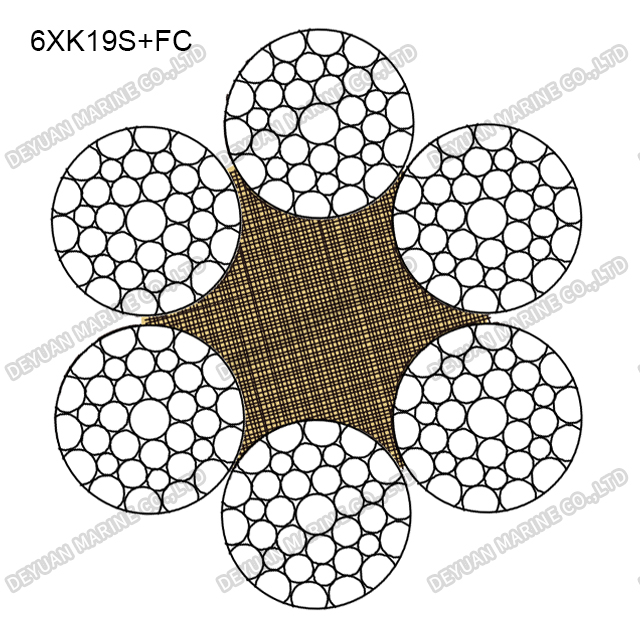

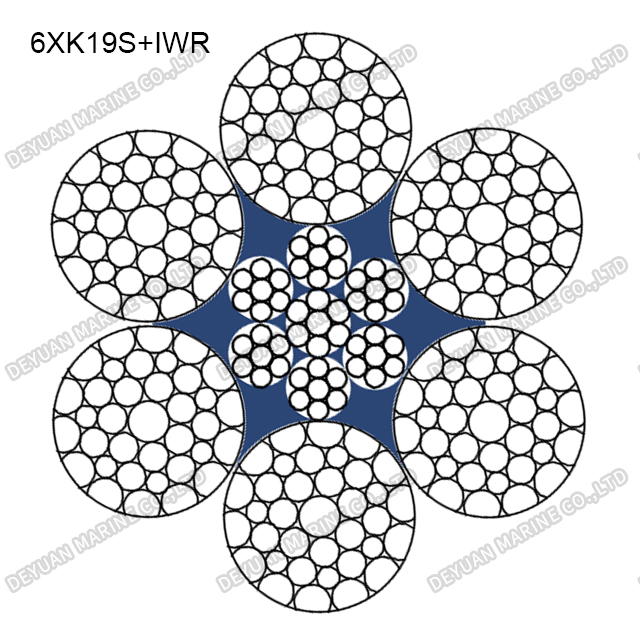

6×K19S+FC, 6×K19S+IWR
Nominal Diameter Approx.Weight Minimun Breaking Load of Rope (KN)
MM Kg/100M 1670mpa 1770mpa 1870mpa
D FC IWR FC IWR FC IWR FC IWR
12 61.2 68.7 89.7 98.6 95.1 105 100 110
14 83.3 93.5 122 134 129 142 137 150
16 109 122 159 175 169 186 179 196
18 138 155 202 222 214 235 226 248
20 170 191 249 274 264 290 279 307
22 206 231 301 331 320 351 338 371
24 245 275 359 394 380 418 402 442
26 287 322 421 463 446 491 472 518
28 333 374 488 537 518 569 547 607
30 383 429 561 616 594 653 628 690
32 435 488 638 701 676 743 714 785
34 491 551 720 792 763 839 806 886
36 551 618 807 887 856 941 904 994
38 614 689 899 898 953 1050 1010 1110
40 680 763 997 1100 1060 1160 1120 1230
42 750 841 1100 1210 1160 1280 1230 1350
44 823 923 1210 1330 1280 1400 1350 1480
46 899 1010 1320 1450 1400 1540 1480 1620
48 979 1100 1440 1580 1520 1670 1610 1770
50 1060 1190 1560 1710 1650 1810 1740 1920
52 1150 1290 1680 1850 1790 1960 1890 2070
54 1240 1390 1820 2000 1930 2120 2030 2240
56 1330 1500 1950 2150 2070 2280 2190 2400
58 1430 1600 2100 2300 2220 2440 2350 2580
60 1530 1720 2240 2460 2380 2610 2510 2760
62 1630 1830 2390 2630 2540 2790 2680 2950
64 1740 1950 2550 2800 2700 2970 2860 3140
66 1850 2080 2710 2980 2880 3160 3040 3340
68 1970 2210 2880 3170 3050 3360 3230 3550

Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
