Product Description

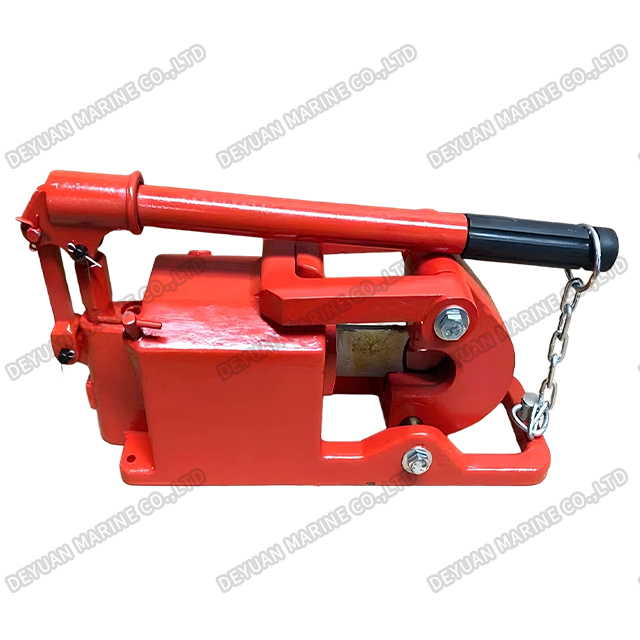

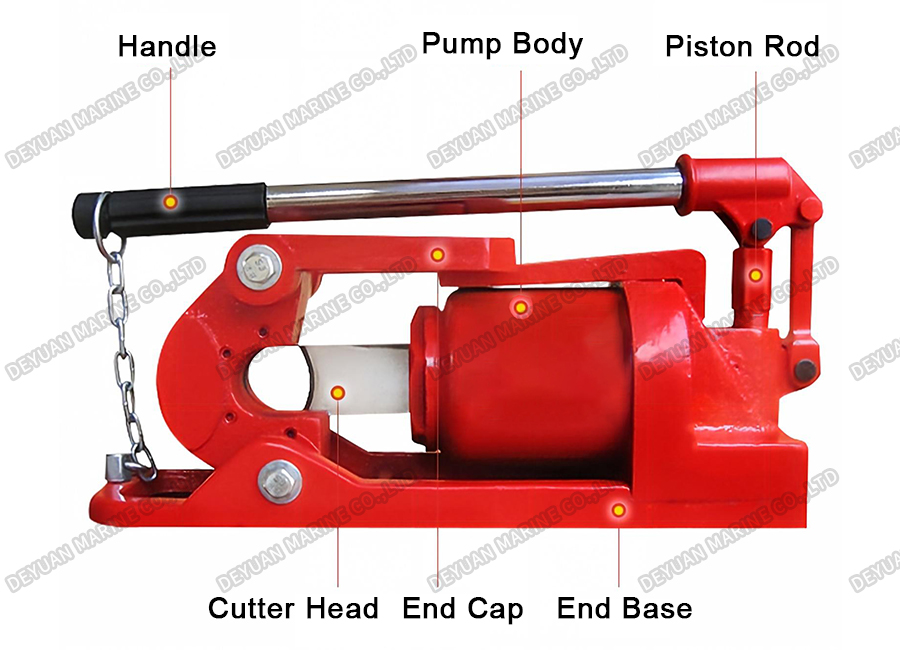

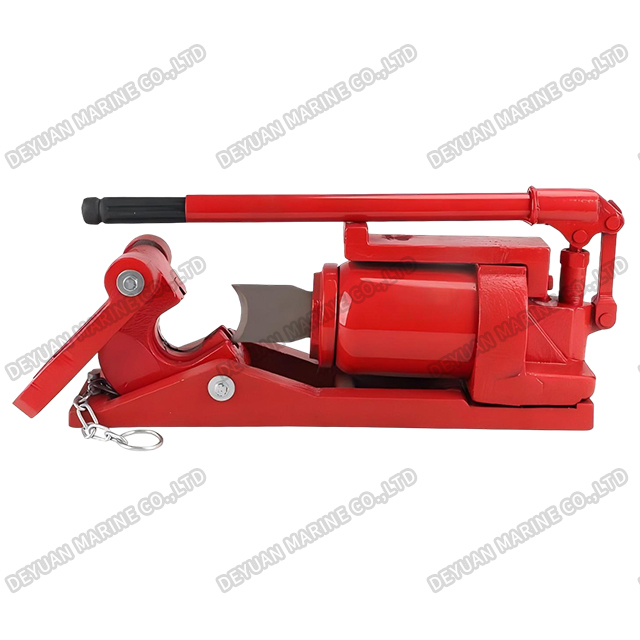

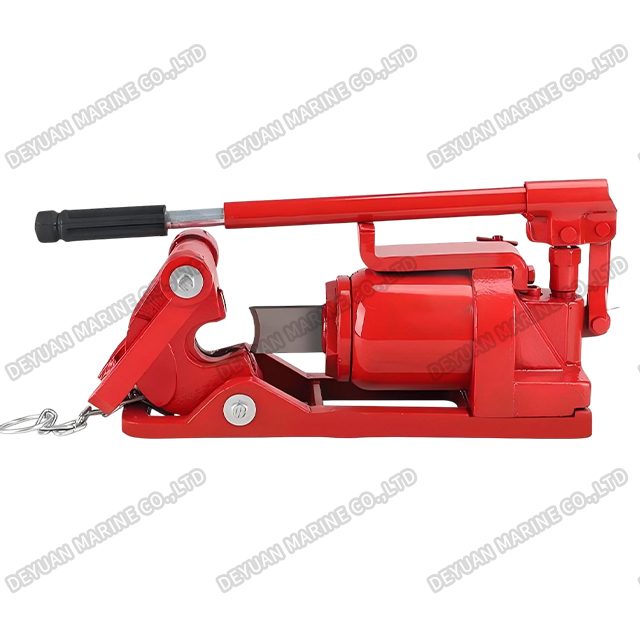

Hydraulic Wire Rope Cutter
Product Introduction:
Designed specifically for the harsh marine environment, the QY Series Hydraulic Wire Rope Cutter (Models QY30 & QY48) is a portable, manual-powered cutting solution engineered for rapid and safe severing of steel wire ropes on ships, offshore platforms, and dockside operations.
Combining robust construction with exceptional cutting force, this tool eliminates the need for electric power or pneumatic systems, making it the ideal emergency and maintenance companion in maritime settings.
Key Features & Benefits:
1.Powerful Hydraulic Amplification: Utilizing a pure manual hydraulic pump mechanism, the cutter transforms minimal operator effort into tremendous shearing force. The QY30 delivers a formidable 7.5 tons of cutting force, while the QY48 generates an impressive 20 tons, capable of slicing through maximum wire rope diameters of 30mm and 48mm respectively.
2.Compact & Corrosion-Resistant: Built with marine-grade materials and a compact structure, it withstands saltwater spray and humid conditions, ensuring long-term reliability on deck or in engine rooms.
3.Effortless Operation: Designed with ergonomic handles, the required operating force is kept remarkably low (≤25 kgf for QY30 and ≤39 kgf for QY48), significantly reducing operator fatigue even during repetitive cutting tasks.
4.Efficient Cutting Stroke: The precision-ground moving blade ensures clean cuts. The blade stroke completes fully within 10 pump strokes, guaranteeing fast action when every second counts in emergency releases or rigging replacements.
5.Self-Contained System: Equipped with a built-in oil reservoir (0.19L for QY30 / 0.3L for QY48) and an overload safety valve, the system is fully sealed, maintenance-friendly, and ready to use at any moment.
Technical Specifications:
| Model | QY30 | QY48 |
| Cut biggest diameter of wire rope | 30mm | 48mm |
| Piston proceeding | ≥38mm | ≥60mm |
| Power proceeding | 10mm | 8.8mm |
| The biggest shear force | 7.5Ton | 20Ton |
| Oil capacity | 0.19L | 0.3L |
| Hand shank force | ≤25kgf | ≤39kgf |
| Weight | 14.8kg | 29.9kg |
Applications:
Perfect for cutting mooring lines, towing cables, rigging slings, and general steel wire ropes during ship maintenance, offshore salvage operations, and port cargo handling.
Conclusion:
The QY Series Hydraulic Wire Rope Cutter is the definitive choice for maritime professionals seeking a reliable, high-force, and portable cable cutting tool. It enhances work efficiency while ensuring utmost safety during critical offshore wire rope operations.
