6×84WSNS Class Compacted Strand Wire Rope

6×84WSNS Class Compacted Strand Wire Rope

Product Introduction:

Engineered for the world's most demanding heavy-lift and offshore operations, our 6×84WSNS Compacted Strand Wire Rope strictly complies with GB/T 20067-2006 and sets a new benchmark for flexibility, fatigue resistance, and rotational stability. The 84-wire complex construction (Warrington‑Seale‑Non‑Seale lay pattern) distributes stress across an exceptionally high number of fine outer wires, delivering unmatched bending endurance over small sheaves and drums - a critical requirement for modern shipboard cranes and deep-water lifting systems.

The compacted outer strands undergo a post-forming densification process that increases the metallic fill factor by up to 15%, resulting in significantly higher breaking loads than conventional round-strand ropes of the same nominal diameter, while the smooth, reduced-diameter surface minimises abrasion against sheaves and adjacent wraps during multi-layer spooling.

Core Options to Match Your Duty Cycle:

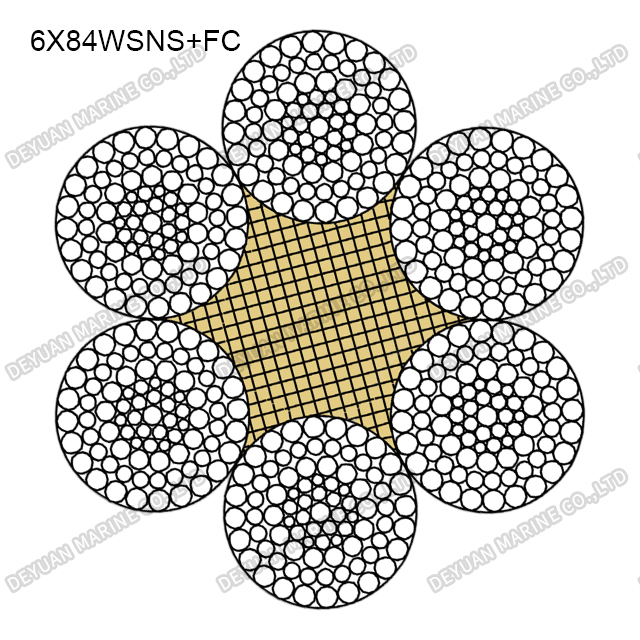

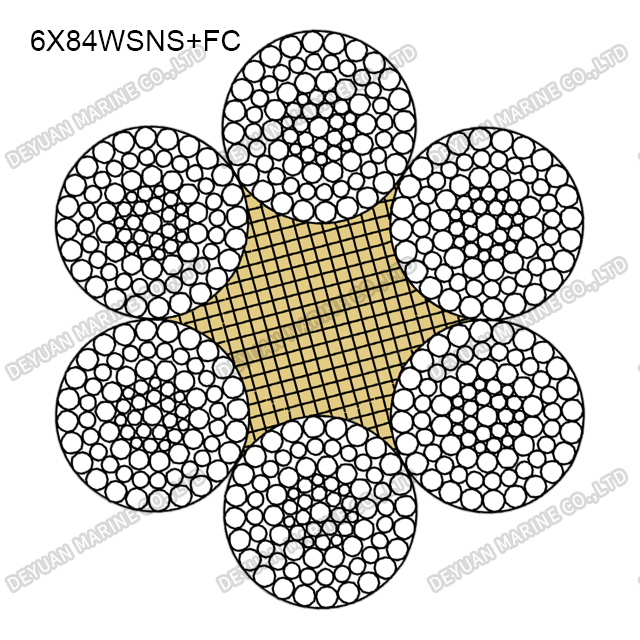

*FC (Fibre Core) - Provides superior elasticity and shock absorption, making it the ideal choice for harbour cranes, grab hoists, and applications with frequent start/stop cycles.

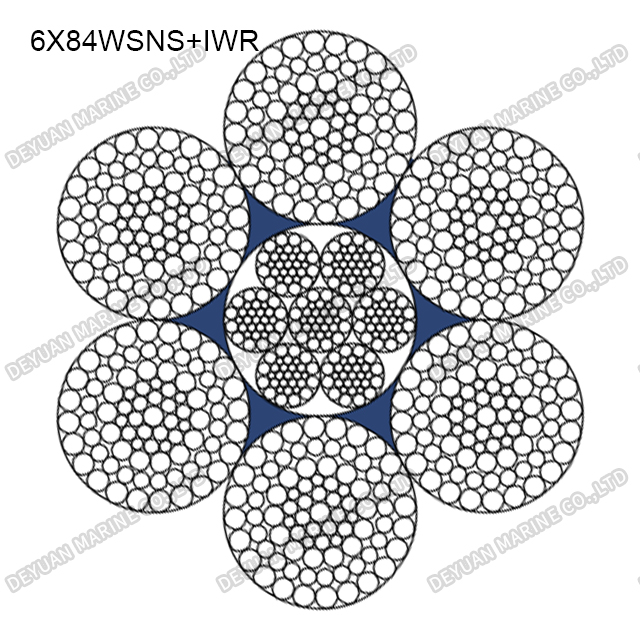

*IWR / IWRC (Independent Wire Rope Core) - Delivers maximum crushing resistance and the highest possible breaking strength, recommended for continuous heavy-hoist operations, mooring winches, and towing hawsers subjected to extreme radial loads.

Technical Specifications：

Key Performance Advantages:

1.Ultra-High Breaking Loads - Achieves minimum breaking forces up to 9770 kN (for 120 mm diameter, 1960 MPa grade, IWR core) - ensuring a generous safety margin for the heaviest lifts.

2.Exceptional Bending Fatigue Life - The 84-wire lay pattern minimises internal point-to-point wire contact, dramatically extending rope service life under millions of bending cycles.

3.Inherent Rotation Resistance - The multi-layer strand construction significantly reduces torque and untwisting tendency under single-fall hoisting, ensuring stable, safe load control.

4.Smooth Spooling & Low Wear - Compaction creates a uniform outer surface that improves layer-to-layer stability on winch drums and extends sheave life.

5.Broad Diameter Range - Available from 60 mm to 120 mm nominal diameter, covering all heavy marine and industrial lifting segments.

6.Reliable Weight Data - Actual weight tolerance within ±6% as per GB/T 20067-2006, ensuring precise deadload calculations for crane stability and vessel trim.

Primary Marine & Offshore Applications:

1.Shipboard Deck Cranes - Main hoist and luffing ropes for bulk carriers, container ships, and general cargo vessels.

2.Floating & Offshore Cranes - Heavy-lift hoist ropes for floating sheerlegs, semi-submersible crane vessels, and offshore construction platforms.

3.Mooring Winches - High-strength mooring lines for FPSOs, VLCCs, and drilling rigs in exposed offshore locations.

4.Towing & Salvage - Towlines and recovery hawsers subject to high shock loads and severe environmental conditions.

5.Single-Fall Hoisting - Rotation-resistant rope for single-line lifts where load spin must be minimised.

6.Deep-Sea Lowering Systems - Ropes for subsea equipment deployment, ROV handling, and oceanographic research winches.

All ropes are available in bright, galvanised, or compacted-surface finishes, with custom lubrication to suit tropical, arctic, or saltwater environments. Certification from major classification societies (ABS, LR, BV, DNV-GL, NK, KR, IRS, RMRS, CCS) is supplied as standard.
