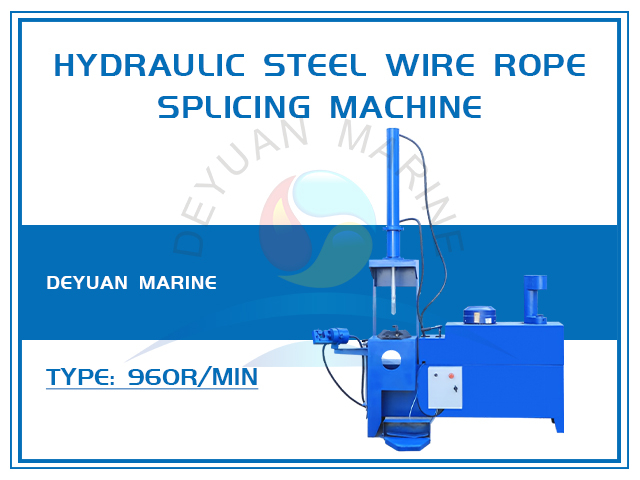

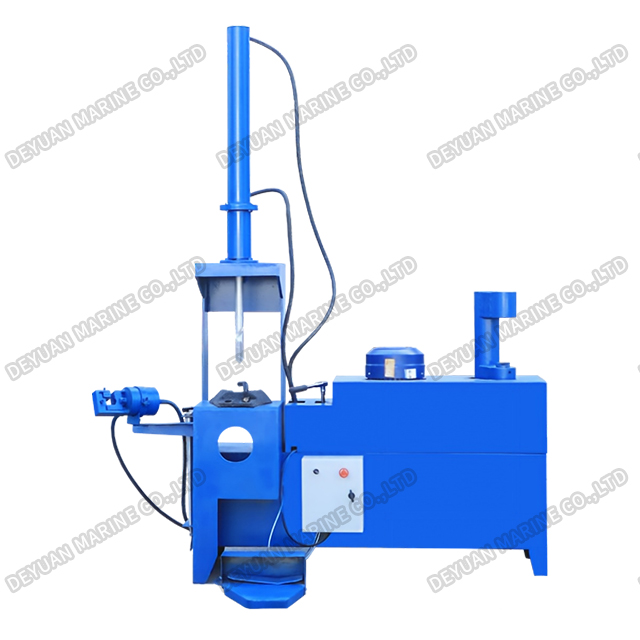

Hydraulic Steel Wire Rope Splicing Machine

Hydraulic Steel Wire Rope Splicing Machine

Product Introduction:

The Hydraulic Splicing Machine is a purpose-built, high-efficiency unit designed to revolutionize wire rope splicing operations in shipyards, offshore platforms, and port facilities. Integrating advanced hydraulic technology with a compact, robust frame, this machine accomplishes a complete splicing cycle in a single, uninterrupted process-from cutting the rope to final shaping of the spliced eye. Its innovative design not only boosts productivity but also significantly reduces manual effort, making it an indispensable tool for marine rigging professionals.

All-in-One Splicing Process:

*Cut the wire rope to the required length.

*Splice both ends of the rope simultaneously.

*Trim excess strands cleanly after splicing.

*Shape and compact the spliced section to a uniform, smooth finish.

All these steps are completed in one operation, eliminating the need for separate tools and reducing handling time-a critical advantage when working against tight port turnaround schedules or adverse sea conditions.

Wide Diameter Range & Quick Changeover:

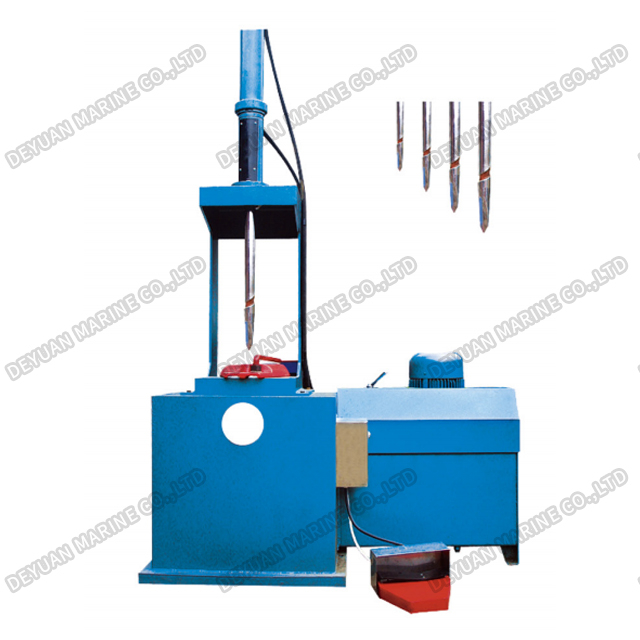

The machine accommodates wire rope diameters from 10 mm to 80 mm in standard configuration. To switch between different rope sizes, simply replace a single splicing pin-no complex adjustments or tooling changes are required. For ropes up to 120 mm, a special order can be arranged (please specify when ordering). The standard unit is set for right-hand lay ropes, but a left-hand lay version can be supplied upon request, ensuring compatibility with all common rope constructions used in marine applications.

Splicing Machine Parameter:

Superior Performance & Reliability:

1.Reduced Labour Intensity-Hydraulic power does the heavy work, minimising operator fatigue and the risk of repetitive-strain injuries.

2.Increased Efficiency-Cycle times are dramatically shortened, allowing more splices per shift.

3.Material Savings-Precise cutting and strand trimming minimise rope waste, lowering overall rigging costs.

4.Enhanced Safety Factor-The controlled, consistent pressure applied during splicing ensures terminations with high joint strength and reliable holding capacity, meeting stringent marine safety standards.

5.Long-Term Dependability-Built with high-grade materials and sealed hydraulic components, the delivers trouble-free performance even in humid, salt-laden environments.

Marine & Offshore Applications:

*Mooring line splicing-quick and reliable terminations for ship-to-dock and ship-to-ship operations.

*Crane rope renewal-on-site splicing reduces downtime for deck cranes and gantries.

*Offshore platform rigging-safe, strong splices for lifting, towing, and subsea equipment.

*Port and harbour maintenance-efficient handling of hawsers, slings, and cargo nets.

The machine is finished with a durable anti-corrosion paint system (available in blue or green) and features a sturdy steel base that withstands the shocks and vibrations of a working vessel. Its compact footprint (especially the S3251 model) allows installation in confined workshops or even in mobile containers for on-site service.
