Hydraulic Swaging Machines For Wire Ropes

Hydraulic Swaging Machines For Wire Ropes

Product Introduction:

Hydraulic swaging technology for wire ropes has become the global standard for producing reliable, high-strength terminations. The H2000-H3000 series is a newly developed, self-engineered range of heavy-duty swaging machines that combine advanced hydraulic systems with a robust, precision-built structure. These machines are specially tailored for marine environments, offering exceptional performance, durability, and operator convenience—even under the most extreme loading conditions.

Structural Excellence:

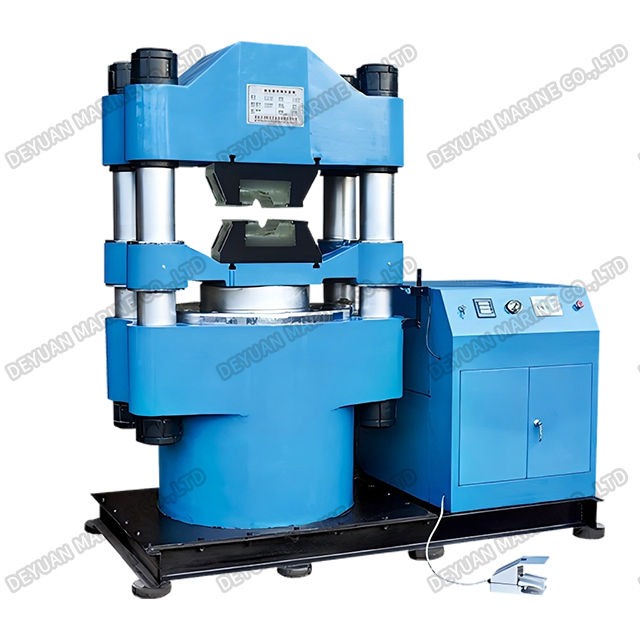

Both models feature a gantry-type, integral steel casting frame. This design provides outstanding rigidity and resistance to deformation, ensuring that every swaging cycle delivers precise, repeatable results—critical when terminating large-diameter ropes used in mooring, lifting, and subsea operations. The massive cast structure also dampens vibration, prolonging tool life and maintaining accuracy over years of heavy use.

Technical Specifications:

Outstanding Performance Features:

1.Ultimate Joint Strength & Safety-Pressed terminations achieve near-100% rope efficiency, delivering safe working loads that fully comply with international break-load test standards.

2.Corrosion Resistance-The cold-swaging process produces a smooth, uniform ferrule surface that resists saltwater corrosion, ensuring long service life in open-sea conditions.

3.Cost & Material Savings-Precise length control and zero wire waste reduce overall rigging costs compared to traditional socketing methods.

4.Space-Saving Gantry Design-Side-entry pressing allows easy handling of long rope lengths, even in confined deck spaces or narrow workshop areas.

5.High Productivity-Rapid cycle times, combined with intuitive PLC or microcomputer control, minimize human error and boost output for routine maintenance or emergency repairs.

6.Interchangeable Die System-Quick-change dies accommodate a wide range of rope diameters, offering flexible solutions for diverse vessel and platform requirements.

Wide Application Spectrum:

The H2000-H3000 series is extensively used in:

*Offshore Engineering-platform lifting, subsea rigging, mooring systems.

*Oil & Gas Exploration-drilling rigs, pipeline installation, FPSO operations.

*Port & Harbor-heavy container handling, ship-to-shore lifts, dock mooring.

*Mining & Quarrying-shaft hoisting, overburden removal, dragline ropes.

*Construction & Bridge-building-heavy-lift projects, precast concrete handling.

*Metallurgy & Steel Mills-ladle turning, coil lifting, mill maintenance.

*Transportation-railway freight, heavy road transport, waterway logistics.

Operator Safety & Maintenance:

Each machine is equipped with dual hydraulic safety valves, low-voltage controls, and overload protection. A detailed operation manual is provided with every unit; we strongly advise reading it thoroughly before initial use. Regular inspection of hydraulic oil levels, die wear, and seal integrity will ensure many years of trouble-free service.
