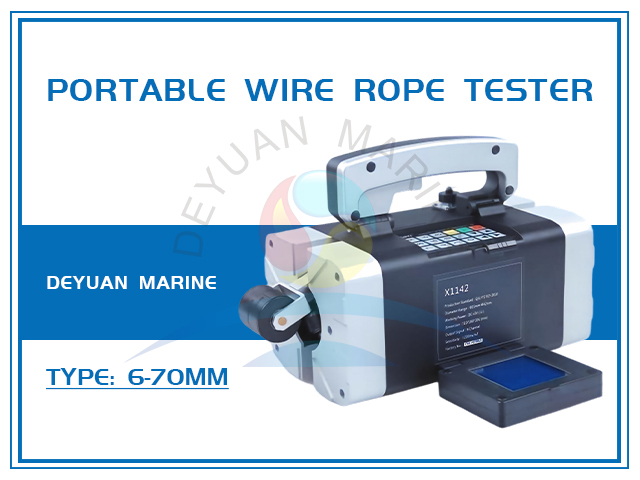

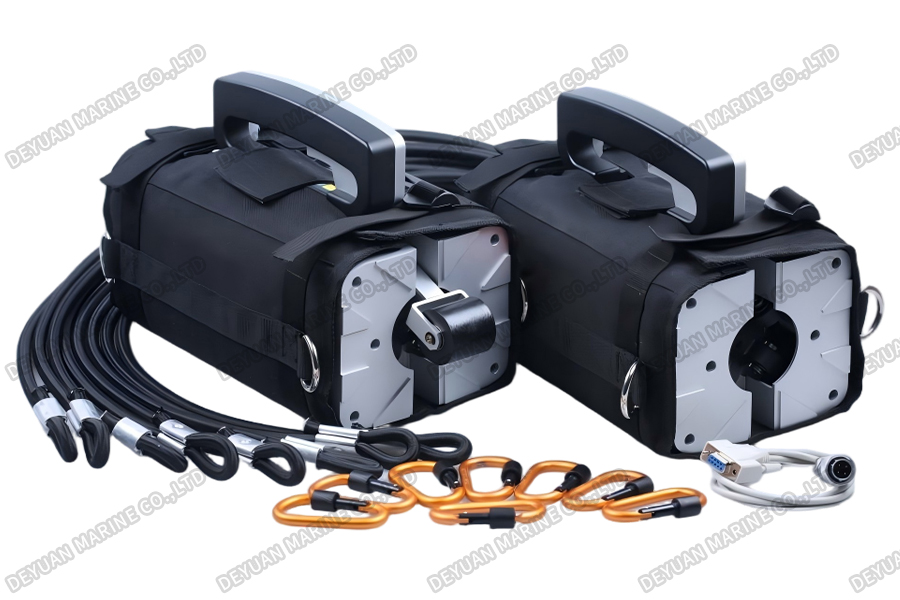

Portable Wire Rope Tester

Portable Wire Rope Tester

Product introduction:

The Portable Wire Rope Tester is a state‑of‑the‑art non‑destructive testing (NDT) instrument developed on the basis of magnetic inductive sensing technology and Magnetic Flux Leakage (MFL) inspection principles. Designed for rapid, on‑site evaluation of steel wire ropes, this compact and hand‑held device detects both surface and subsurface flaws without causing any damage to the rope. It is an essential tool for maintenance teams in mining, marine, construction, and infrastructure sectors, where wire rope integrity is critical to safety and operational efficiency.

Key Features & Benefits:

1.Comprehensive Flaw Detection – The system accurately identifies and quantifies Local Faults (LF) such as broken wires, pitting, and structural deformation, as well as Loss of Metallic Area (LMA) caused by corrosion, abrasion, or fatigue. The output includes statistical tables with percentage loss and exact position data, enabling informed decisions on rope retirement or continued service.

2.Wide Diameter Range – The tester accommodates wire ropes from 6 mm to 83 mm in diameter with interchangeable sensor heads, making it suitable for a vast array of applications – from thin elevator cables to thick mooring hawsers and offshore platform crane ropes.

3.High Precision and Repeatability – Advanced sensor technology ensures detection repeatability exceeding 90% and flaw locating accuracy of ≥99%, providing reliable, consistent results even in demanding industrial environments.

4.Fast Inspection Speed – The optimised sensor head can capture signals at speeds up to 5 m/s, allowing thorough inspections of long rope lengths with minimal downtime – a crucial advantage during scheduled maintenance or emergency checks.

5.Truly Portable and User‑Friendly – The lightweight, battery‑powered design enables single‑operator use in confined spaces. The integrated intelligent data analysis software offers an intuitive interface, processing complex signals into clear, actionable reports. Real‑time display and PC connectivity further enhance documentation and trend analysis capabilities.

6.Extended Rope Service Life – By detecting internal damage early, the tester helps prevent catastrophic failures, reduce unplanned downtime, and optimise rope replacement schedules, ultimately lowering overall operating costs.

7.Compliance with Industrial Standards – The tester meets or exceeds relevant international NDT standards, ensuring that inspection results are recognised by classification societies and regulatory bodies.

Product Specifications:

System Features:

Typical Applications:

*Mining hoists and shaft conveyances.

*Shipboard cranes, mooring winches, and towing hawsers.

*Tower cranes, gantry cranes, and construction hoists.

*Passenger and freight elevators.

*Aerial cableways, ropeways, and suspended bridges.

*Power grid guy wires and transmission lines.

*Offshore drilling platforms and subsea lifting systems.

Conclusion:

The Portable Wire Rope Tester is a reliable, cost‑effective solution for proactive wire rope maintenance. Its combination of high‑accuracy flaw detection, wide diameter coverage, fast inspection speed, and user‑friendly operation makes it an indispensable instrument for ensuring safety, extending equipment life, and maximising productivity across industries. Whether used in routine inspections or critical emergency assessments, this tester empowers operators with the data needed to make confident, timely decisions.
