8×K26WS Class Compacted Strand Wire Rope

8×K26WS Class Compacted Strand Wire Rope

Product Introduction:

The 8×K26WS Class Compacted Strand Wire Rope is a state‑of‑the‑art steel wire rope engineered for the most demanding marine, offshore, and heavy‑industrial applications where a perfect balance of flexibility, abrasion resistance, and rotational stability is required. Manufactured in strict compliance with YB/T 5359‑2020 – the Chinese national standard for compacted strand ropes – this 8‑strand design with Warrington‑Seale (WS) strand construction offers superior performance over conventional 6‑strand ropes, making it the ideal choice for complex reeving systems, multi‑layer drum winding, and high‑speed hoisting operations.

The 8‑strand configuration provides a more circular cross‑section, better load distribution, and significantly reduced rotation under load compared to 6‑strand ropes, while the 26‑wire Warrington‑Seale arrangement within each strand delivers an outstanding combination of large outer wear wires for abrasion resistance and smaller inner wires for flexibility. This unique synergy makes the 8×K26WS Class a versatile workhorse for cranes, winches, and hoists in both coastal and deep‑sea environments.

Construction & Design:

The 8×K26WS Class wire rope features an 8‑strand Warrington‑Seale (WS) construction, with each strand composed of 26 wires arranged in a sophisticated configuration that combines wires of different diameters – typically larger outer wires for wear resistance and finer inner wires for bending flexibility. The WS design ensures a surface‑contact arrangement between wire layers, reducing internal friction and enhancing fatigue life.

The Rope Is Available With Two Core Options:

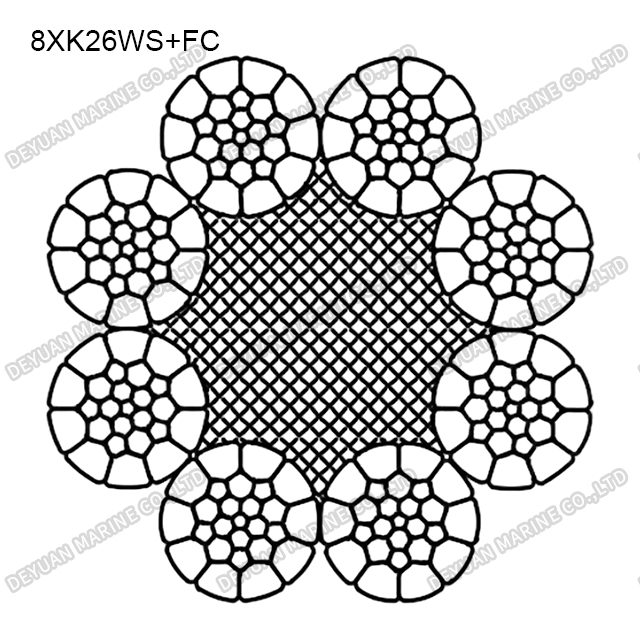

*FC (Fibre Core) – Provides excellent flexibility, internal lubrication, and shock absorption, ideal for applications with multiple sheaves and small drum diameters

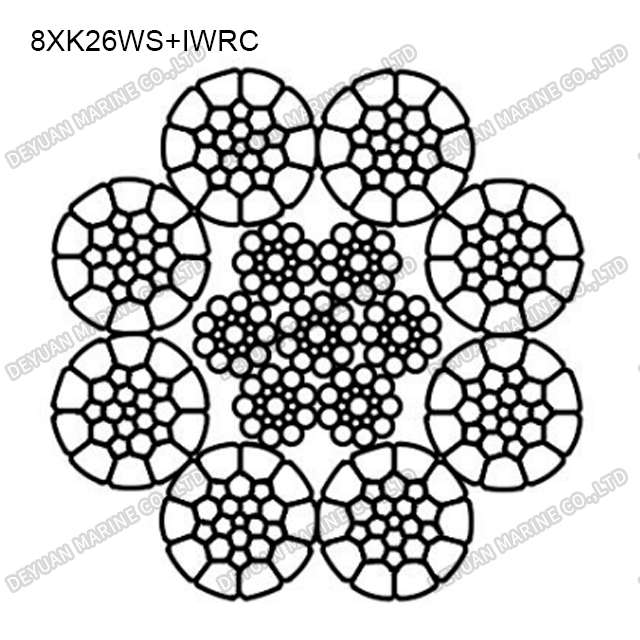

*IWRC (Independent Wire Rope Core) – Delivers higher breaking loads, minimal stretch, and superior resistance to crushing and heat, perfect for high‑tension and multi‑layer winding operations

The compacting process – achieved through precision die‑drawing – densifies each strand, increasing the metallic cross‑sectional area while creating a remarkably smooth, uniform outer surface. The 8‑strand compacted construction results in a near‑perfect circular profile with minimal out‑of‑roundness, ensuring even load distribution across all strands and significantly reducing wear on sheaves, drums, and the rope itself.

Technical Specifications：

Core Advantages:

1. Superior Rotational Resistance

With eight strands laid around the core, the 8×K26WS Class exhibits significantly less torque and rotation under load compared to 6‑strand ropes. This is critical for single‑part hoisting, tower cranes, and applications where load spinning or kinking must be avoided.

2. Excellent Crush & Deformation Resistance

The 8‑strand design provides a more robust structure with greater support for the core, offering outstanding resistance to crushing and flattening – especially valuable in multi‑layer drum winding where rope‑on‑rope pressure is severe.

3. Optimal Balance of Flexibility & Abrasion Resistance

The Warrington‑Seale (WS) configuration combines large outer wires for wear resistance with smaller inner wires for flexibility, delivering a best‑in‑class compromise that outperforms both Seale and filler‑wire constructions in applications requiring both properties.

4. High Breaking Load from Compaction

The compacted strand structure increases the metallic cross‑sectional area, providing a 20–30% higher breaking load compared to conventional non‑compacted ropes of the same diameter.

5. Exceptional Bending Fatigue Life

The surface‑contact wire arrangement and reduced internal friction result in superior bending fatigue resistance, allowing the rope to operate over smaller sheaves and drums with extended service life – a key advantage for marine cranes with complex reeving.

6. Smooth Spooling & Reduced Equipment Wear

The compacted, smooth outer surface and nearly perfect circular cross‑section ensure flawless spooling on drums, minimizing the risk of overlapping, uneven layering, and crushing. The larger contact area with sheaves distributes loads evenly, reducing wear on both the rope and the equipment.

7. Low Constructional Stretch

Compacted strands and the WS wire arrangement provide very low structural stretch, ensuring precise load control and minimal elongation under tension – crucial for accurate positioning in cargo handling and offshore lifting.

8. Corrosion Protection Options

Available in both bright (ungalvanized) and hot‑dip galvanized finishes, with galvanization offering robust protection against saltwater corrosion, humidity, and marine atmospheric conditions.

Marine & Industrial Applications

The 8×K26WS Class Compacted Strand Wire Rope is specifically engineered for a wide range of demanding applications where rotational stability, flexibility, and wear resistance are paramount:

*Shipboard Cranes & Deck Cranes – Excellent flexibility for luffing and hoisting with multiple sheaves.

*Offshore Pedestal Cranes – Superior crush resistance for multi‑layer drum winding.

*Tower Cranes & Luffing Jib Cranes – Rotational stability for single‑part hoisting.

*Ship‑to‑Shore (STS) Container Cranes – High fatigue life for continuous port operations.

*Mooring Winches & Berthing Lines – Smooth spooling and low stretch for accurate positioning.

*Tugboat Towing & Escort Lines – Torque‑resistant for safe towing dynamics.

*ROV Launch & Recovery Systems – Crush resistance at great ocean depths.

*Offshore Platform Hoists & Derricks – Reliable performance in harsh sea conditions.

*Salvage & Heavy‑Lift Vessels – High breaking loads with exceptional stability.

*Mining Shaft Hoisting & Skip Winding – Outstanding abrasion and crushing resistance.

*Fishing Trawl Winches & Net Haulers – Durable under heavy, abrasive loads.

*Aerial Work Platforms & Elevators – Smooth, non‑rotating properties for personnel safety.
