8×K36WS Class Compacted Strand Wire Rope

8×K36WS Class Compacted Strand Wire Rope

Product Introduction:

The 8×K36WS Class Compacted Strand Wire Rope represents the pinnacle of wire rope engineering for the most extreme marine, offshore, and heavy‑lifting environments where maximum flexibility, outstanding fatigue resistance, and superior rotational stability are non‑negotiable. Manufactured to the stringent requirements of YB/T 5359‑2020 - the Chinese national standard for compacted strand ropes - this 8‑strand design with Warrington‑Seale (WS) strand construction delivers an unmatched combination of bending performance, abrasion resistance, and torque control, making it the ultimate choice for complex crane reeving, deep‑water hoisting, and high‑speed winching operations.

The 8‑strand configuration provides a more circular cross‑section, better load distribution, and significantly reduced rotation under load compared to conventional 6‑strand ropes. Within each strand, the 36‑wire Warrington‑Seale arrangement - featuring larger outer wires for wear protection and a higher number of smaller inner wires for exceptional flexibility - offers the highest wire count in the 8‑strand family, ensuring superior bending fatigue life even over small‑diameter sheaves. This makes the 8×K36WS Class the preferred solution for shipboard cranes, offshore pedestal cranes, container handlers, and any application requiring continuous flexing over multiple sheaves.

Construction & Design:

The 8×K36WS Class wire rope features an 8‑strand Warrington‑Seale (WS) construction, with each strand composed of 36 wires arranged in a sophisticated multi‑layer configuration that combines wires of varying diameters. The Warrington‑Seale design places larger outer wires on the strand surface for maximum abrasion resistance, while the smaller inner wires provide outstanding flexibility and reduce internal friction. This results in a surface‑contact arrangement between wire layers, ensuring even load distribution and extended fatigue life.

The Rope Is Available With Two Core Options:

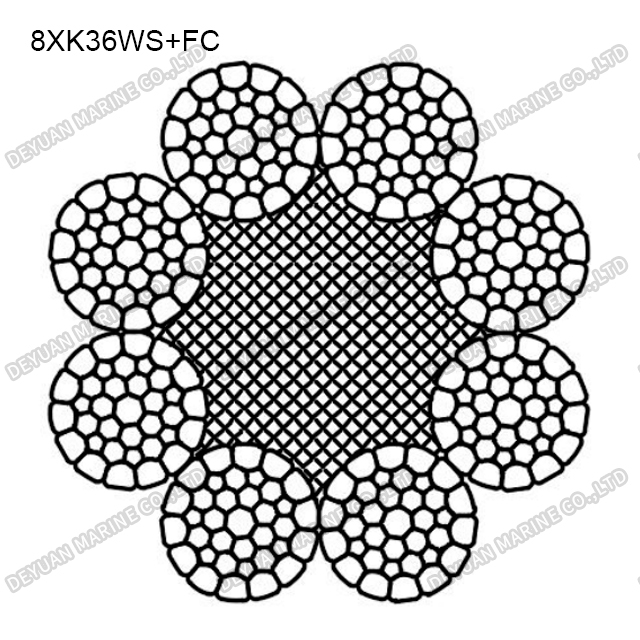

*FC (Fibre Core) - Provides superior flexibility, internal lubrication, and shock absorption, ideal for applications with multiple sheaves and small drum diameters, delivering maximum bending fatigue performance

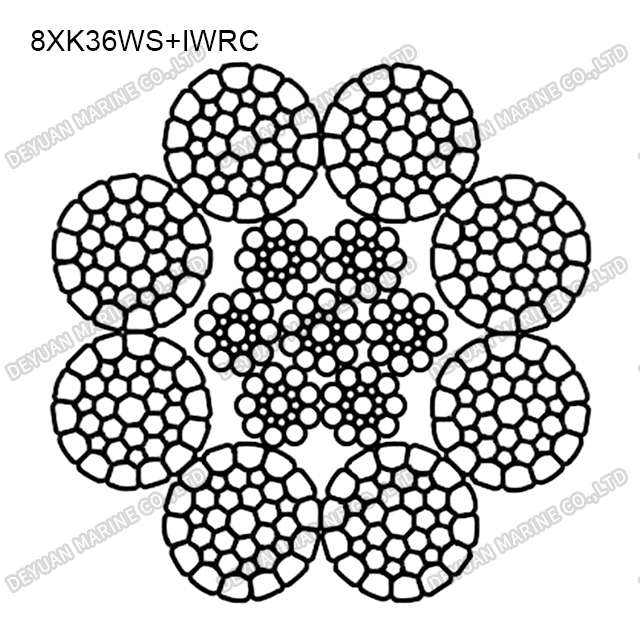

*IWRC (Independent Wire Rope Core) - Delivers higher breaking loads, minimal stretch, and exceptional resistance to crushing and heat, perfect for high‑tension and multi‑layer drum winding operations

The compacting process - achieved through precision die‑drawing - densifies each strand, increasing the metallic cross‑sectional area while creating an exceptionally smooth, uniform outer surface. The 8‑strand compacted construction results in a near‑perfect circular profile with minimal out‑of‑roundness, ensuring even load distribution across all strands and significantly reducing wear on sheaves, drums, and the rope itself.

Technical Specifications：

Core Advantages:

1. Unmatched Flexibility & Bending Fatigue Resistance

With 36 wires per strand - the highest wire count among 8‑strand compacted ropes - the 8×K36WS Class offers exceptional flexibility, allowing operation over sheaves and drums with smaller diameters without compromising service life. This is critical for marine cranes with complex reeving systems and high‑speed hoists.

2. Superior Rotational Resistance

The 8‑strand design inherently reduces torque and rotation under load, outperforming 6‑strand ropes and ensuring stable, non‑spinning operation for single‑part hoisting, tower cranes, and applications where load orientation is critical.

3. Exceptional Crush & Deformation Resistance

With eight strands supporting the core, the 8×K36WS Class offers outstanding resistance to crushing and flattening - even more than 6‑strand compacted ropes. This makes it the preferred choice for multi‑layer drum winding where rope‑on‑rope pressure is severe, and for operations with high radial loads.

4. Excellent Abrasion Resistance

The Warrington‑Seale design places large, durable outer wires on the strand surface, providing a dense, wear‑resistant surface that withstands abrasive contact with sheaves, drums, and deck structures - extending service life in harsh marine environments.

5. High Breaking Load from Compaction

The compacted strand structure increases the metallic cross‑sectional area, delivering a 20-30% higher breaking load compared to conventional non‑compacted ropes of the same diameter.

6. Reduced Internal Friction & Heat Generation

The surface‑contact wire arrangement and compaction process minimize internal friction, reducing heat build‑up during high‑speed or continuous operation - a critical factor for winches and cranes with extended duty cycles.

7. Smooth Spooling & Reduced Equipment Wear

The compacted, smooth outer surface and near‑perfect circular cross‑section ensure flawless spooling on drums, minimizing the risk of overlapping, uneven layering, and crushing. The larger contact area with sheaves distributes loads evenly, reducing wear on both the rope and the equipment.

8. Low Constructional Stretch

Compacted strands and the WS wire arrangement provide very low structural stretch, ensuring precise load control and minimal elongation under tension - crucial for accurate positioning in cargo handling, offshore lifting, and salvage operations.

9. Corrosion Protection Options

Available in both bright (ungalvanized) and hot‑dip galvanized finishes, with galvanization offering robust protection against saltwater corrosion, humidity, and marine atmospheric conditions.

Marine & Industrial Applications

The 8×K36WS Class Compacted Strand Wire Rope is specifically engineered for a wide range of demanding applications where maximum flexibility, fatigue resistance, and rotational stability are essential:

*Shipboard Cranes & Deck Cranes - Superior flexibility for complex luffing and hoisting with multiple sheaves.

*Offshore Pedestal Cranes - Exceptional bending fatigue for continuous duty cycles in harsh sea conditions.

*Ship‑to‑Ship (STS) Transfer Cranes - High fatigue life and smooth operation for cargo transfer at sea.

*Container Gantry Cranes - Outstanding abrasion resistance for quay‑side operations.

*Mooring Winches & Towing Winches - Smooth spooling and low stretch for accurate positioning.

*Tugboat Escort & Towing Lines - Torque‑resistant for safe and stable towing dynamics.

*Deep‑sea ROV Launch & Recovery Systems - Superior flexibility and crush resistance for tether cables.

*Offshore Platform Hoists & Derricks - Reliable performance with minimal maintenance.

*Salvage & Heavy‑Lift Vessels - High breaking loads with exceptional fatigue life.

*Mining Hoists & Shaft Winding - Excellent abrasion and crushing resistance for heavy loads.

*Fishing Vessel Winches & Net Drums - Durable under cyclic loading and abrasive conditions.

*Aerial Tramways & Cableways - Smooth, non‑rotating properties for passenger safety.

*Elevators & Construction Hoists - Quiet operation with low vibration and extended service life.
