Product Description

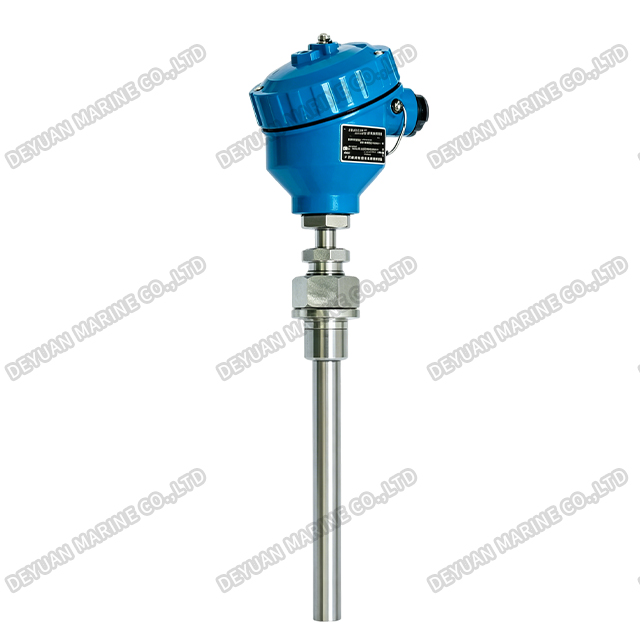

WZPK Type Temperature Transmitter
Product Introduction:
The WZPK Marine Temperature Transmitter is a rugged, high-precision temperature sensing device specifically designed for demanding marine applications.Temperature transmitters adopt high quality Pt resistance as temp. sensing component, and have characteristics of high measuring accuracy, good stability and reliability, and long life. They are widely used to measure temp. of liquid, gas and steam in ship and other industrial equipment.
Main Technical Specification:
| Power voltage | DC 24V ±10% |
| Measuring accuracy | ±0.5% F.S |
| Protection | IP66/IP68 |
| Working temp | -20~60℃ |
| Ex.mark | Ex ia IIC T1/T2/T3/T4/T5 Ga ,Ex d IIC T4/T5/T6 Gb |
| Model | Temp.affect element | Measuring range(℃) | Socket | Nominal pressure (PN) | Output(option) | |
| Material | Dia.(mm) | |||||
| WZPK | K-type thermocouple Pt100 Pt500 Pt1000 | maximum 600°C -70~500 | SUS304 SUS316L Single/double socket | Φ10(Single) Φ12(Single) Φ16(d=Double) | 1.0 MPa | 1.Output resistance(two、three wires) 2.Output DC 4~20mA(two wires) |

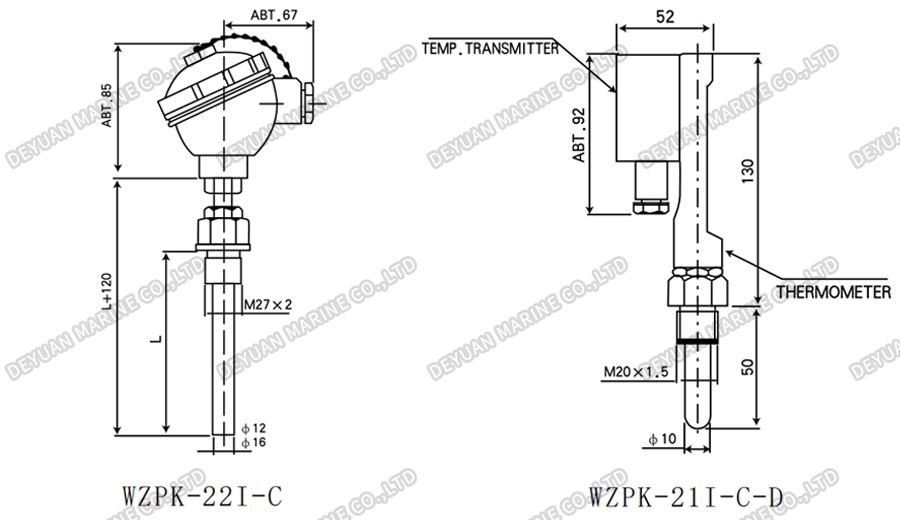

Outline Dimension：

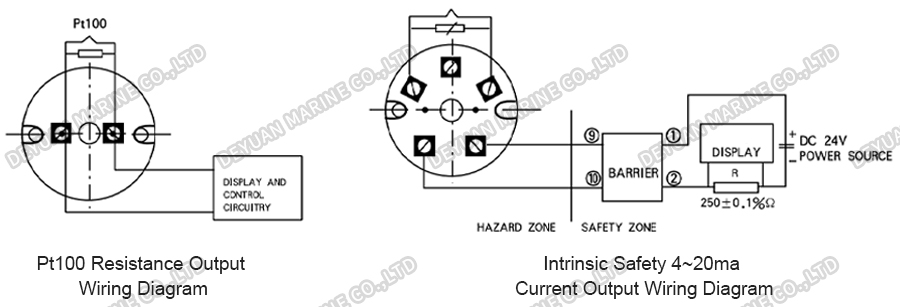

Wiring Diagram：
