Product Description

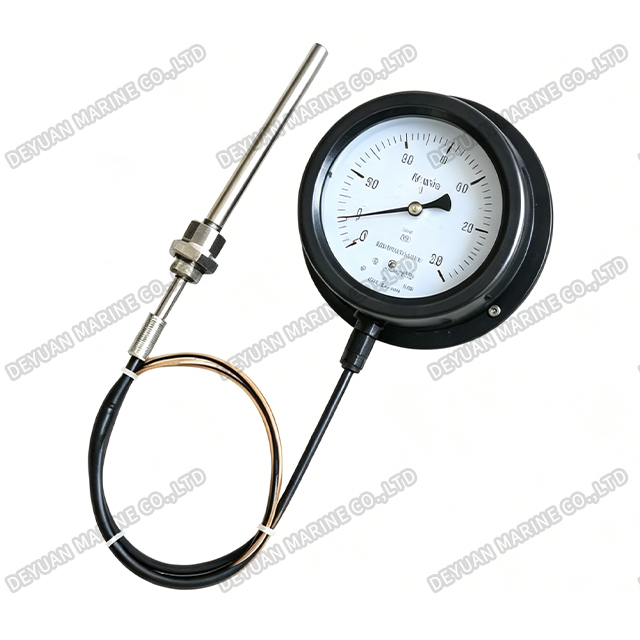

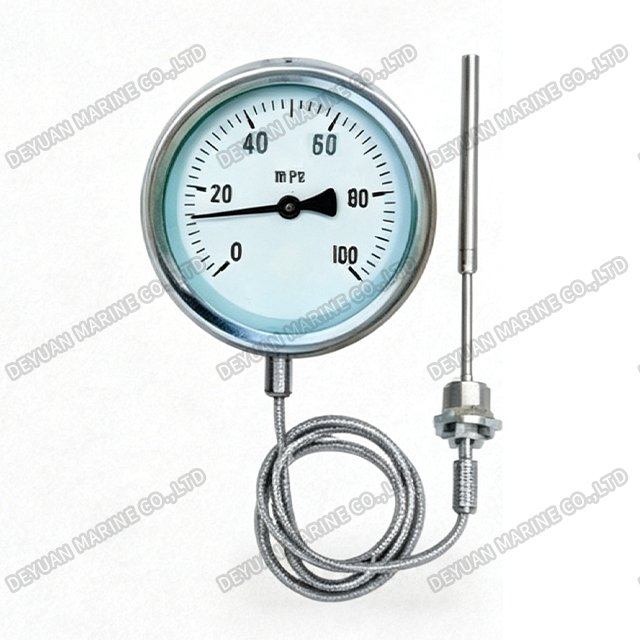

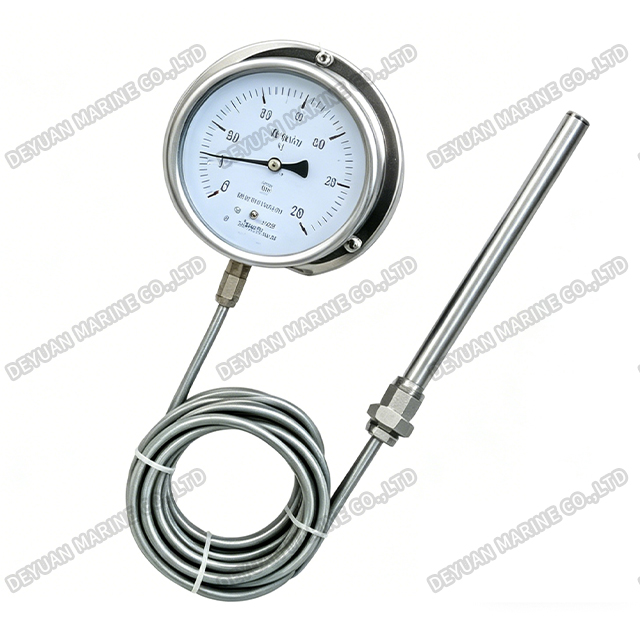

WTZ/Q-280 Pressure Type Thermometer
Product Introduction:
The Marine Pressure Type Thermometer is a mechanical, remote-reading temperature measuring instrument designed for marine applications. Operating on the principle of liquid or gas expansion within a sealed system, it consists of a temperature-sensing bulb, a flexible capillary tube, and a rugged dial indicator. This entirely mechanical device requires no external power, making it highly reliable for engine rooms, cargo monitoring, and auxiliary systems onboard ships.WTZ/Q-280 type pressure type thermometer can be used to remotely measure liquid, gas and steam etc in ship and other industrial equipment.
Main Technical Specification:
| Model | Measuring range(C) | Accuracy | Bulb insert length adjustable range L(mm) | Bulb dia. | Connection | Casing material | |
| WTZ-280 | -40~+60 -20~+60 0~50 0~100 | 0~150 20~120 60~160 | 1.5 | 150~2000 | Φ12 Single Φ15 Double | M27X2 G1/2” G3/4” | Phenolic resin Stainless steel |
| WTQ-280 | -60~+40 -40~+60 | 0~200 0~250 0~300 0~400 0~500 | 2.5 | 320~420 | Φ22 | ||
| Type | Capillary tube length (m) | Bulb and capillary tube material (m) | Max.length of capillary tube (m) |
| General type | 1~20 | T2 | 20 |
| Anti-corrosive | 1~10 | 1Cr18Ni9Ti | 15 |
| Note:Please mark model,measuring range connection and capillary length when order our products. | |||

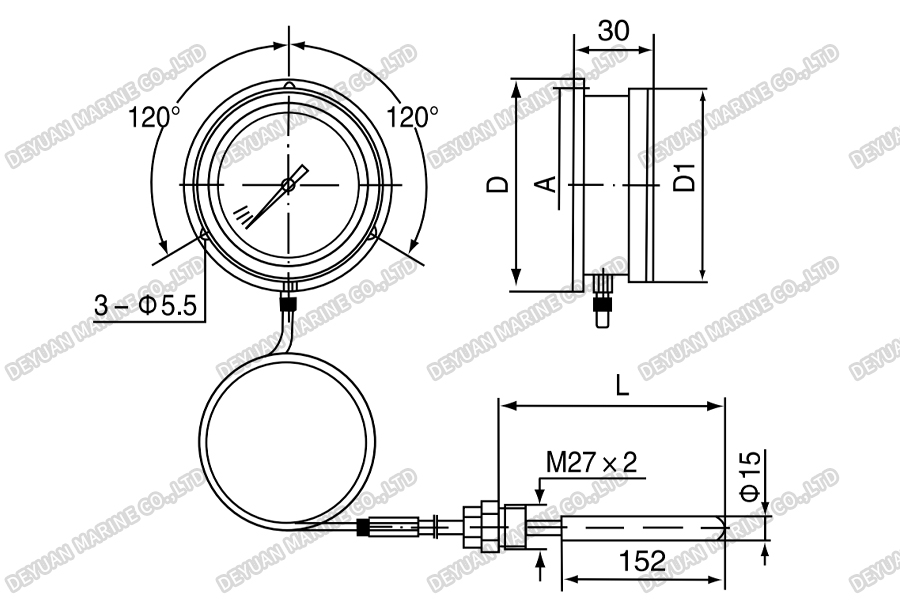

Outline Dimension:
Dimension Specification：
| Dial diameter | D1 | A | D |
| Φ100 | Φ117 | Φ120 | Φ130 |
| Φ150 | Φ156 | Φ160 | Φ172 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
