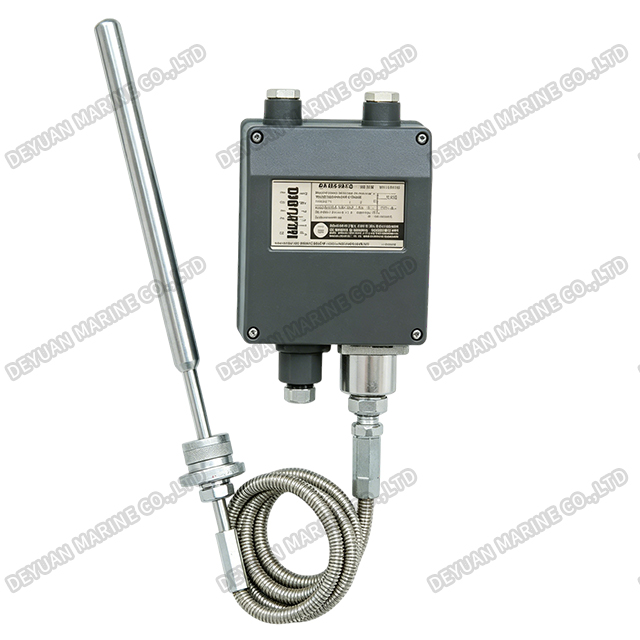

WTZK Type Temperature Controller
Product Introduction:
The WTZK Series Marine Temperature Controller is a reliable and rugged device designed specifically for use in harsh marine environments. WTZK type temp. controller is an electrical switch that can make circuit close or open following change of controlled medium temp. It can be used to support performance structure in ship, freeze instrument or other industrial equipment by controlling temp. of gas, liquid or steam through two posi -tion type.
Main Technical Specification:
| Temperature regulated range(℃) | Switching eror adjustable range(℃) | Enactment error(℃) | Repeatbility error(℃) | Contact capacity | Protection |
| -25~0 | 3~5 | ±2 | ≤2 | AC 380V 3A DC 220V 2.5A | IP44 |
| -15~+15 | 3~5 | ±2 | ≤2 | ||
| 10~40 | 3~5 | ±2 | ≤2 | ||
| 40~80 | 3~5 | ±2 | ≤2 | ||
| 60~100 | 3~5 | ±3 | ≤2 | ||
| 80~120 | 3~5 | ±3 | ≤2 | ||
| 110~150 | 3~5 | ±3 | ≤2 | ||
| 130~170 | 3~5 | ±3 | ≤2 |

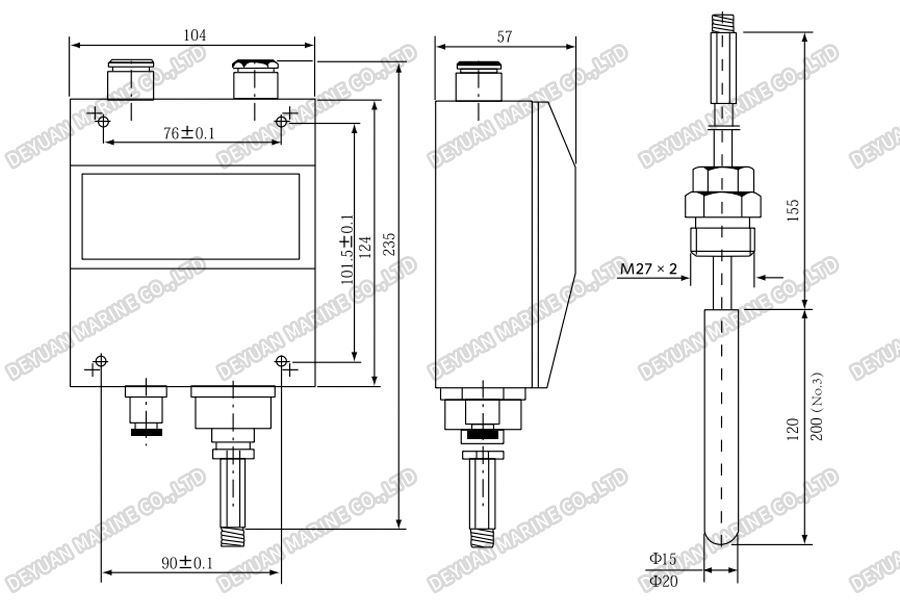

Outline Dimension:

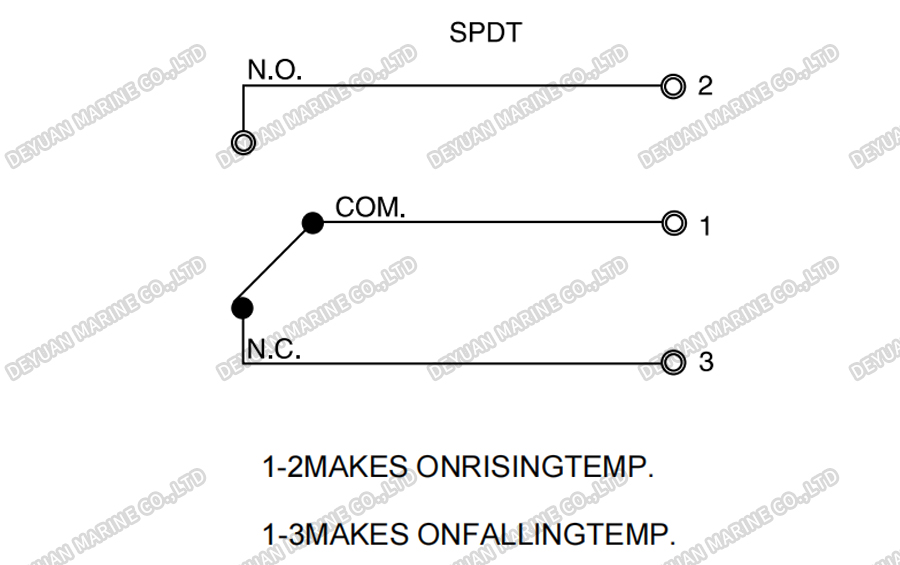

Contact Form:
