Product Description

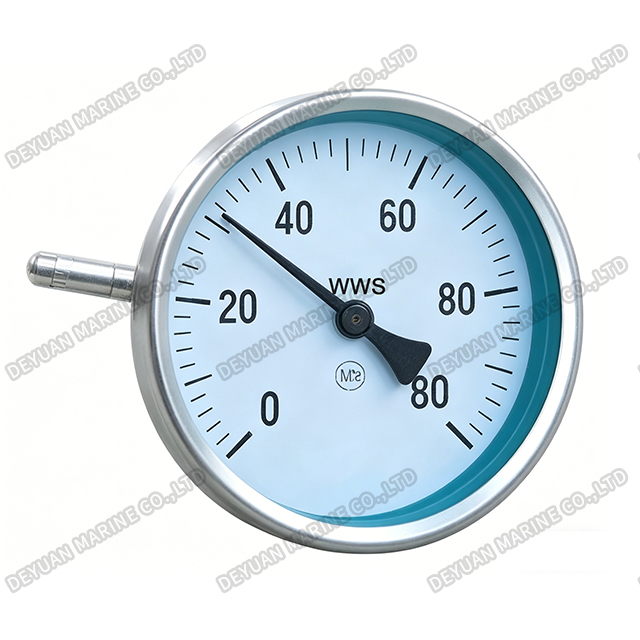

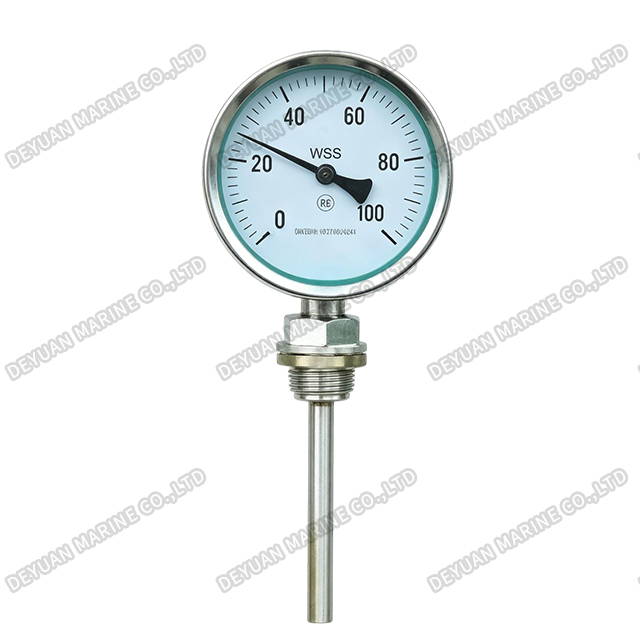

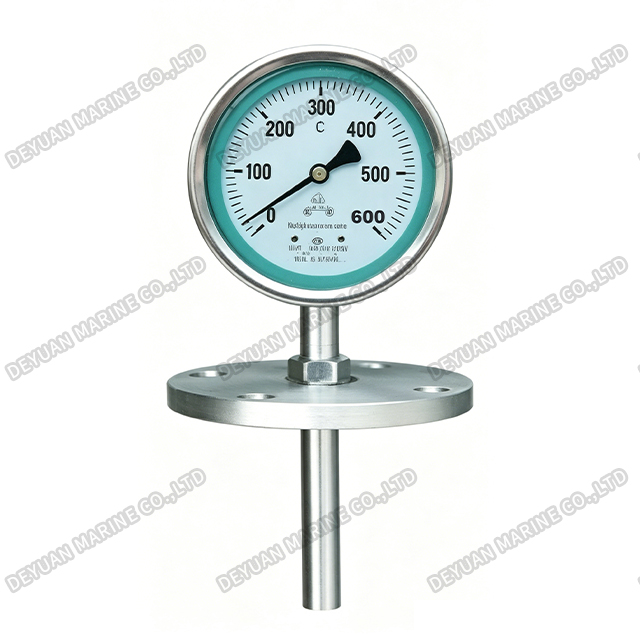

WSS Type Bimetal Thermometer
Product Introduction:
The WSS Series Marine Bimetal Thermometer is a rugged, direct-reading temperature measurement instrument designed specifically for demanding marine applications. Utilizing the principle of bimetallic strip expansion, it provides reliable, mechanical temperature indication without any external power supply. Built to withstand vibration, salt spray, and humidity commonly found in engine rooms and deck areas, this thermometer offers exceptional durability and accuracy for critical systems.
Bimetal thermometer is local measuring instrument for mid & low temp. medium, and can be used to directly measure temp. of gas, liquid or steam in ship and other industrial equipment.
Main Technical Specification:

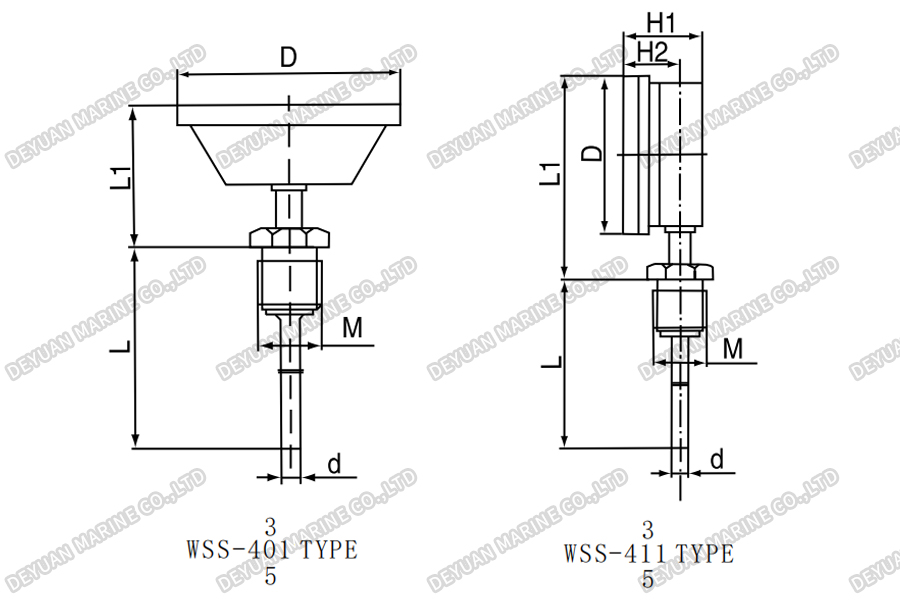

| Model | dial dia D(mm) | Measure range(C) | Scale(C) | Accuracy | Protector dia d(mm) | Insert length L(mm) | Connection(M) | L1 | H₁ | H₂ |
| WSS-301 | Φ60 | -40~80 0~50 0~100 0~150 0~200 0~300 0~500 | 2 1 2 2 5 5 10 | 2.5 | Φ6(Single) Φ10(Double) | 75 100 150 200 250 300 | M16X1.5 G1/4” | 61 | - | - |
| WSS-311 | 110 | 44 | 32 | |||||||
| WSS-401 | Φ100 | -40~80 0~50 0~100 0~150 0~500 | 2 1 2 2 10 | 1.5 | Φ8(Single) Φ12(Double) | 75 100 150 200 250 300 400 500 750 1000 | M27X2 G3/4” | 80 | - | - |
| WSS-411 | 140 | 51 | 33 | |||||||
| WSS-501 | Φ150 | 0~200 0~300 0~400 0~500 | 5 5 10 10 | Φ10 Φ12 | 81 | - | - | |||
| WSS-511 | 180 | 60 | 38 | |||||||
| Note product model and dimension of L,Mwhen you order the products.If you have special requirements please contact us. | ||||||||||
