Product Description
WTY Pressure Type Anti-Vibration Thermometer
Product Introduction:
The Marine Pressure Type Anti-Vibration Thermometer is a robust, mechanical temperature measuring instrument designed for remote indication in harsh marine environments. WTY type thermometers have characteristics of small cubage, anti-corrosive & anti-vibration, which can be used to measure temp. of bush for marine diesel engine, oil and exhaust, and also can be used to measure temp. of gas, liquid and steam in other industrial equipment.
Main Technical Specification:

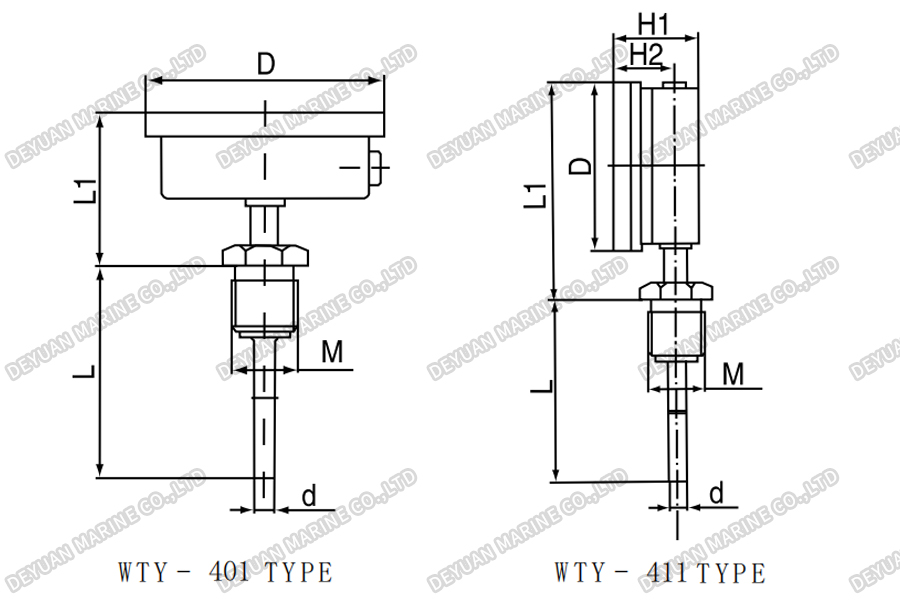

| Model | dial dia. D(mm) | Measure range(C) | Scale(C) | Accuracy | Bulb dia. d(mm) | Insert length L(mm) | Connection(M) | L₁ | H₁ | H₂ |
| WTY-401 | Φ100 | 0~100 0~120 0~150 0~200 | 2 | 1.5 | Φ12(Single) Φ15(Double) | 40 75 100 150 200 250 300 | M27X2 G3/4” | 100 | - | - |
| WTY-411 | 0~300 | 5 | 230 | 38 | 25 | |||||
| 0~400 0~500 0~600 50~650 | 10 | |||||||||
| Remote measuring technical specification refers to 31l and 411 types,length of capillary is 1~4m(option),note the product model and dimension of L,M when youl order the products.If you have special requimment please contact us. | ||||||||||
