Product Description

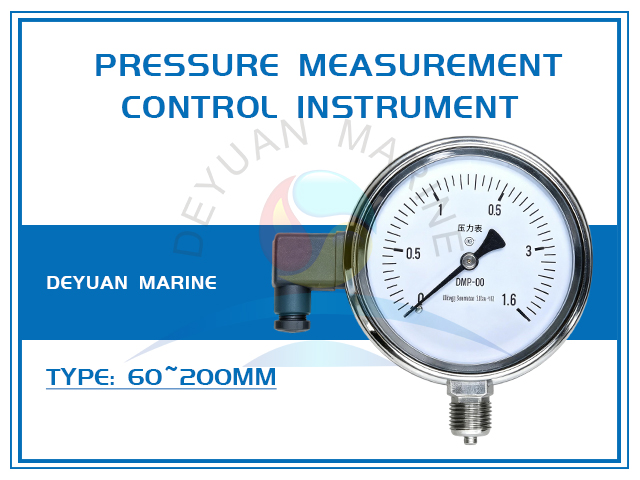

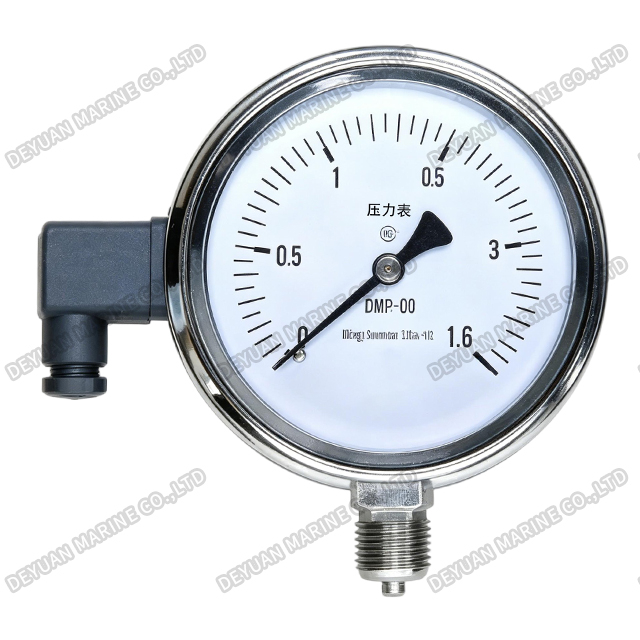

Marine Pressure Measurement Control Instrument
Product Introduction:
The Marine Pressure Measurement Control Instrument is a rugged and reliable device designed for accurate pressure sensing, display, and control in marine environments. It is widely used onboard ships and offshore platforms to monitor fluids such as seawater, fresh water, fuel oil, lubricating oil, compressed air, and steam.
This instrument combines pressure measurement with integrated control functions, providing both local indication and switch outputs for alarm or shutdown actions when pressure deviates from set limits.
How It Works:
The instrument senses pressure through a Bourdon tube, diaphragm, or electronic pressure sensor, converts the mechanical deflection into a readable value (analog dial or digital display), and triggers internal micro-switches or relays when preset pressure thresholds are reached. These switch signals can be sent to alarm panels, engine control rooms, or safety shutdown systems.
Technical Specifications:
| NO. | Product | Medium | Accuracy | Rating |
| 1 | YC Type Pressure Gauge | Gas/Liquid | 1.6Grade/2.5Grade | / |
| 2 | YZB TypePressure Gauge Combine Panel | / | / | IP54~IP65 |
| 3 | Special Pressure Gauge | / | 1.6Grade/2.5Grade | / |
| 4 | YC-M Type Diaphragm Sealed Pressure Gauge | Liquid | 1.6Grade/2.5Grade | / |
| 5 | YSZK Type Pressure Transmitter | Gas, Liquid | ±0.5 %FS | IP66 |
| 6 | YSZK Type Cabin Pressure Transmitter | Gas, Liquid | ±1.0%F.S / ±0.5%F.S | IP56 |
| 7 | YSZK-01L Pressure Type Level Transmitter | / | ±0.5%F.S. | IP66/IP68 |
| 8 | YJK Type Marine Pressure Controller | Gas, Liquid | / | / |
| 9 | YWK-50-C Pressure Controller | Gas, Liquid,Steam | / | / |
| 10 | YPK-03-C Pressure Controller | Water, Oil, Gas And Steam | ±0.02/±0.04/±0.1 | / |
| 11 | CXK-60 Type Pressure Annunciator | Freshwater, Seawater, Oil | / | IP68 |
Advantages:
*Combines measurement and control in one instrument (reduces panel space).
*No external power required for mechanical versions (intrinsically safe).
*Direct switching of alarms, pumps, or solenoid valves (up to AC 380V / 3A).
*Easy field adjustment of setpoints (adjustable screws or keypad).
*Long service life with minimal maintenance.
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
