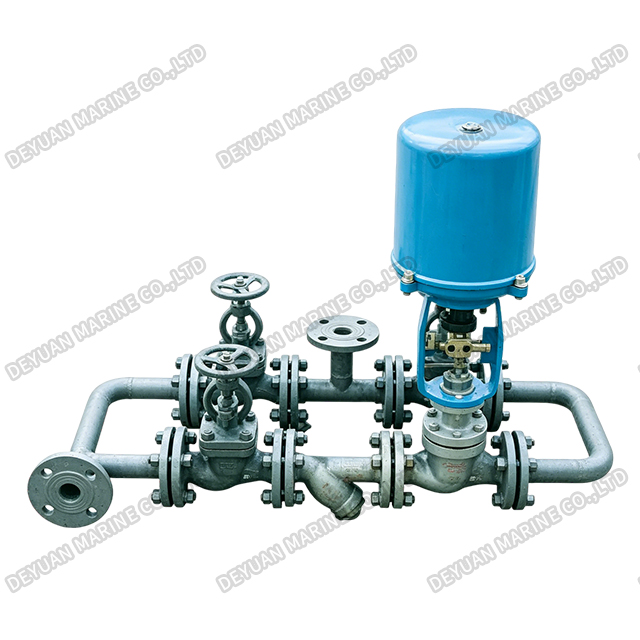

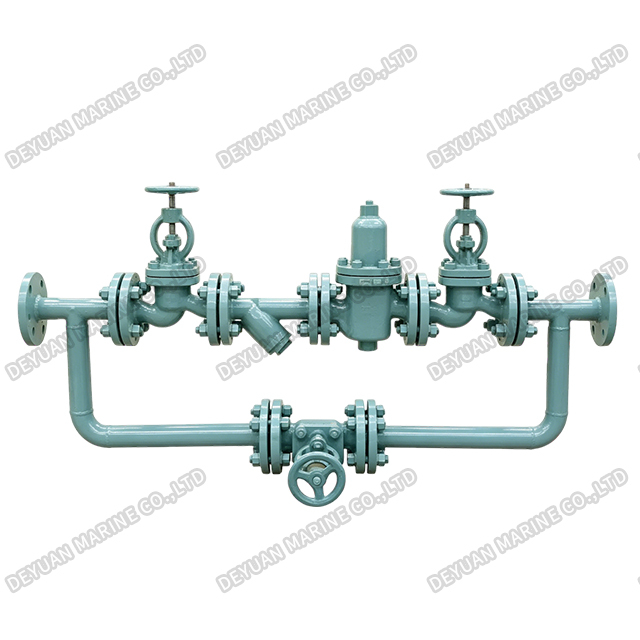

WTFK Temperature Regulating Valve Unit
Product Introduction:
The Marine Temperature Regulating Valve Unit is a self-operated, mechanical temperature control system designed for marine engine rooms and auxiliary systems. It integrates a temperature sensor (thermal bulb), a capillary tube, and a control valve into a single unit. Without requiring any external power or compressed air, it automatically maintains fluid temperature at a preset value by mixing hot and cold media or regulating heating/cooling flow. This unit is ideal for harsh marine environments where reliability and simplicity are paramount.
WTFK temperature regulating valve unit consists of temperature regulator, regulating valve, filter, emergency shut-off valve, bypass valve, flange and other components. It is applicable to the heat exchanger, pre-heating fuel and central heating to control temperature in ship-manufacturing, chemical and other industries.
Main Technical Specification:
| Self-powered type temperature regulating unit | |
| Nominal diameter (DN) | 20, 25, 32, 40, 50 mm |
| Nominal pressure (PN) | 1.6MPa |
| Temperature regulated range | 0~120℃（optional） |
| Medium | steam, thermal oil, thermal water |
| Over temperature safety range | ≤ 40℃ |
| Response time | ≤ 130S |
| Action sensitivity | ≤ ±2℃ |
| Electric type temperature regulating unit | |
| Nominal diameter (DN) | 20, 25, 32, 40, 50 mm |
| Nominal pressure (PN) | 1.6MPa |
| Temperature regulated range | 0~120℃（optional） |
| Medium | steam, thermal water |
| Power supply | AC220V 50Hz |
| Control signal | 1~5V, 4~20mA |
| Control speed | 2.1mm/s |
| Model | Nominal diameter DN (mm) | medium | medium Steam、thermal water | Leakage (Kvs%) | ||
| Name of medium | Temperature of medium (℃) | |||||
| flow coefficient Kvs(m³h) | Maximum pressure difference (MPa) | |||||
| WTFK-□20□ | 20 | Steam、thermal water (hot oil) | 170℃ | 5 | 0.6 | ≤0.05% |
| WTFK-□25□ | 25 | 8 | 0.47 | |||
| WTFK-□32□ | 32 | 12 | 1.2 | |||
| WTFK-□40□ | 40 | 20 | 0.82 | |||
| WTFK-□50□ | 50 | 32 | 0.58 | |||

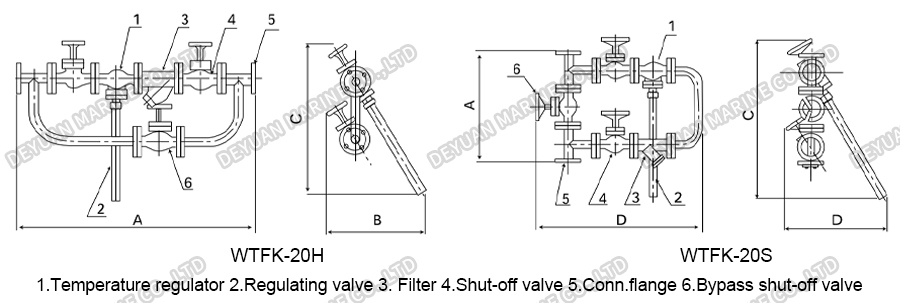

Outline Dimension:
| Model | A | B | C | D |
| WTFK-□20H | 900 | 360 | 570 | |
| WTFK-□25H | 900 | 365 | 575 | |
| WTFK-□32H | 1050 | 450 | 640 | |
| WTFK-□40H | 1250 | 470 | 680 | |
| WTFK-□50H | 1400 | 500 | 700 | |
| WTFK-□20D | 450 | 680 | 570 | 680 |
| WTFK-□25D | 490 | 710 | 575 | 710 |
| WTFK-□32D | 590 | 905 | 640 | 905 |
| WTFK-□40D | 610 | 1080 | 680 | 1060 |
| WTFK-□50D | 630 | 1100 | 700 | 1160 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
