Product Description

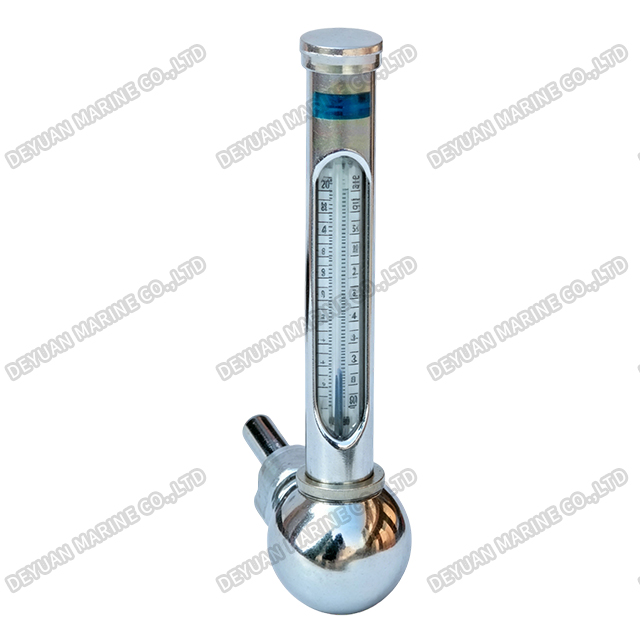

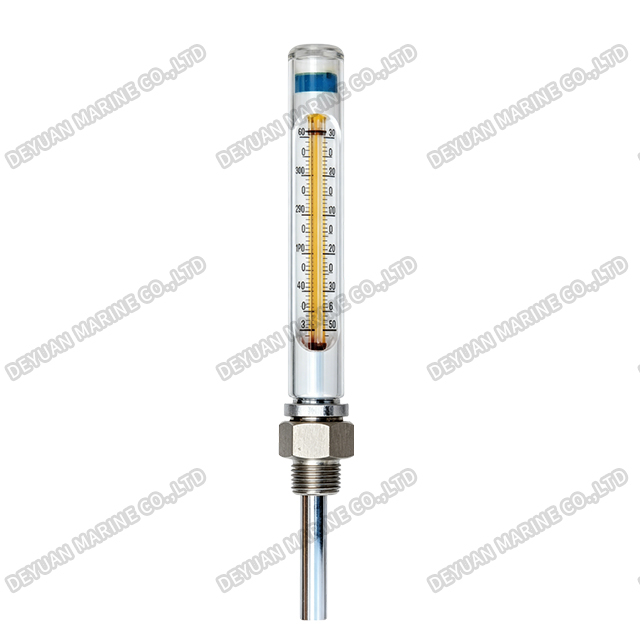

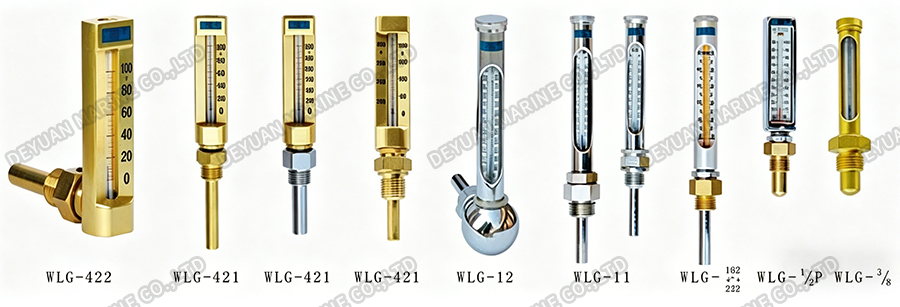

WLG Type Metallic Protector Thermometer
Product Introduction:
The Marine Metallic Protector Thermometer is a rugged, direct-reading temperature measurement instrument designed for shipboard applications. It consists of a precision glass thermometer encased within a durable metallic protection tube . This robust construction safeguards the thermometer against mechanical damage, vibration, and corrosion commonly encountered in marine environments.
Metallic protector thermometer consists of glass thermometer and metallic protector. It is used to measure medium temperature of liquid, gas of tank and pipeline in ship and other industrial equipment.
Main Technical Specification:

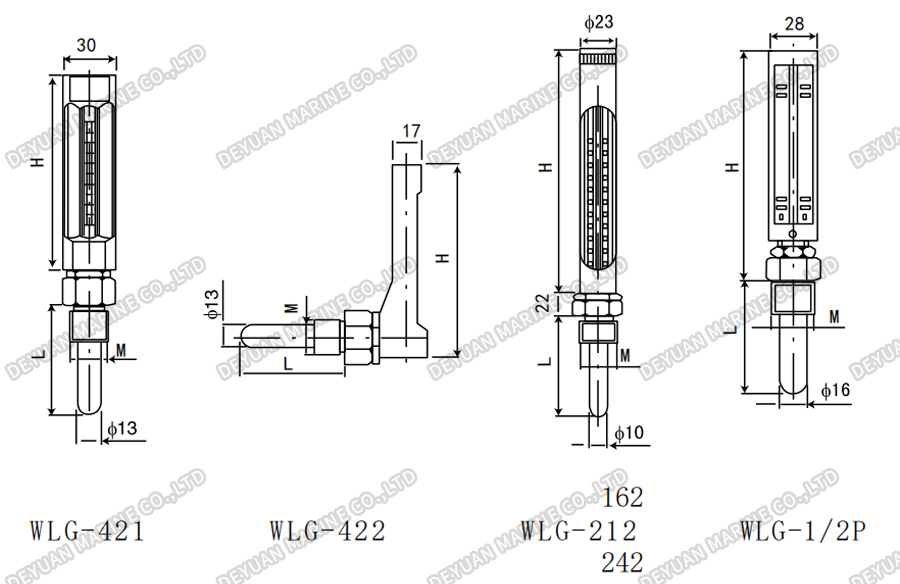

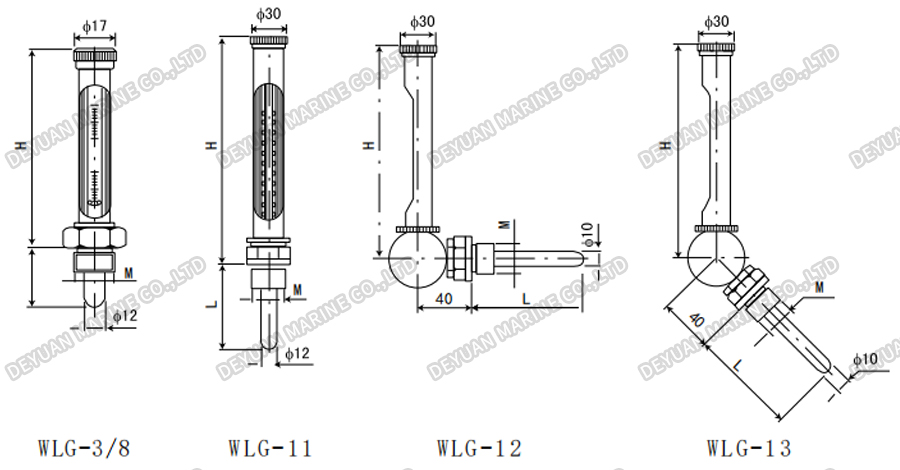

| Measuring range(℃) | Temp.sensing Liquid | Model | Nominal Length Dimension(mm) | Connector Dimension(M) | |
| Upward length(H) | Downward length(L) | ||||
| -50~+50 -30~+50 -30~+100 -20~+100 -30~+160 0~50 0~100 0~150 0~200 0~300 0~350 0~400 0~450 0~500 0~600 | Organic liquid Mercury(Hg) | WLG-11-C WLG-12-C WLG-13-C | 130±2 150±2 200±2 | 25 30 40 60 80 100 120 160 200 | G1/2" G3/4” M20x1.5 M27x2 |
| WLG-421-C WLG-422-C WLG-423-C | 110±2 150±2 200±2 | ||||
| 0~100 0~150 0~200 | Organicliquid | WLG-1/2P-C | 110 | 40 | G1/2" |
| WLG-1/2PL-C | 110 | 100 | G1/2" | ||
| WLG-3/8-C | 70 | 25 | G3/8" | ||
| 0~500 0~600 | Mercury(Hg) | WLG-162-C | 162 | 95 | G1/2" |
| WLG-212-C | 212 | 125 | G1/2" | ||
| WLG-242-C | 242 | 95 | G1/2" | ||
| Measuring accuracy:±1~2 scale | When other conditions are required please consult us | ||||
